產品說明 :
- 四針雙鏈式環縫筒車。
- 基本型，以面線（針線）與底線（勾針線）結合成為線跡，可選配附件以進行多種樣式車縫。
- 適用於短褲、運動短褲等褲頭上鬆緊帶用縫紉機。
- 平鬆緊帶、環狀鬆緊帶均可使用。
| 04 |  |
 |
 |
 |
 |
 |
 |
選配 |
|---|---|---|---|---|---|---|---|---|
| * MT4504P-064-032 | 4 | 8 | (Max. 57.2mm) | 1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |

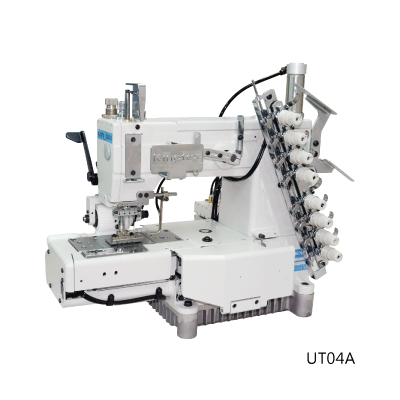

| MT4504P-064 | 4 | 8 | 3/4” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD UT04A |
| MT4504P-085 | 4 | 8 | 1” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD UT04B |
| MT4504P-095 | 4 | 8 | 1-1/8” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD UT04C |
| MT4504P-106 | 4 | 8 | 1-1/4” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |
| MT4504P-127 | 4 | 8 | 1-1/2” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD UT04S |
| MT4504P-048-191 | 4 | 8 | 3/16-3/4-3/16” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |
| MT4504P-048-254 | 4 | 8 | 3/16-1-3/16” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |
| MT4504P-064-127 | 4 | 8 | 1/4-1/2-1/4” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |
| MT4504P-064-191 | 4 | 8 | 1/4-3/4-1/4” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD |
| MT4504P-064-254 | 4 | 8 | 1/4-1-1/4” |
1.4~3.6 | 12 | #11~#14 | 4000 | AL004 PMD UT04S1 |
* 13針規格組，配 4 組針與結線鈎
