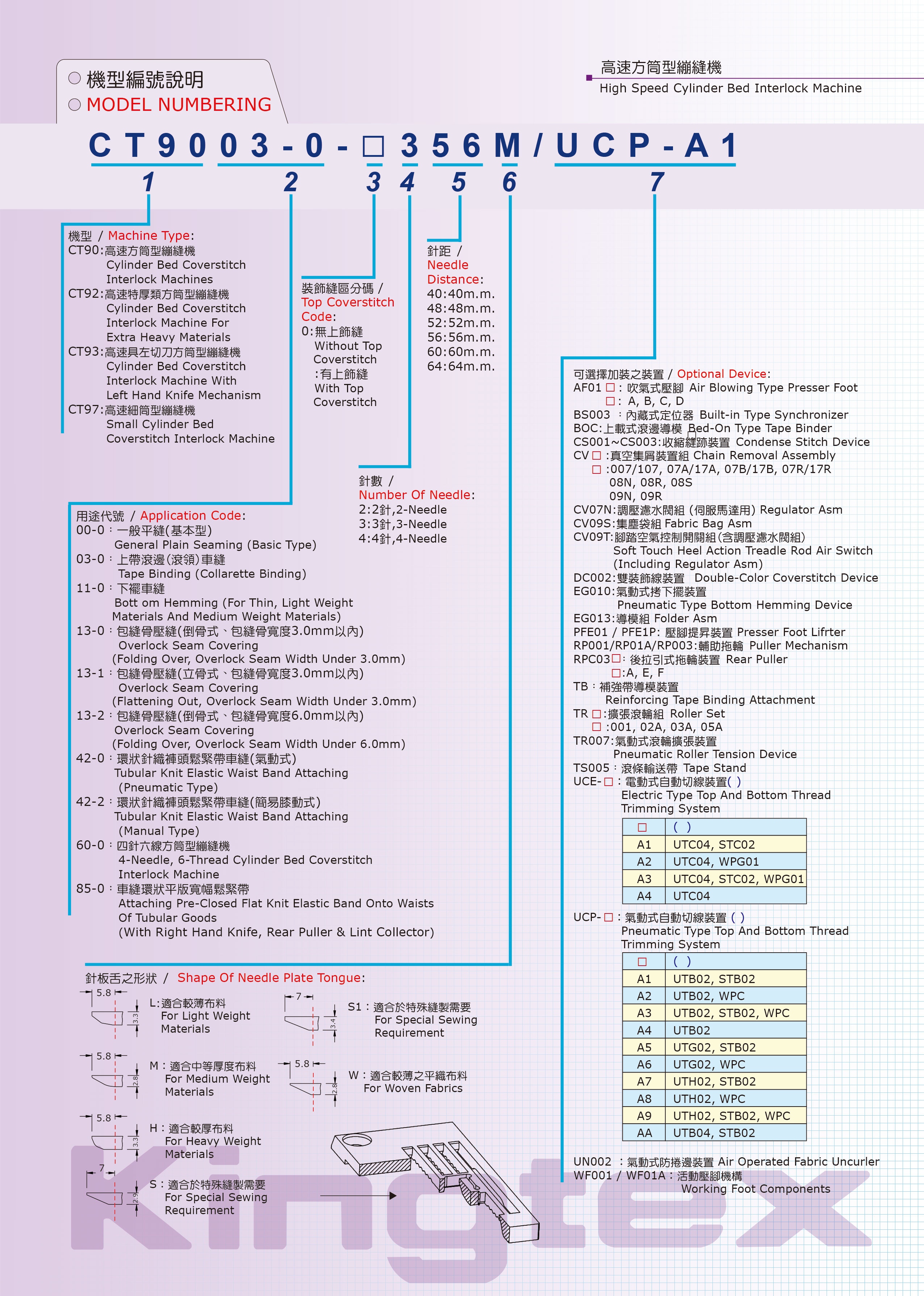

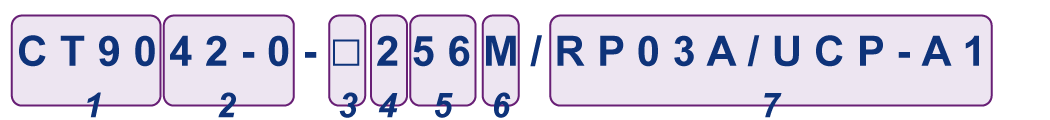

1   Machine Type :

CT90 : Standard Cylinder Bed Coverstitch Interlock Machines
CT92 : Cylinder Bed Coverstitch Interlock Machine For Extra Heavy Materials
CT93 : Cylinder Bed Coverstitch Interlock Machine With Left Hand Knife Mechanism

2   Application Code :

00-0 ：General Plain Seaming (Basic Type)
03-0 : Tape Binding (Collarette Binding)
11-0 ：Bottom Hemming (For Thin, Light Weight Materials And Medium Weight Materials)
13-0 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 3.0mm)
13-1 ：Overlock Seam Covering (Flattening Out, Overlock Seam Width Under 3.0mm)
13-2 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 6.0mm
42-0 ：Tubular Knit Elastic Waist Band Attaching (Pneumatic Type)
42-2 ：Tubular Knit Elastic Waist Band Attaching (Manual Type)
60-0 ：4-Needle, 6-Thread Cylinder Bed Coverstitch Interlock Machine
85-0 ：Attaching Pre-Closed Flat Knit Elastic Band Onto Waists Of Tubular Goods (With Right Hand Knife,Rear Puller & Lint Collector)

3   Top Coverstitch Code :

0 : Without Top Coverstitch
□ : With Top Coverstitch

4   Number Of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

5   Needle Distance :

40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

6   Shape Of Needle Plate Tongue :

L : For Light Weight Materials

M ：For Medium Weight Materials

H ：For Heavy Weight Materials

S ：For Special Sewing Requirement

S1 ：For Special Sewing Requirement

W ：For Woven Fabrics

7   Optional Device :

CS001~003 ：Condense Stitch Device
RPC03 □ ：Rear Puller
UCP-A1 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB02, STB02)
UCP-A2 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB02, WPC)
UCP-A3 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB02, STB02, WPC)
UCE-A1 ：Electric Type Top And Bottom Thread Trimming System (UTC04, STC02)
UCE-A2 ：Electric Type Top And Bottom Thread Trimming System (UTC04, WPG)
UCE-A3 ：Electric Type Top And Bottom Thread Trimming System (UTC04, STC02, WPG)
BS003 ：Built-in Type Synchronizer.
TB ：Reinforcing Tape Binding Attachment
BOC ：Bed-On Type Tape Binder
