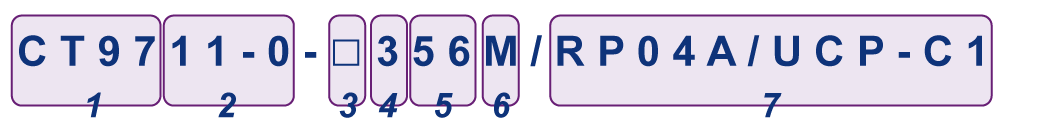

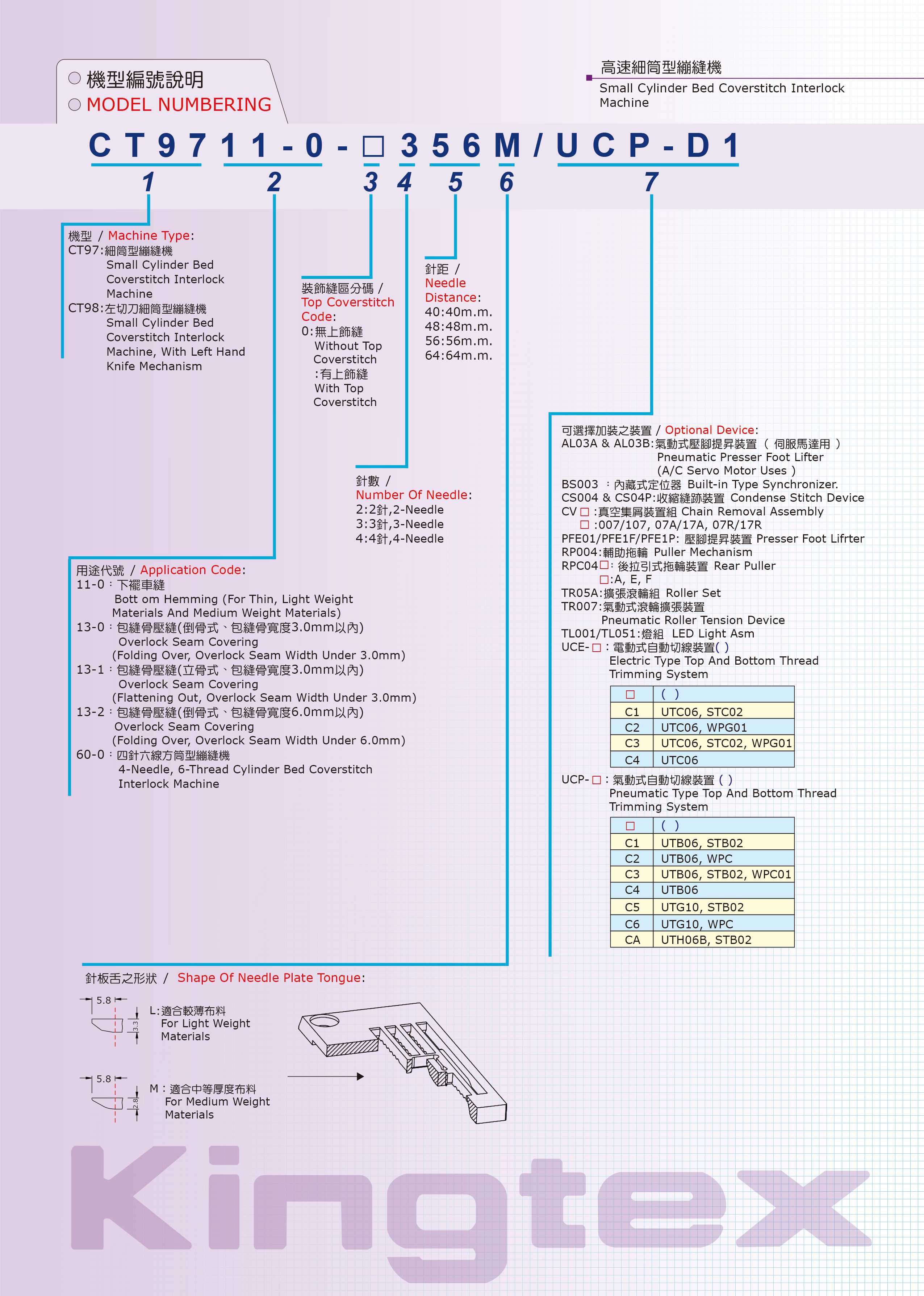

1   Machine Type :

CT97 : Small Cylinder Bed Coverstitch Interlock Machine.

2   Application Code :

11-0 ：Bottom Hemming (For Thin, Light Weight Materials And Medium Weight Materials)
13-0 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 3.0mm)
13-1 ：Overlock Seam Covering (Flattening Out, Overlock Seam Width Under 3.0mm)
13-2 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 6.0mm
60-0 ：4-Needle, 6-Thread Cylinder Bed Coverstitch Interlock Machine

3   Top Coverstitch Code :

0 : Without Top Coverstitch
□ : With Top Coverstitch

4   Number Of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

5   Needle Distance :

40 : 40m.m.
48 : 48m.m.
56 : 56m.m.
64 : 64m.m.

6   Shape Of Needle Plate Tongue :

L : For Light Weight Materials

M ：For Medium Weight Materials

7   Optional Device :

CS004 : Condense Stitch Device
RPC04□ ：Rear Puller
UCP-C1：Pneumatic Type Top And Bottom Thread Trimming System(UTB06, STB02)
UCP-C2：Pneumatic Type Top And Bottom Thread Trimming System(UTB06, WPC)
UCP-C3：Pneumatic Type Top And Bottom Thread Trimming System(UTB06, STB02, WPC)
UCP-C4：Pneumatic Type Top And Bottom Thread Trimming System(UTB06)
UCE-C1：Electric Type Top And Bottom Thread Trimming System(UTC06, STC02)
UCE-C2：Electric Type Top And Bottom Thread Trimming System(UTC06, WPG)
UCE-C3：Electric Type Top And Bottom Thread Trimming System(UTC06, STC02, WPG01
UCE-C4：Electric Type Top And Bottom Thread Trimming System(UTC06)
BS003 ：Built-in Type Synchronizer.
PFE01 ：Electric Type Foot Lifter .
