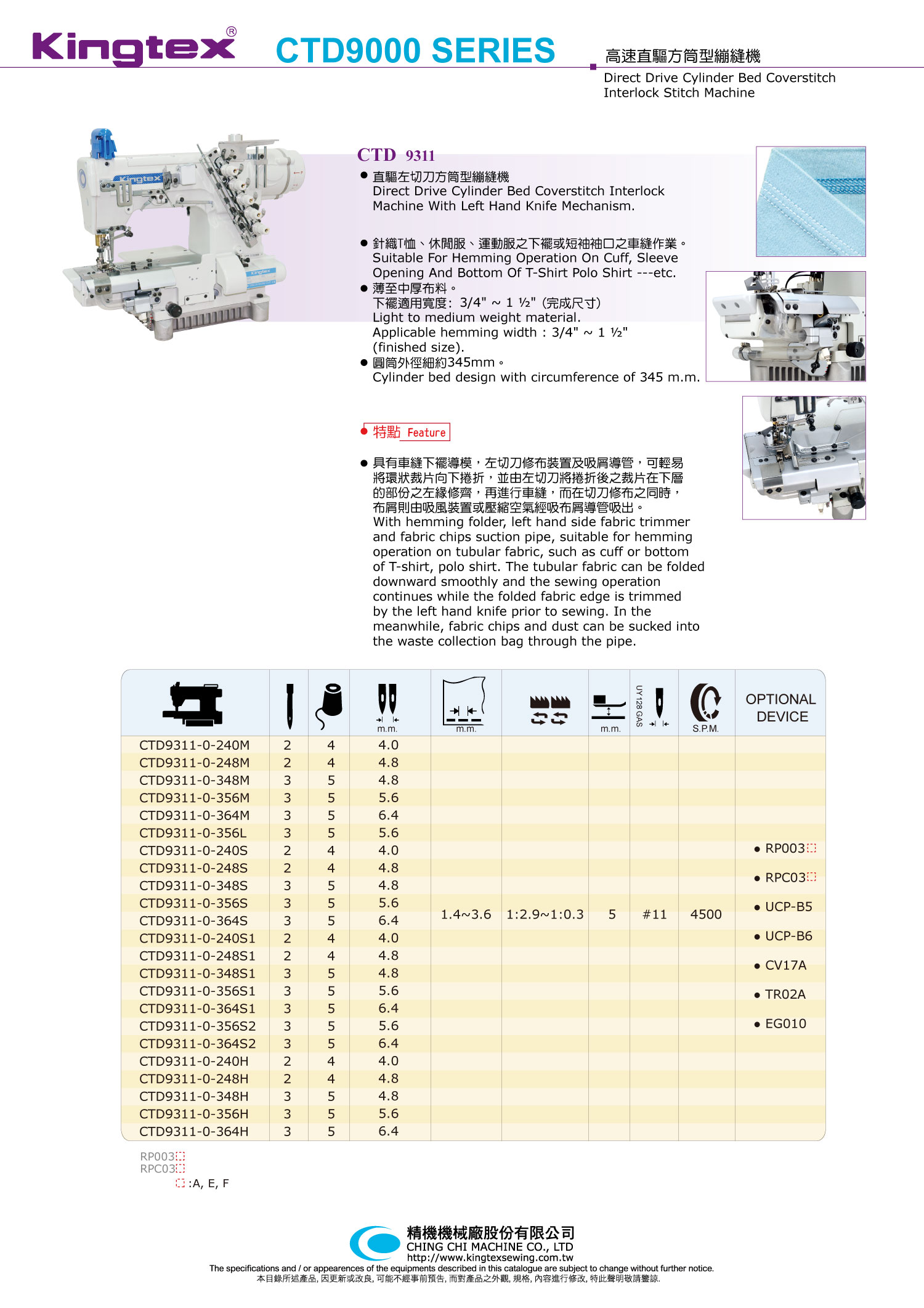

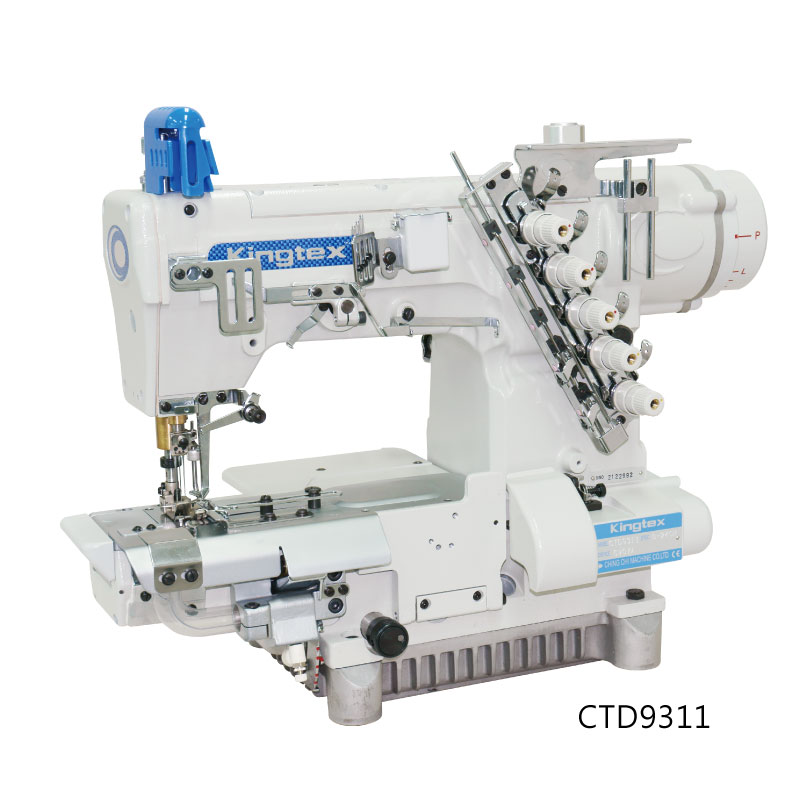

CTD9311
Direct Drive Cylinder Bed Coverstitch Interlock Machine With Left Hand Knife Mechanism

Application Description :
Suitable For Hemming Operation On Cuff, Sleeve Opening And Bottom Of T-Shirt Polo Shirt ---etc.
Light to medium weight material.
Cylinder bed design with circumference of 345 m.m.
Applicable hemming width : 3/4" ~ 1 ½" (finished size).
With hemming folder, left hand side fabric trimmer and fabric chips suction pipe, suitable for hemming operation on tubular fabric, such as cuff or bottom of T-shirt, polo shirt. The tubular fabric can be folded downward smoothly and the sewing operation continues while the folded fabric edge is trimmed by the left hand knife prior to sewing. In the meanwhile, fabric chips and dust can be sucked into the waste collection bag through the pipe.
Cloth

Feature

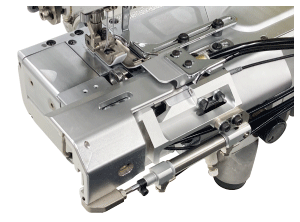

EG010 : Pneumatic Hemming Edge Guide

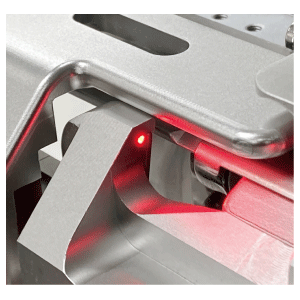

Euqipped With optical sensor for accurate sewing.
