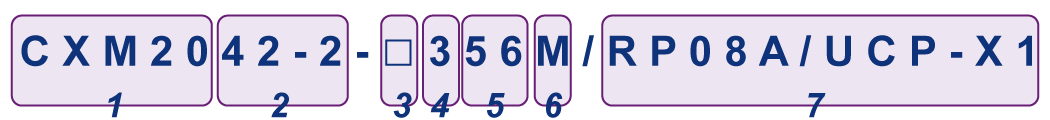

1   Machine Type :

CXM20 : Mechatronics Direct Drive Type High Speed Cylinder Bed Coverstitch Interlock Machine
CXM23 : Mechatronics Direct Drive Cylinder Type Bed Coverstitch Interlock Machine With Left Hand Knife Mechanism
CXN20 : Mechatronics Type, High Speed, Direct Drive, Top Feed Cylinder Bed Interlock Machine
CXN23 : Mechatronics Direct Drive Cylinder Type Bed Coverstitch Interlock Machine With Left Hand Knife Mechanism
CTN91 : Mechatronics Type, High Speed, Direct Drive, Top Feed, Extra Small Cylinder Bed Interlock Machine

2   Application Code :

00-0 ：General Plain Seaming (Basic Type)
11-0 ：Bottom Hemming (For Thin, Light Weight Materials And Medium Weight Materials)
13-0 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 3.0mm)
13-1 ：Overlock Seam Covering (Flattening Out, Overlock Seam Width Under 3.0mm)
13-2 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 6.0mm
42-0 ：Tubular Knit Elastic Waist Band Attaching (Pneumatic Type)
42-2 ：Tubular Knit Elastic Waist Band Attaching (Manual Type)
60-0 ：4-Needle, 6-Thread Cylinder Bed Coverstitch Interlock Machine
85-0 ：Attaching Pre-Closed Flat Knit Elastic Band Onto Waists Of Tubular Goods (With Right Hand Knife,Rear Puller & Lint Collector)
A3-0 ：3 in one type : folding over type for seam covering, bottom hemming and binding tape applications. (CXM20A3)

3   Top Coverstitch Code :

0 : Without Top Coverstitch
□ : With Top Coverstitch

4   Number Of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

5   Needle Distance :

40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

6   Shape Of Needle Plate Tongue :

L : For Light Weight Materials

M ：For Medium Weight Materials

H ：For Heavy Weight Materials

S ：For Special Sewing Requirement

S1 ：For Special Sewing Requirement

W ：For Woven Fabrics

7   Optional Device :

AF01□ ：Air Blowing Type Presser Foot
    □ : A, B, C, D
AL015: Pneumatic Presser Foot Lifter
BOC ：Bed-On Type Tape Binder
CS005 & CS05P: Condense Stitch Device
CV07A / CV17A : Chain Removal Assembly
PFE02 / PFE2P / PFE2F: Presser Foot Lifrter
RP008: Puller Mechanism
RPC08 □ ： Rear Puller
    □ :A, E, F
TB ：Reinforcing Tape Binding Attachment
TCS32：Pneumatic Type Tape Cutting Device
TR □ : Roller Set
  □ :03A, 05A, 06A
TR007: Pneumatic Roller Tension Device
TS008: Tape Stand
CXM2000 series :
UCP-X1 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09, STB03)
UCP-X2 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09, WPC02)
UCP-X3 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09, STB03, WPC02)
UCP-X4 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09)
UCP-X5 ：Pneumatic Type Top And Bottom Thread Trimming System (UTG09, STB03)
UCP-X6 ：Pneumatic Type Top And Bottom Thread Trimming System (UTG09, WPC02)
UCP-X7 ：Pneumatic Type Top And Bottom Thread Trimming System (UTH09, STB03)
UCP-X8 ：Pneumatic Type Top And Bottom Thread Trimming System (UTH09, WPC02)
UCP-X9 ：Pneumatic Type Top And Bottom Thread Trimming System (UTH09, STB03, WPC02)
UCP-XA ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09B, STB03)
UCP-XC ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09B, STB03, WPC02)
UCE-X1 ：Electric Type Top And Bottom Thread Trimming System (UTC09, STC03)
UCE-X2 ：Electric Type Top And Bottom Thread Trimming System (UTC09, WPG01)
UCE-X3 ：Electric Type Top And Bottom Thread Trimming System (UTC09, STC03, WPG01)
UCE-X4 ：Electric Type Top And Bottom Thread Trimming System (UTC09)

CXN2000 series :
UCP-FX1 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB09F, STB04)
UCP-FX2 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB09F, WPC03)
UCP-FX3 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB09F, STB04, WPC03)
UCP-FX4 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB09F)
UCP-FX5 ：Pneumatic Type Top And Bottom Thread Trimming System(UTG09F, STB04)
UCP-FX6 ：Pneumatic Type Top And Bottom Thread Trimming System(UTG09F, WPC03)
UCP-FX7 ：Pneumatic Type Top And Bottom Thread Trimming System(UTH09F, STB04)
UCP-FX8 ：Pneumatic Type Top And Bottom Thread Trimming System(UTH09F, WPC03)
UCP-FX9 ：Pneumatic Type Top And Bottom Thread Trimming System(UTH09F, STB04, WPC03)
UCP-FXA ：Pneumatic Type Top And Bottom Thread Trimming System(UTB09BF, STB04)
UCP-FXC ：Pneumatic Type Top And Bottom Thread Trimming System(UTB09BF, STB04, WPC03)
UCE-FX1 ：Electric Type Top And Bottom Thread Trimming System (UTC09F, STC04)
UCE-FX2 ：Electric Type Top And Bottom Thread Trimming System (UTC09F, WPG02)
UCE-FX3 ：Electric Type Top And Bottom Thread Trimming System (UTC09F, STC04, WPG02)
UCE-FX4 ：Electric Type Top And Bottom Thread Trimming System (UTC09F)

CTN9111 series :
UCP-FS1 ：Pneumatic Type Top And Bottom Thread Trimming System (UTB10F, STB05)
UCP-FS2 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB10F, WPC04)
UCP-FS3 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB10F, STB05, WPC04)
UCP-FS4 ：Pneumatic Type Top And Bottom Thread Trimming System(UTB10F)
UCE-FS1 ：Electric Type Top And Bottom Thread Trimming System (UTC10F, STC05)
UCE-FS2 ：Electric Type Top And Bottom Thread Trimming System (UTC10F, WPG02)
UCE-FS3 ：Electric Type Top And Bottom Thread Trimming System (UTC10F, STC05, WPG02)
UCE-FS4 ：Electric Type Top And Bottom Thread Trimming System (UTC10F)
