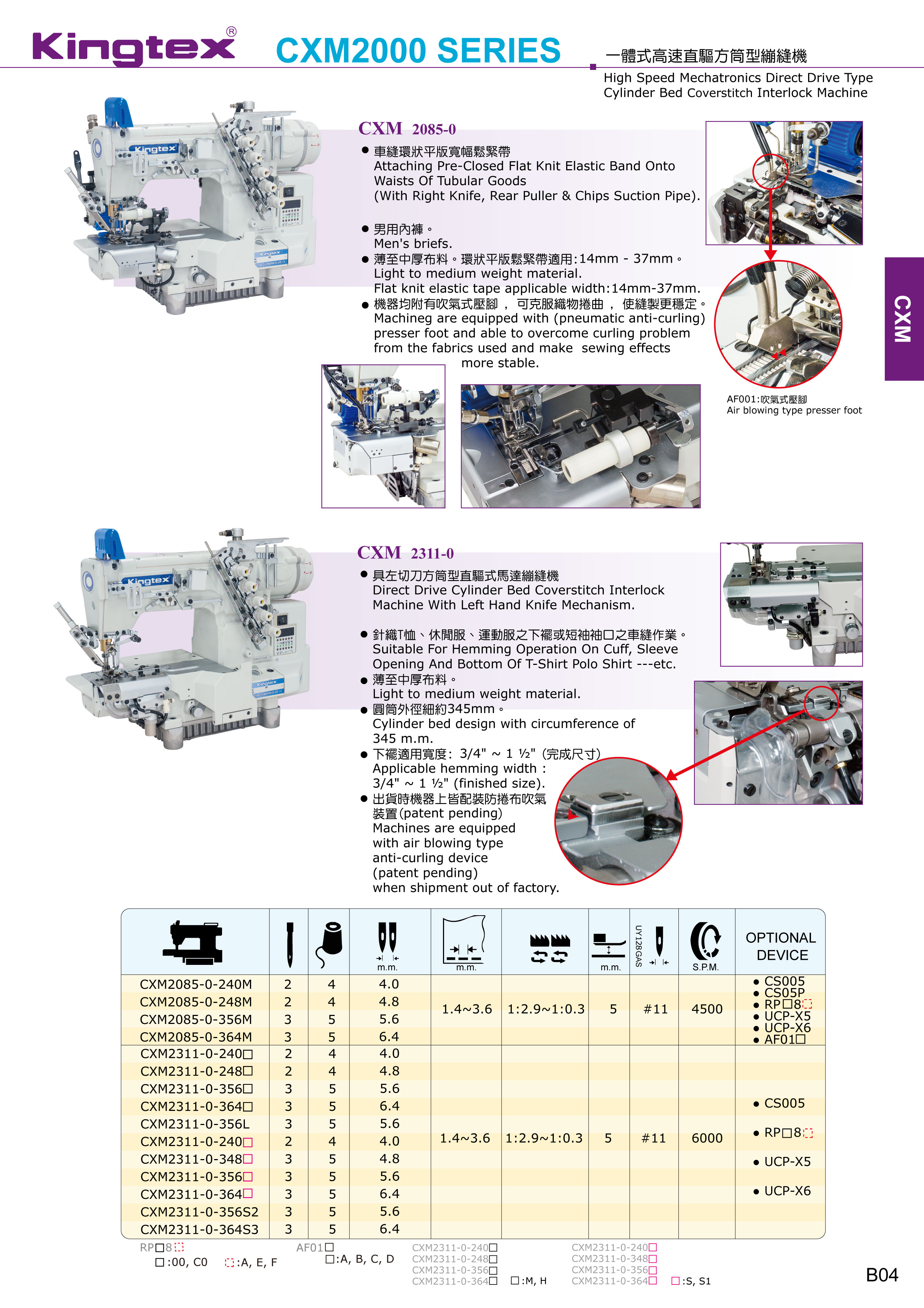

CXM2311
Cylinder Bed Coverstitch Interlock Machine With Left Hand Knife Mechanism.

Application Description :
Suitable For Hemming Operation On Cuff, Sleeve Opening And Bottom Of T-Shirt Polo Shirt ---etc.
Light to medium weight material.
Cylinder bed design with circumference of 345 m.m.
Applicable hemming width : 3/4" ~ 1 ½" (finished size).
With hemming folder, left hand side fabric trimmer and fabric chips suction pipe, suitable for hemming operation on tubular fabric, such as cuff or bottom of T-shirt, polo shirt. The tubular fabric can be folded downward smoothly and the sewing operation continues while the folded fabric edge is trimmed by the left hand knife prior to sewing. In the meanwhile, fabric chips and dust can be sucked into the waste collection bag through the pipe.

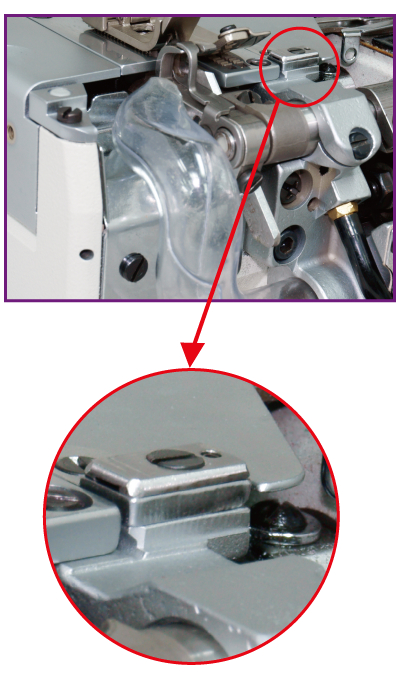

Machines are equipped with air blowing type anti-curling device (patent pending) when shipment out of factory.
Cloth

Feature

Machines are equipped with air blowing type anti-curling device (patent pending) when shipment out of factory.
