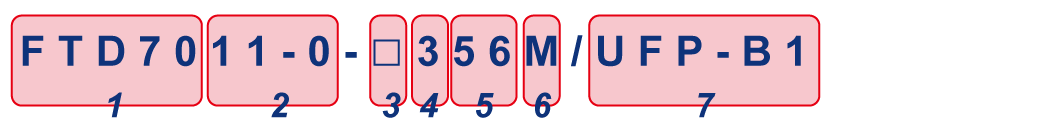

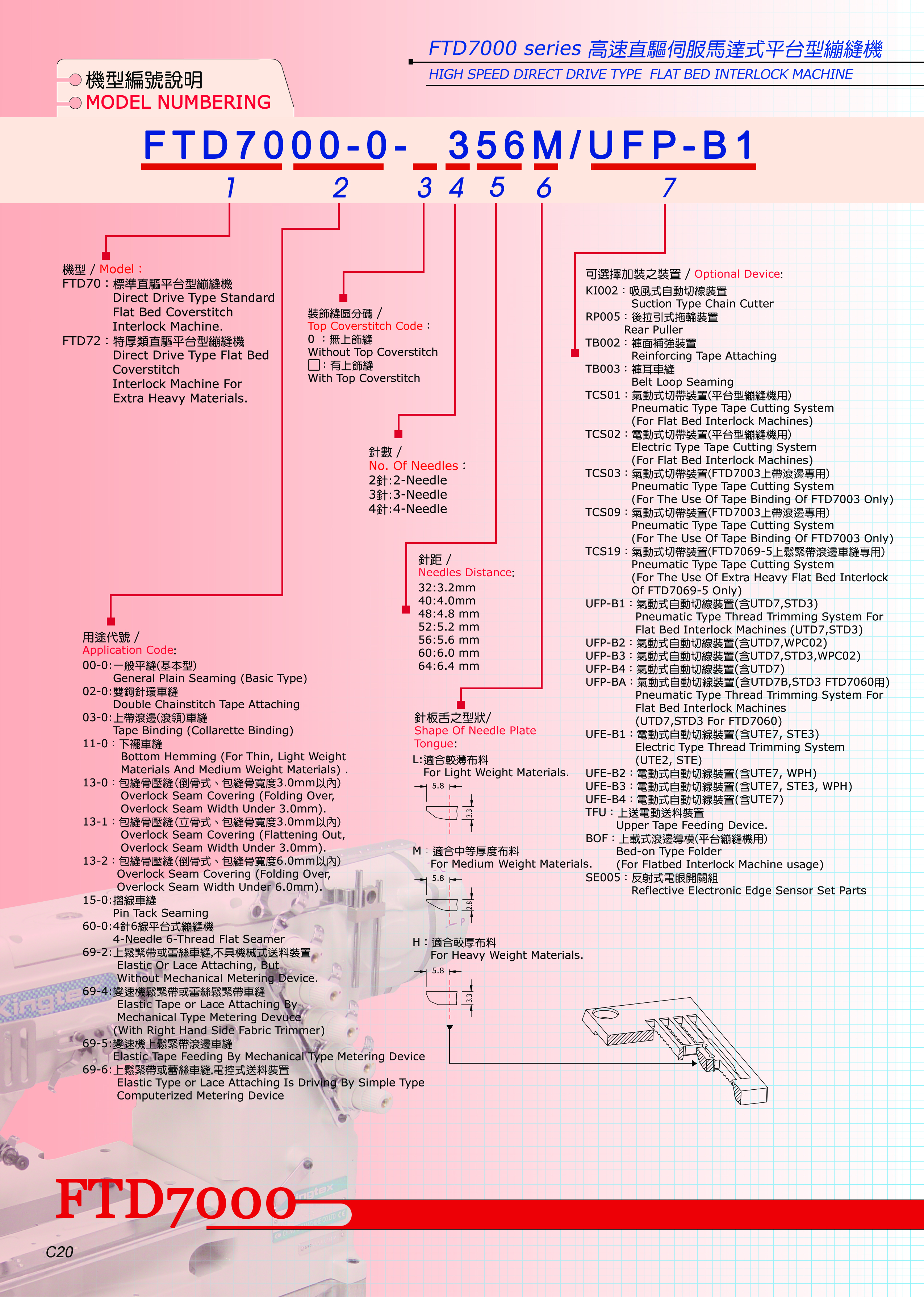

1   Machine Type :

FTD7000 : Direct Drive Type Flat Bed Interlock Machine
FTD7200 : Direct Drive Type Flat Bed Coverstitch Interlock Machine For Heavy Materials.

2   Application Code :

00-0 ：General Plain Seaming (Basic Type)
02-0 : Double Chainstitch Tape Attaching
03-0 : Tape Binding (Collarette Binding)
11-0 ：Bottom Hemming (For Thin, Light Weight Materials )
13-0 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 3.0mm)
13-1 ：Overlock Seam Covering (Flattening Out, Overlock Seam Width Under 3.0mm)
13-2 ：Overlock Seam Covering (Folding Over, Overlock Seam Width Under 6.0mm
15-0 : Pin Tack Seaming
69-0 : Elastic Or Lace Attaching (With Right Hand Side Fabric Trimmer)
69-2 : Elastic Or Lace Attaching, But Without Mechanical Metering Device
69-4 : Elastic Tape or Lace Attaching By Mechanical Type Metering Devuce (With Right Hand Side Fabric Trimmer)
69-5 : Elastic Tape Feeding By Mechanical Type Metering Device
69-6 : Elastic Type or Lace Attaching Is Driving By Simple Type Computerized Metering Device
69-6A : Elastic Tape or Lace Attaching Is Driving By Advance Type Computerized Metering Device With Panel

3   Top Coverstitch Code :

0 : Without Top Coverstitch
□ : With Top Coverstitch

4   Number Of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

5   Needle Distance :

32 : 3.2 mm
40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

6   Shape Of Needle Plate Tongue :

L : For Light Weight Materials

M ：For Medium Weight Materials

H ：For Heavy Weight Materials

7   Optional Device :

KI002 ：uction Type Chain Cutter
RP005 ：Pear Puller
TB002 ：Reinforcing Tape Attaching
TB003 ：Belt Loop Seaming
TCS01 ：Pneumatic Type Tape Cutter(For The Use Of Tape Binding Of FTD7003, FTU7003 Only)
TCS02 ：Electric Type Tape Cutter(For The Use Of Tape Binding Of FTD7003, FTU7003 Only)
TCS03 ：Pneumatic Type Tape Cutter(For The Use Of Tape Binding Of FTD7003 Only)
TCS09 ：Pneumatic Type Tape Cutting System (For The Use Of Tape Binding Of FTD7003, FTD7069-0, FTD7069-2, FTD7069-4, FTD7069-6, FTU7003 Only)
TCS19 ：Pneumatic Type Tape Cutting System (For The Use Of Extra Heavy Flat Bed Interlock Of FTD7069-5 Only)
UFP-B1 : Pneumatic Type Under Bed Thread Trimming System For Cylinder Bed Interlock Machines (UTD2, STD)
UFP-B2 : Pneumatic Type Under Bed Thread Trimming System For Cylinder Bed Interlock Machines (UTD2, WPH)
UFP-B3 : Pneumatic Type Under Bed Thread Trimming System For Cylinder Bed Interlock Machines (UTD2, STD, WPH)
UFP-B4 : Pneumatic Type Under Bed Thread Trimming System For Cylinder Bed Interlock Machines (UTD2)
UFP-BA : Pneumatic Type Under Bed Thread Trimming System For Cylinder Bed Interlock Machines (UTD4, STD)
UFE-B1 ：Electric Under Bed Thread Trimming System (UTE7, STE3)
UFE-B2 ：Electric Under Bed Thread Trimming System (UTE7, WPH)
UFE-B3 ：Electric Under Bed Thread Trimming System (UTE7, STE3, WPH)
UFE-B4 ：Electric Under Bed Thread Trimming System (UTE7)
TFU ：Upper Tape Feeding Device.
BOF ：Bed-on Type Folder (For Flatbed Interlock Machine usage)
SE005 ：Reflective Electronic Edge Sensor Set Parts
