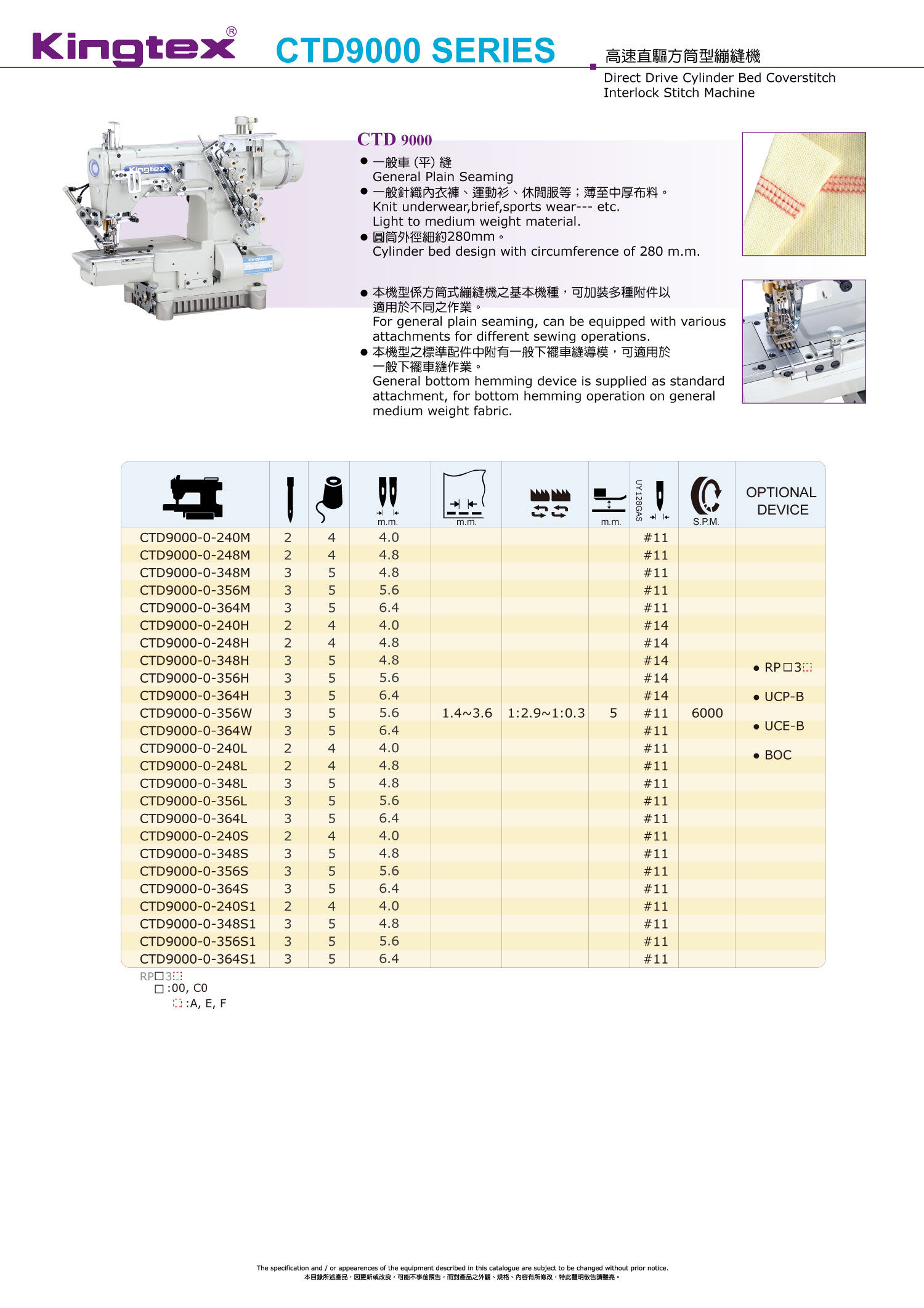

產品說明 :
- 一般車縫。
- 本機型為筒型繃縫機之基本款，筒嘴週長280mm，可加裝多種附件以適用於不同之車縫作業。
- 本機型之標準配件中附有一般下襬車縫導模，可適用於一般下襬車縫作業。
- 標準機型為CT9000, CTD9000。
- 針棒高行程機型為CT9200, CTD9200 適用厚布料車縫。
| 00 |  |
 |
 |
 |
 |
 |
 |
 |
選配 |
|---|---|---|---|---|---|---|---|---|---|
| CT9000-0-240M | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | UCP-A UCE-A RP03□ |
| CT9000-0-348M | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-356M | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-364M | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-240H | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CT9000-0-348H | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CT9000-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CT9000-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CT9000-0-356W | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-364W | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-240L | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-348L | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-356L | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-364L | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-240S | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-348S | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-356S | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-364S | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-240S1 | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-348S1 | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-356S1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9000-0-364S1 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CT9200-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CT9200-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9000-0-240M | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | UCP-B UCE-B RP03□ |
| CTD9000-0-348M | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-356M | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-364M | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-240H | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9000-0-348H | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9000-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9000-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9000-0-356W | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-364W | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-240L | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-348L | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-356L | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-364L | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-240S | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-348S | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-356S | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-364S | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-240S1 | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-348S1 | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-356S1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9000-0-364S1 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 6000 | |
| CTD9200-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 | |
| CTD9200-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #14 | 6000 |
