產品說明 :
- 直驅小筒/ 下擺/ 左切刀修布邊
- 針織T恤、休閒服、運動服之下襬或短袖袖口之車縫作業。
- 適用薄至中厚布料。
- 具有車縫下襬導模，左切刀修布裝置及吸屑導管，可輕易將環狀裁片 向下捲折，並由左切刀將捲折後之裁片在下層的部份之左緣修齊，再 進行車縫，而在切刀修布之同時，布屑則由吸風裝置或壓縮空氣經吸 布屑導管吸出。
- 圓筒外徑細約260mm，最適合兒童服裝等細口筒狀服裝的暗縫工序。

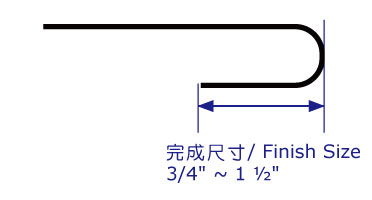

- 下襬適用寬度 : 3/4" ~ 1 ½" (完成尺寸)。
-
 |
 |
 |
 |
 |
 |
 |
 |
 |
選配 |
|---|---|---|---|---|---|---|---|---|---|
| CT9811-0-240M | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 |

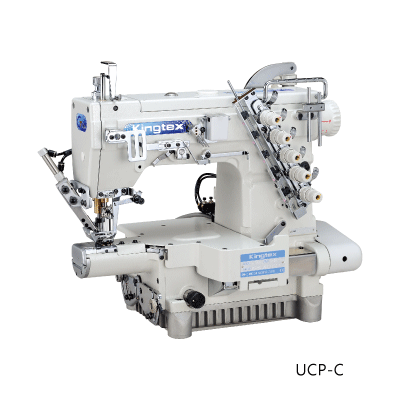

UCP-C5 UCP-C6 TR02A CV |
| CT9811-0-348M | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-356M | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-364M | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-240L | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-348L | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-356L | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-364L | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-240S | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-348S | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-356S | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-364S | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-240S1 | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-348S1 | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-356S1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CT9811-0-364S1 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |

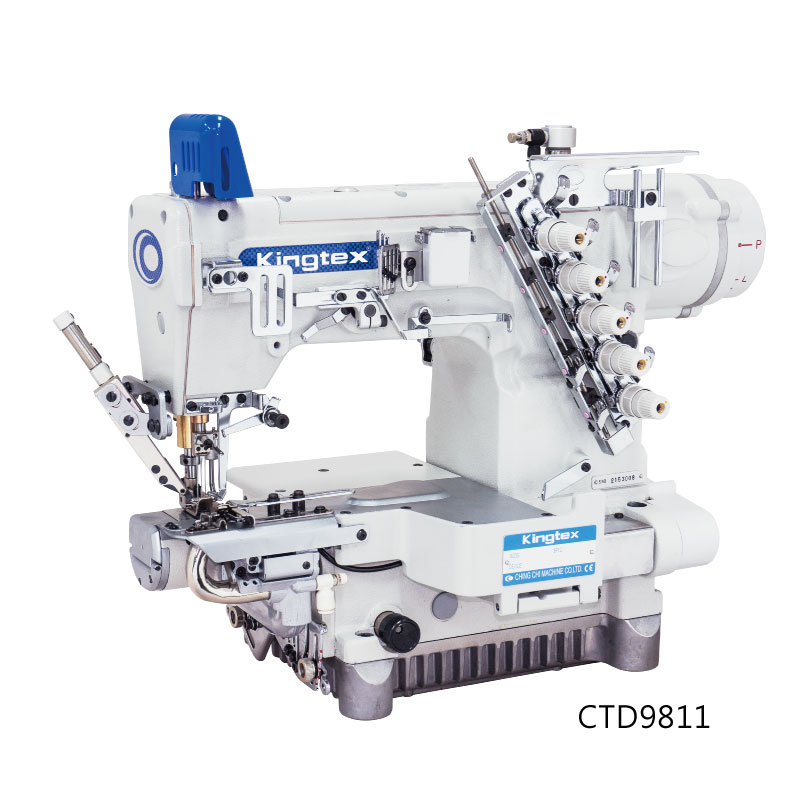

| CTD9811-0-240M | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 |
UCP-D5 UCP-D6 TR02A CV |
| CTD9811-0-348M | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-356M | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-364M | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-240L | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-348L | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-356L | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-364L | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-240S | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-348S | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-356S | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-364S | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-240S1 | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-348S1 | 3 | 5 | 4.8 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-356S1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 | |
| CTD9811-0-364S1 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 5 | #11 | 4500 |
