產品說明 :
- 一體式,直驅,上送,一般車縫。
- 針織內衣褲、運動衫、休閒服等...
- 薄至中厚布料。
- 圓筒外徑細約280mm。
- 本機型係方筒式繃縫機之基本機種，可加裝多種附件以適用於不同之作業。
- 本機型之標準配件中附有一般下襬車縫導模，可適用於一般下襬車縫作業。

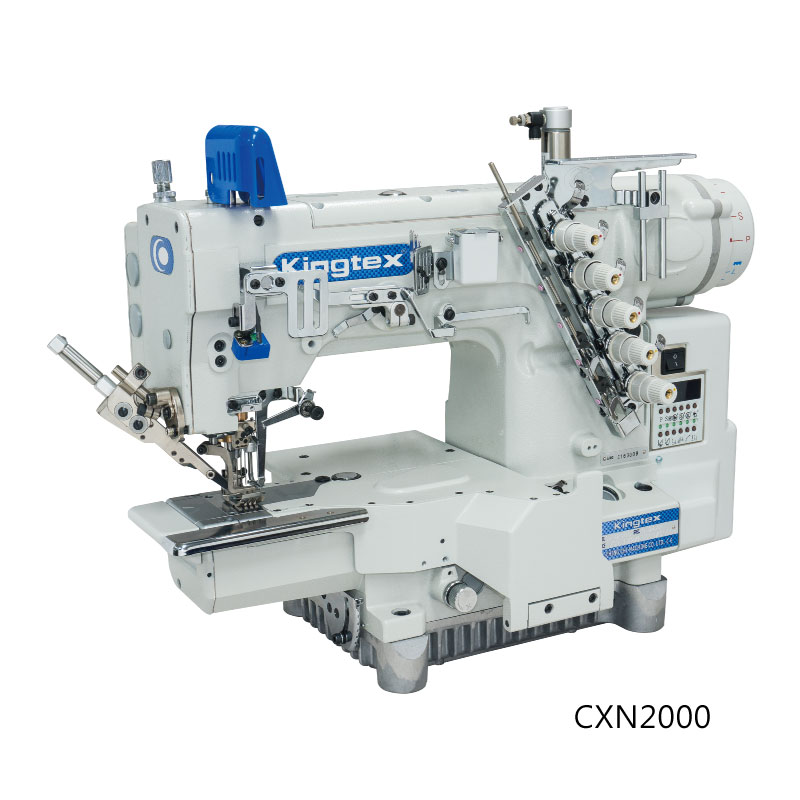

- 標準機型為CXN2000 。
- 針棒高行程機型為CXN2200，適用厚布料車縫。
| 00 |  |
 |
 |
 |
 |
 |
 |
 |
 |
選配 |
|---|---|---|---|---|---|---|---|---|---|---|
| CXN2000-0-356M | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 |

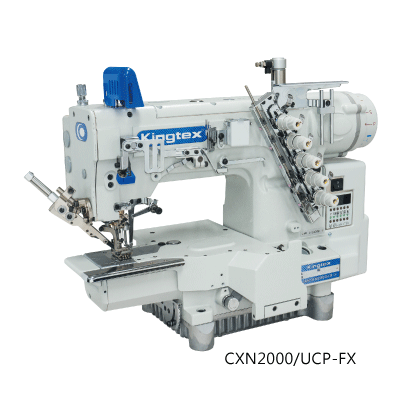

UCP-FX UCE-FX |
| CXN2000-0-364M | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #14 | 6000 | |
| CXN2000-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #14 | 6000 | |
| CXN2000-0-356H1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #14 | 6000 | |
| CXN2000-0-356W | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364W | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356L | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364L | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356S | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364S | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356S1 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364S1 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356S2 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364S2 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-356S3 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2000-0-364S3 | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 6000 | |
| CXN2200-0-356H | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #14 | 6000 | |
| CXN2200-0-364H | 3 | 5 | 6.4 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #14 | 6000 |
