產品說明 :
- 本機型適用於T恤領口，運動褲褲管口之滾邊車縫。
- 03-0 : 標準規格。
- 03-1 : 轉彎。
- 薄至中厚布料。
- 因規格、尺寸繁多，故滾條成形導模並不包含在標準配備之中，須另行訂購，訂購時須註明導模之摺數、入口及出口尺寸)。
| 03 |  |
 |
 |
 |
 |
 |
 |
 |
選配 |
|---|---|---|---|---|---|---|---|---|---|
| FT 7003-0-232M | 2 | 4 | 3.2 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 |
UFP-A UFE-A TC001 TC002 TC003 TC009 TCS01 TCS02 TCS03 TCS09 |
| FT 7003-0-240M | 2 | 4 | 4.0 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-0-348M | 3 | 5 | 4.8 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-0-356M | 3 | 5 | 5.6 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-0-364M | 3 | 5 | 6.4 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-1-232M | 2 | 4 | 3.2 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 |
UFP-A UFE-A |
| FT 7003-1-240M | 2 | 4 | 4.0 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-1-348M | 3 | 5 | 4.8 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-1-356M | 3 | 5 | 5.6 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FT 7003-1-364M | 3 | 5 | 6.4 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |

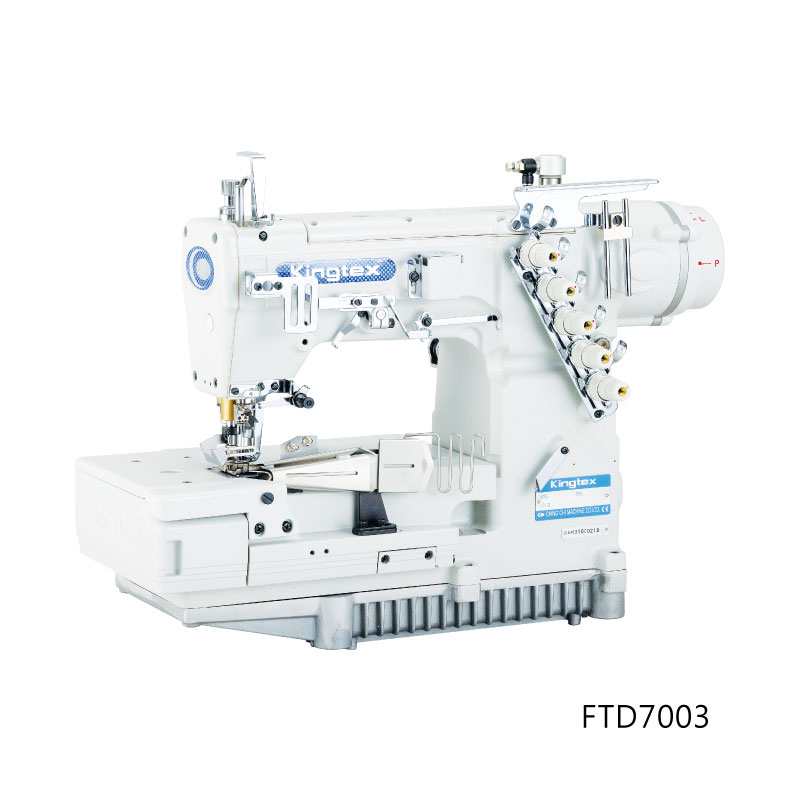

| FTD7003-0-232M | 2 | 4 | 3.2 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 |
UFP-B UFE-B TC001 TC002 TC003 TC009 TCS01 TCS02 TCS03 TCS09 |
| FTD7003-0-240M | 2 | 4 | 4.0 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-0-348M | 3 | 5 | 4.8 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-0-356M | 3 | 5 | 5.6 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-0-364M | 3 | 5 | 6.4 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-1-232M | 2 | 4 | 3.2 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 |
UFP-B UFE-B |
| FTD7003-1-240M | 2 | 4 | 4.0 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-1-348M | 3 | 5 | 4.8 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-1-356M | 3 | 5 | 5.6 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 | |
| FTD7003-1-364M | 3 | 5 | 6.4 | 1.4~4.0 | 0.7~2.0 | 5 | #11 | 6000 |
