右切刀/ 上鬆緊帶/ 細滾邊

產品說明 :

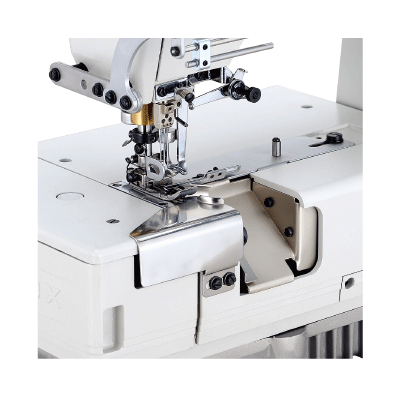

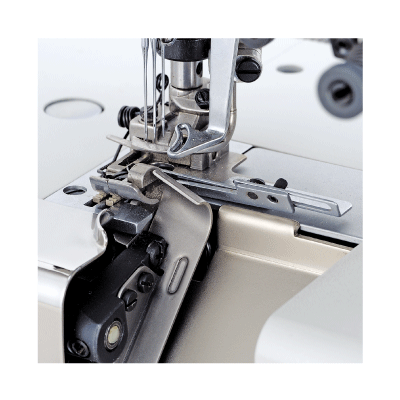

  • 本機型配備右切刀，可先將布料邊緣修齊，再與鬆緊帶或蕾絲車縫。有兩種車縫樣式：鬆緊帶上帶 / 細滾邊。

FTD7069-6
69 選配
FT 7069-0-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

KI002

SE005

TC009
TCS09
FT 7069-0-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-1-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-1-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-2-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-3-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

TC019
TCS19 SE005
FT 7069-3A-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 -
FT 7069-4-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-4-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-5-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FTD7069-4-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-4-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-5-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-6-232M
FTD7069-6A-232M		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-6-240M
FTD7069-6A-240M		 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-248M
FTD7069-6A-248M		 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-356M
FTD7069-6A-356M		 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-364M
FTD7069-6A-364M		 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-232L
FTD7069-6A-232L		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-240L
FTD7069-6A-240L		 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-356L
FTD7069-6A-356L		 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-364L
FTD7069-6A-364L		 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-7-232M
FTD7069-7A-232M		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FT7069-0 零件冊 +
FT7069-1 零件冊 +
FT7069-2 零件冊 +
FT7069-3 零件冊 +
FT7069-3A 零件冊 +
FT7069-5 零件冊 +
FTD7069-2 零件冊 +
FTD7069-4 零件冊 +
FTD7069-6 零件冊 +
FTD7069-7 零件冊 +
使用說明書
型 錄
特點 1
特點2
自動切線

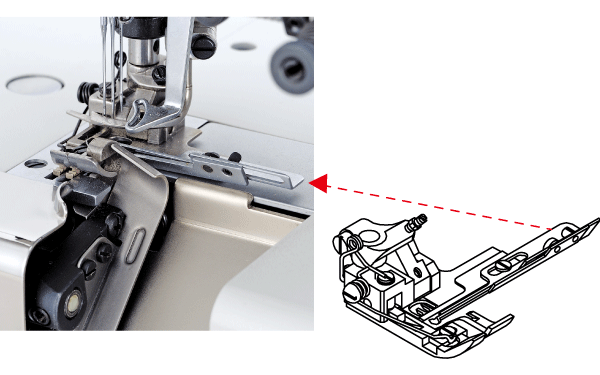

選配裝置
特點 1
機型 圖 圖 圖 右切刀 小喇叭 送帶裝置

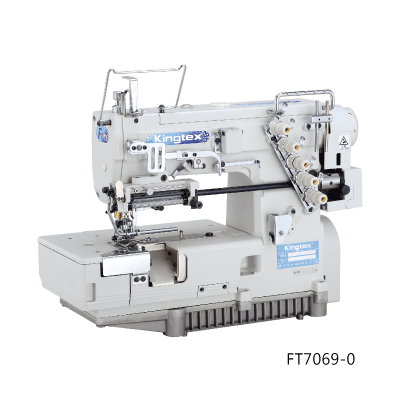

FT7069-0 ● 連桿式

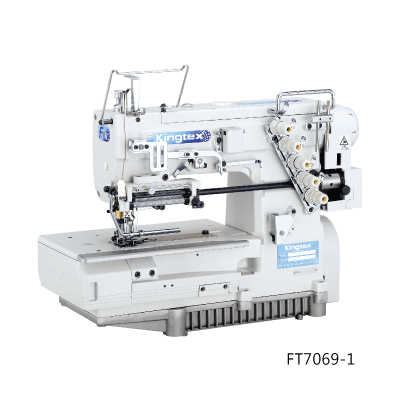

FT7069-1 連桿式

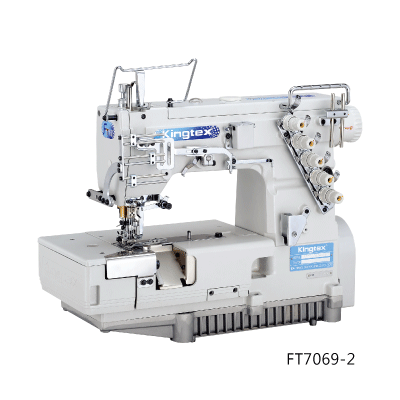

FT7069-2 ● 客戶自行搭配

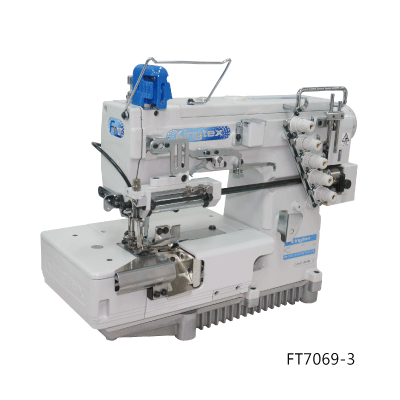

FT7069-3 ● ● 連桿式
FT7069-3A ● ● 客戶自行搭配

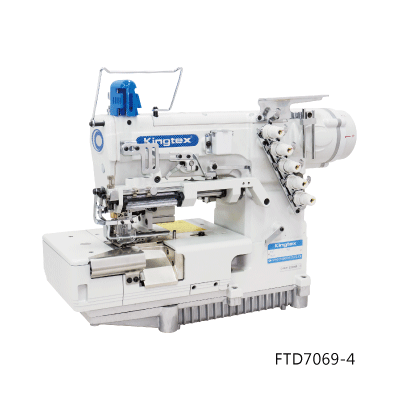

FT7069-4

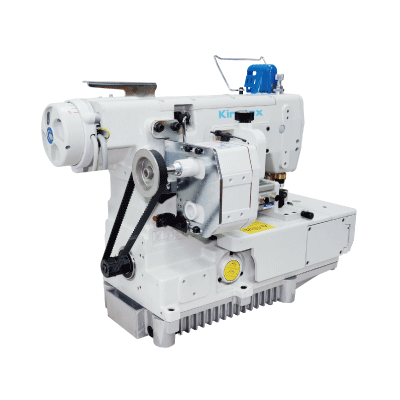

FTD7069-4		 ● 齒輪變速機
FT7069-5

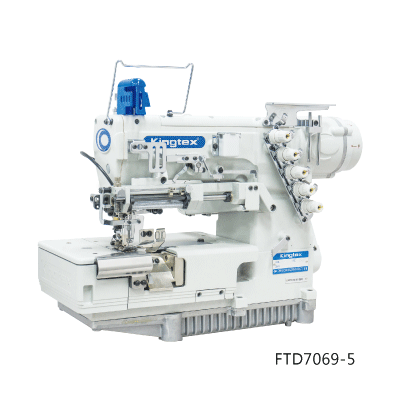

FTD7069-5		 ● ● 齒輪變速機

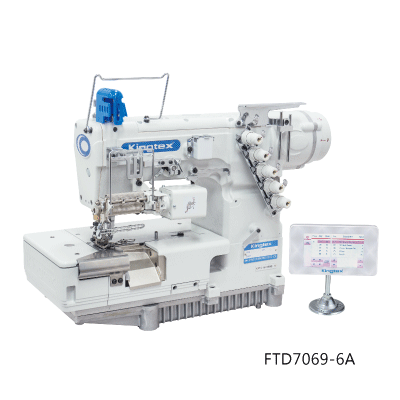

FTD7069-6   ● 電子式

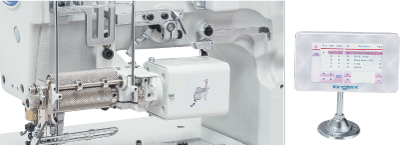

FTD7069-6A   ● 電子式+面板
FTD7069-7   ● ● 電子式
FTD7069-7A   ● ● 電子式+面板
特點 2
FT7069-0
FT7069-2
FT7069-4
FTD7069-4

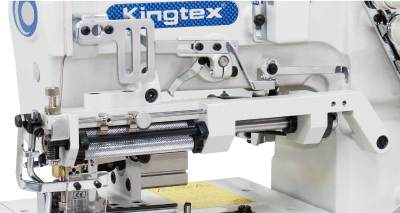

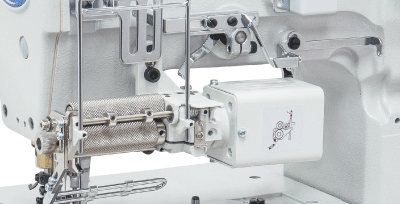

FTD7069-6		 上送帶
鬆緊帶車縫
最大寬度/ Max. Tape Width
蕾絲帶/ Lace tape : 80mm
鬆緊帶/ Elastic tape: 25m
FT7069-3
FT7069-3A
FT7069-5
FTD7069-5
FTD7069-7		 上送帶

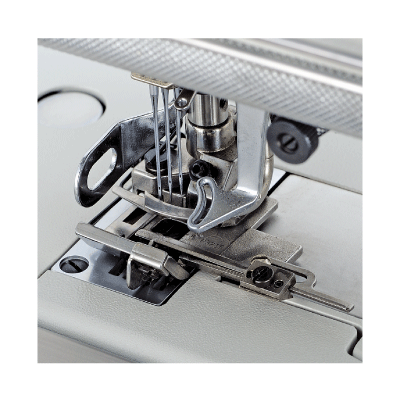

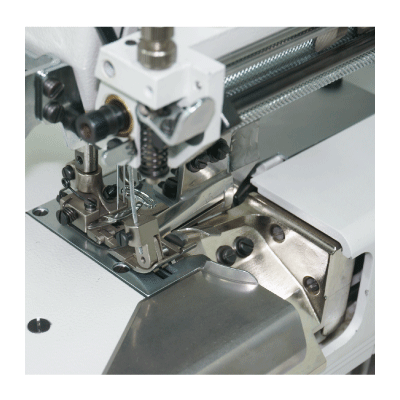

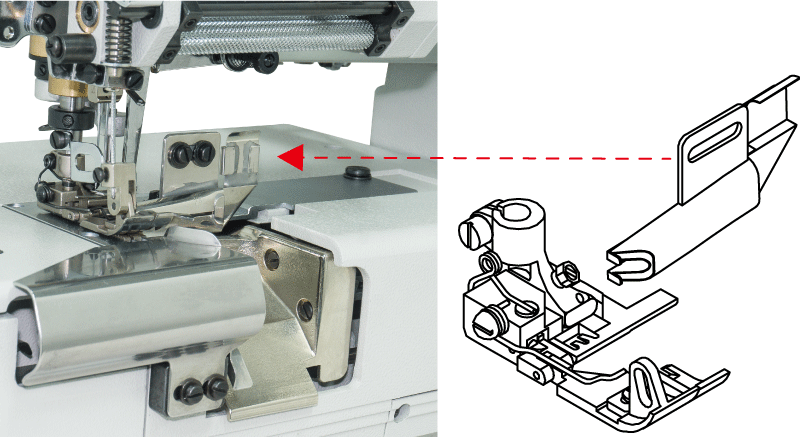

細滾邊
入帶寬度/ Tape width:
16mm, 15mm, 18mm
自動切線
選配裝置
SE005
TC009/ TCS09
依機型
