Product Overview

Flatseamer

NTD80 series4-Needle 6-Thread Feed-Off-the-Arm Sewing Machine
NTD80 series
4-Needle 6-Thread Feed-Off-the-Arm Sewing Machine

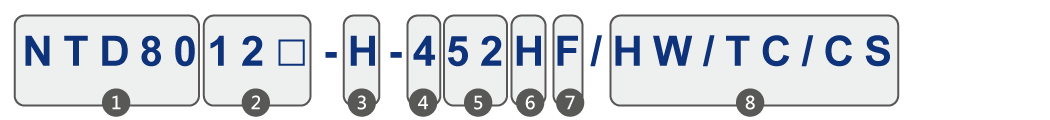

Model Numbering

  • Model Series :

NTD80     Feed Dog Outer Adjustment Type

  • Sewing Application :

01            1-side Trimming
03□        Tape Attaching
04□       Long Presser Foot
12□        2-side Trimming
30            Presser Foot with Roller

  • Blade :

M     Standard
H     Wide
S      Special

  • Needle No :

3
4
5

  • Needle Guauge  :

40     4.0 mm
48     4.8 mm
52     5.2mm
60     6.0 mm
64     6.4 mm
70     7.0 mm
80     8.0 mm

  • Needle Plate Tongue:

L      Light
M    Medium
H     Heavy
S      Special

  • Feed Dog :

□      Standard(1.8)
F        Fine Teeth(1.2)
R        Rough Teeth(2.2)
P        Plastic Flat Teeth

  • Optional Device :

HW           Hand Wheel
TC             Tape Cutter
CV             Air Suction Waste Collector
CS006     Condensed Stitch
B3              Machine Base
