Product Overview

Overlock

UH seriesOverlock sewing machine

Flat bed Overlock

Top Feed Flat bed Overlock

Direct Drive, Top Feed Flat bed Overlock

Cylinder bed Overlock

Cylinder bed Top Feed Overlock

Direct Drive, Cylinder bed Top Feed Overlock

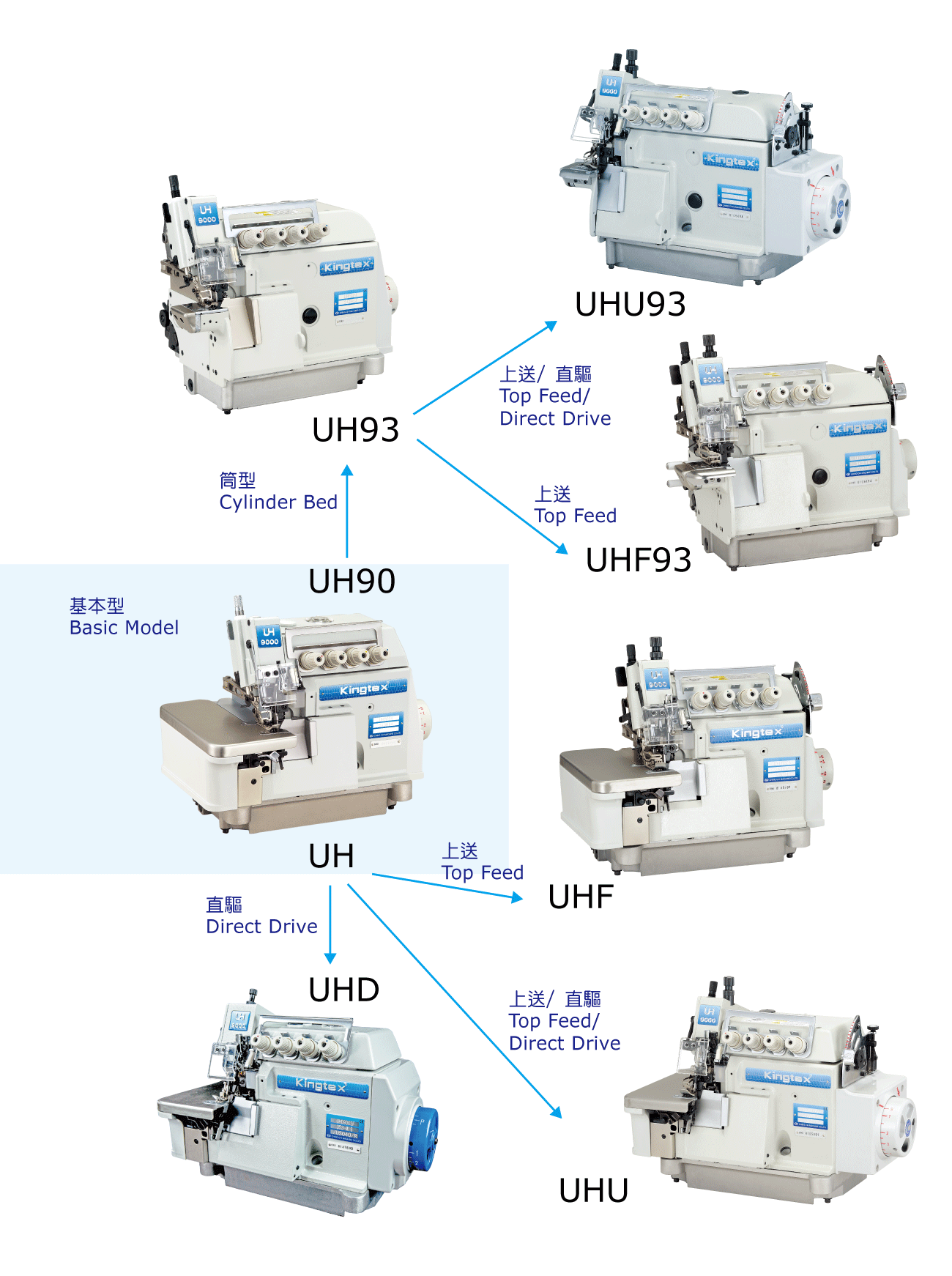

Model Numbering

Machine Type :

*UH/UHD 9100 specification is for heavy material (e.g., high stroke), which there is no obvious difference in the appearance of the machine, the main difference is the internal parts (e.g., main shaft)

Model	Flat bed	Extra Heavy	Cylinder bed	Direct Drive	Top Feeding
UH9000F	●
UH9100F	●	●
UH9300			●
UHD9000F	●			●
UHD9100F	●	●		●
UHD9300			●	●
UHF9000	●				●
UHF9100	●	●			●
UHF9300			●		●
UHU9000	●			●	●
UHU9100	●	●		●	●
UHU9300			●	●	●

Application Code :

	0 Basic-Overlock	1 Blind -Overlock	2 Basic-Latching	3 Pocket Double Chain Stitch	4 Shirring Gathering	5 Pocket Safety Stitch with Tape	6 Piping Decoration	7 Shirring + Piping	8 Elastic Tape Attaching	9 Bulky Sweater/ Reinforced Tape Attaching	A Auto Elastic Tape Attaching	B Fine Edging/ Turn Down Hemming	C Tubular Strap	D Butted Seaming
UH90□□F	●	●	●	●	●	●	●	●	●	●		●	●
UH910□F	●
UH93	●	●									●
UHD90□□F	●	●	●	●	●	●	●	●	●	●		●	●	●
UHD910□F	●
UHD93	●	●									●
UHF90	●
UHF91	●
UHF93	●	●
UHU90	●
UHU91	●
UHU93	●	●

Number of Thread :

2 : 2Thread
3 : 3Thread
4 : 4Thread
5 : 5Thread
6 : 6Thread

Generation :

Generation F modification: the side cover is dependent from the presser foot bar mechanism for easier maintenance. Stitch length adjustment button’s shaft is shorter for better oil proof.(UH90□□F, UH910□F, UHD90□□F, UHD910□F)

Gauge :

Feed Dog Teeth Rows :

1 : 1Roes
2 : 2Roes
3 : 3Roes
4 : 4Roes

Sub-Class :

A : Wide Knife
B : Angle Knife
C : Narrow Presser Foot
D : 2-in-1, Standard/ Blind Stitch
E : Presser Foot for Tape Attaching
F : Angle Knife Fine Feed Dog
R : Rough Feed Dog

Fabric Thickness :

F ：Fine L ：Light M ：Medium H ：Heavy X ：Extra Heavy

Stitch Type :

03：503
04：504
12：512
14：514
16：516
41：401
42：542
44：514+401

Optional Device :

TR ：Tubular Extending Roller Set
SS/US ：Suction Type Thread Chain Trimmer Set
CV ：Central Venturi Device Set
BH ：Blind Hemming Guide
BL ：Thread Tension Releaser
BT ：Back Latch Device
BD ：Pocket Tape Binding Device
GC ：Gathering Device
EG ：Edge Guide
EF ：Elastic Feeding Device
TB ：Tape Guide
AG ：Angle Knife
FS ：Fully-Submerged Installation Kit
SBL ：Simple Type Auto Back Latch
TC ：Tape Cutter Device
TFU ：Tape Feeding Device
AP017 ：Pneumatic Presser Foot Pressure Regulator

Motor :

UHD 9000F/R / □

Function Code	3-Sensor	Cutte	Presser foot lifter	*Venturi Device	Thread Releasing	Control Pane	Needle Plate	Remark
^③H/ UTC	^⑥Reflective Type	^①Pneumatic	Pneumatic			^⑤Touch Screen	^⑥Standard
^④H/ UTD	^⑥Reflective Type	^①Pneumatic	Electric	✓		^⑤Touch Screen	^⑥Standard
H/ KSC	^⑥Reflective Type	^②Electric	Pneumatic	✓	✓	^⑤Touch Screen	^⑥Standard	Chain cutter and main shaft are sunchronous
H/ AKS	^⑥Reflective Type	^②Side Suction	Pneumatic	✓	✓	^⑤Touch Screen	^⑥Standard	Chain cutter is driven by air cylinder
H/ SBL	^⑥Reflective Type	^①Side Suction	Pneumatic	✓	✓	^⑤Touch Screen	^⑥Standard	Back Latch
^③R/ UTC	^⑧Photo-interrupter	^①Side Suction	Pneumatic	✓	✓	^⑦Keypad	^⑧Long type	Full Function
^④R/ UTD	^⑧Photo-interrupter	^①Electric	Electric			^⑦Keypad	^⑧Long type	Full Function
R/ KSC	^⑧Photo-interrupter		Pneumatic	✓	✓	^⑦Keypad	^⑧Long type	Full Function
R/ SBL	^⑧Photo-interrupter	^①Side Suction	Pneumatic	✓	✓	^⑦Keypad	^⑧Long type	Back Latch
R1	^⑧Photo-interrupter	^①Side Suction					Standard	Positioning Only
