Home/products/Multi-Needle Double-Chain Stitch/MT4500, MTD4500 series/TB004
tb4tf3
tb4-800-1

TB0043-Stripe/ Tape Attaching

TB04T Parts List
Specification
Features
Related
Product Menu

Application Description :

  • 3-Stripe/ Tape Attaching
  • Suitable for attaching line stripes on sports pants or sports jackets etc.
  • TCB41 Rear tape cutter is optional for better working efficiency.
Specification

TB

Optional Device

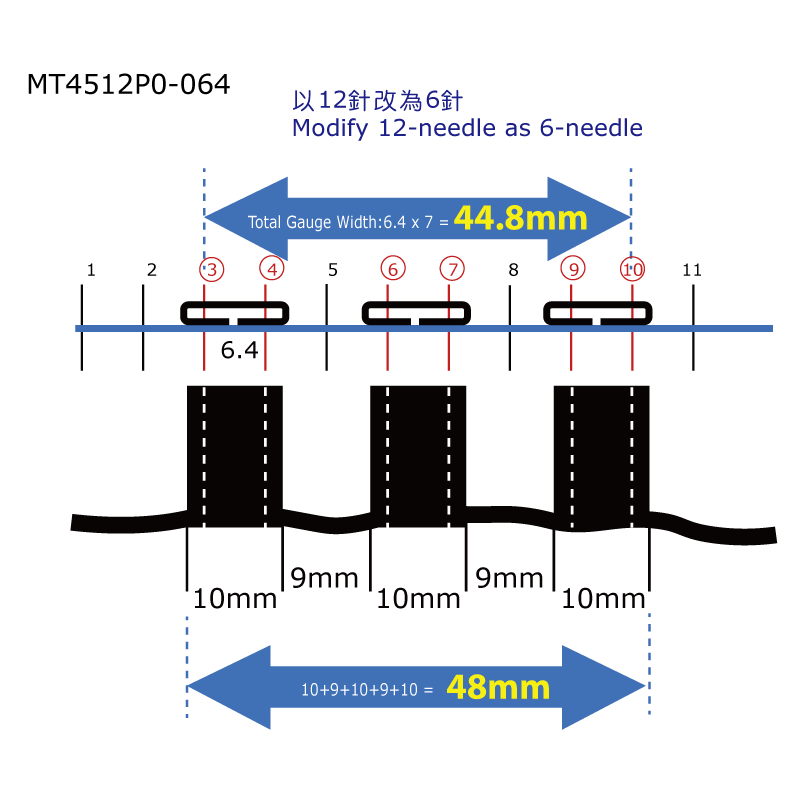

MT4512P0-06412→6126.4/12.8(48mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41

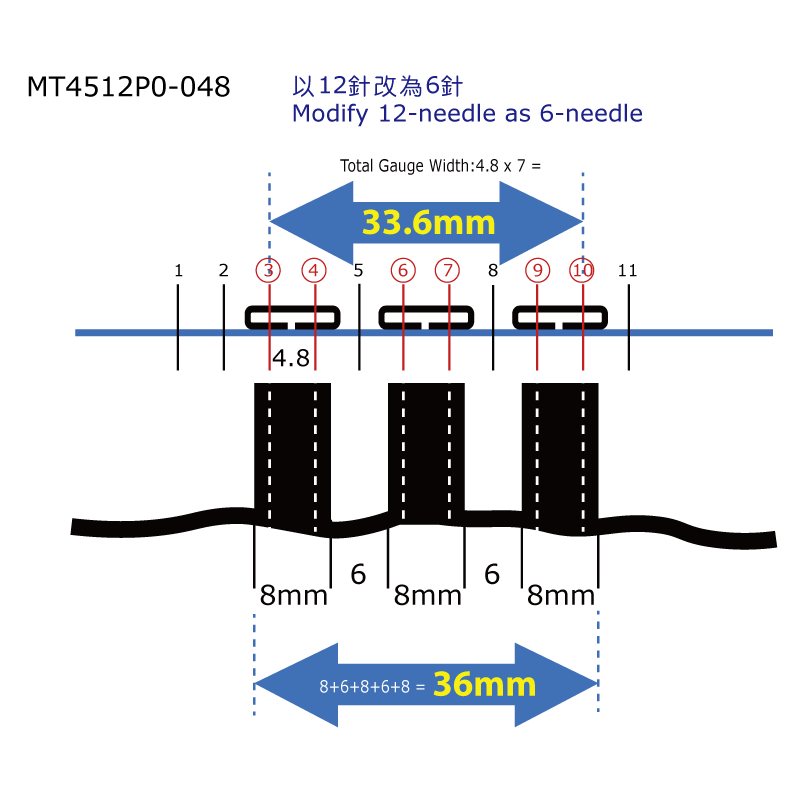

MT4512P0-04812→6124.8/9.6(36mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41

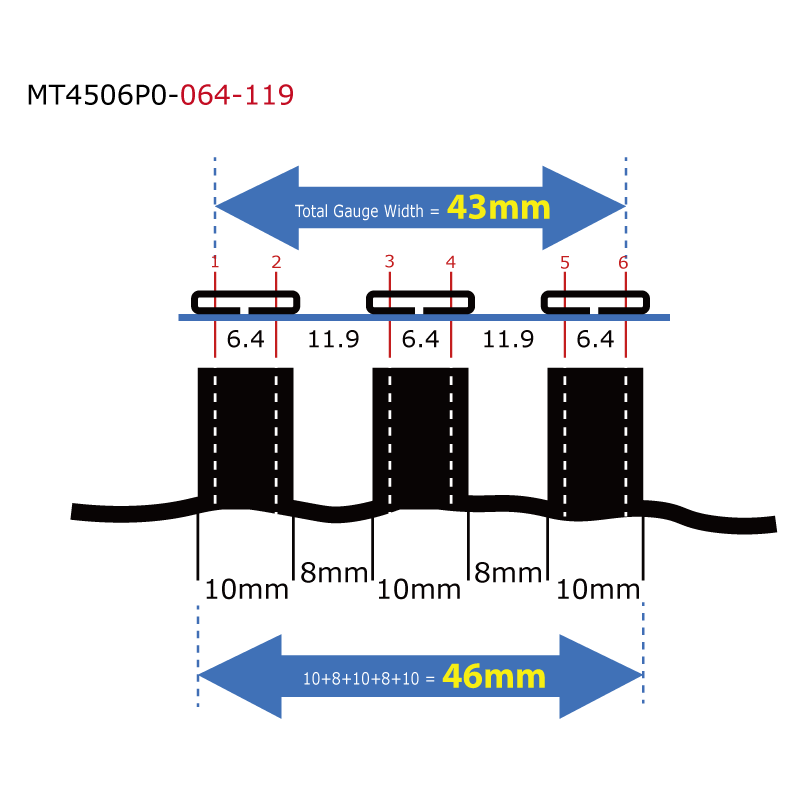

MT4506P0-064-1196126.4/11.9(46mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41

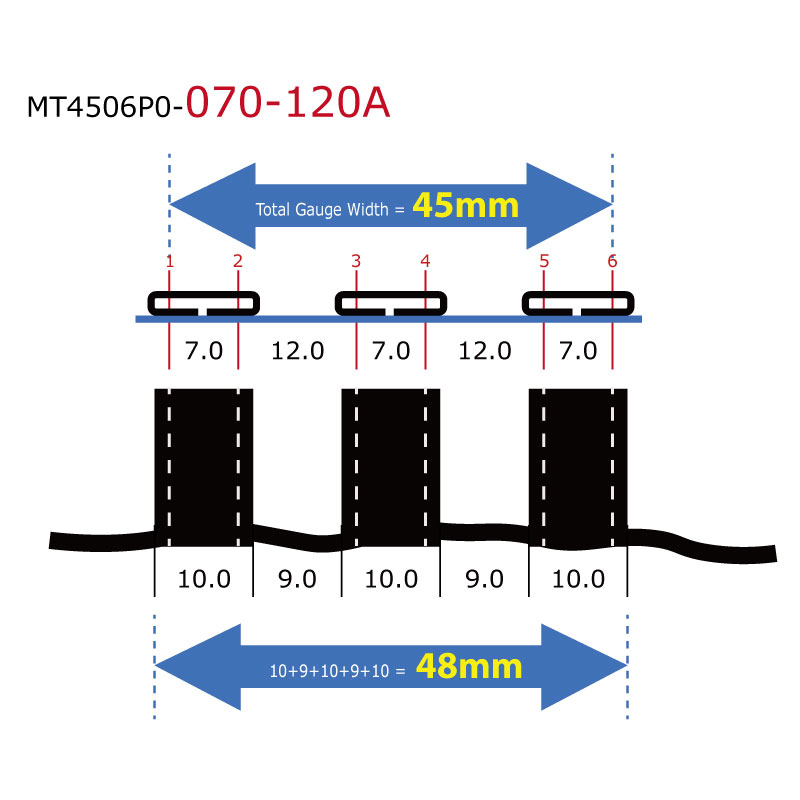

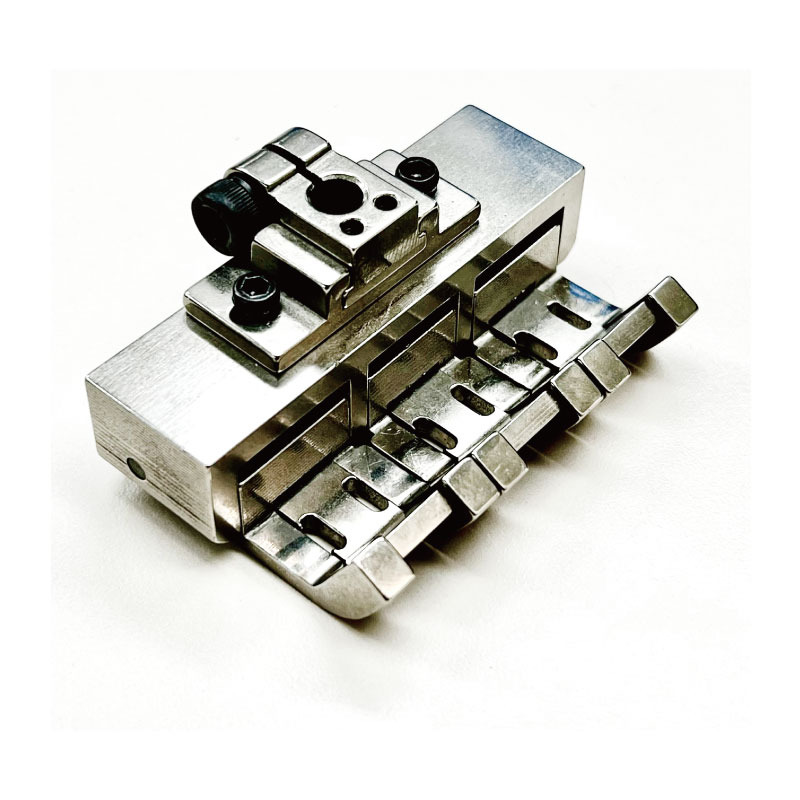

MT4506P0-070-120A6127/12(48mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41
MT4506P0-110-100A
MT4506P0-110-100		61211/10(56mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41
MT4506P0-130-100A
MT4506P0-130-100		61213/11(64mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41

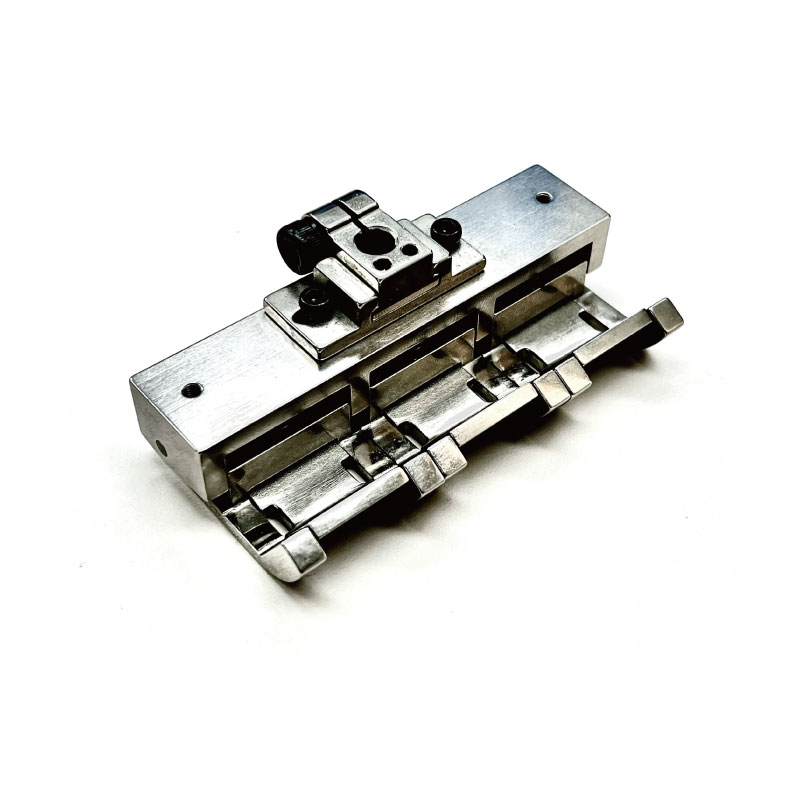

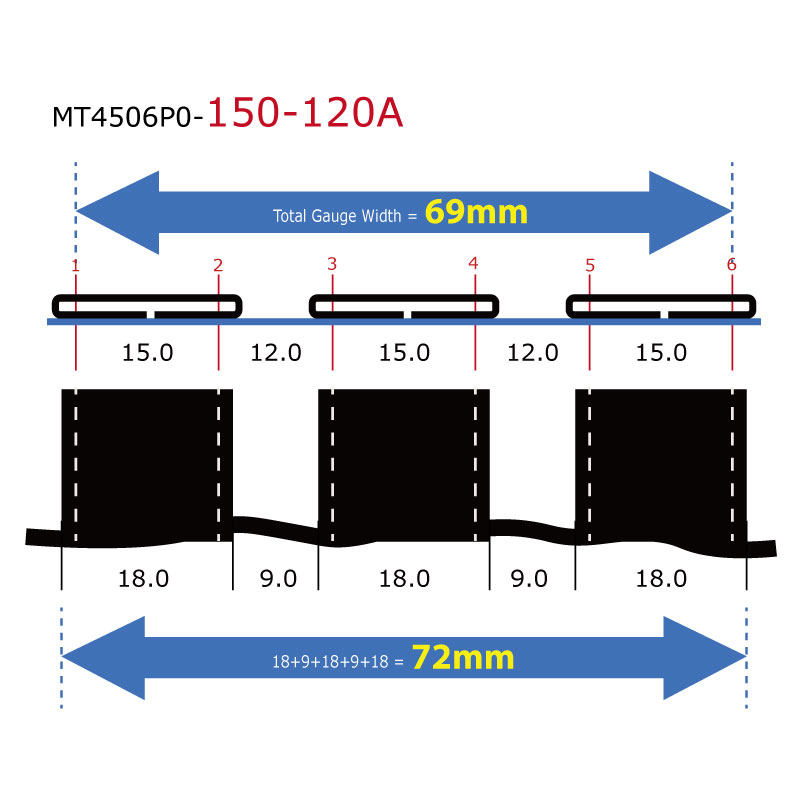

MT4506P0-150-120A
MT4506P0-150-120		61215/12(72mm)1.4~3.612#11~#143500TFU
TB004
TB04T/TCB41
Features

Cloth

3-Stripe / Gauge sets of 3-section type presser foots

3-Stripe / Gauge sets of common presser foots

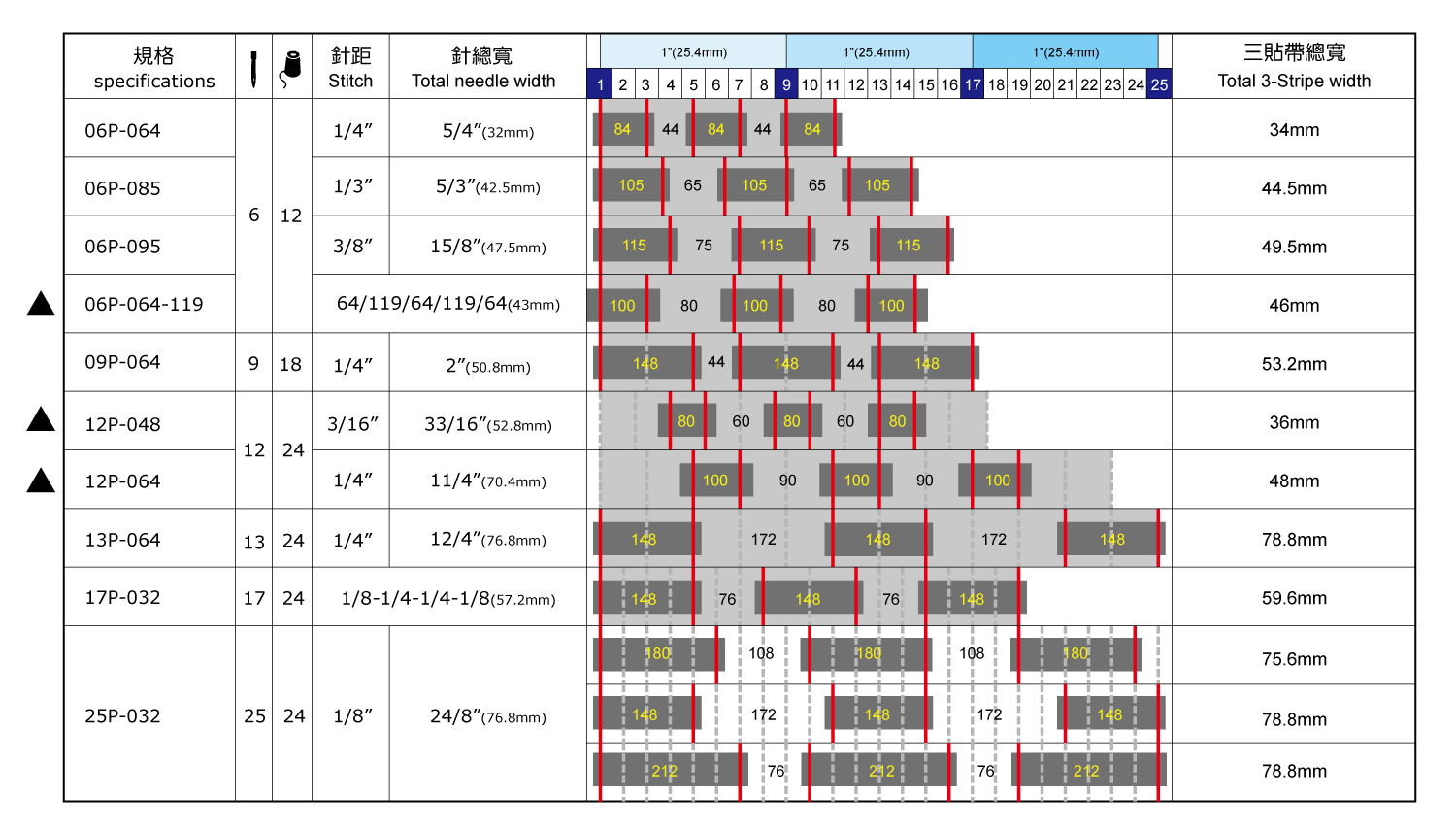

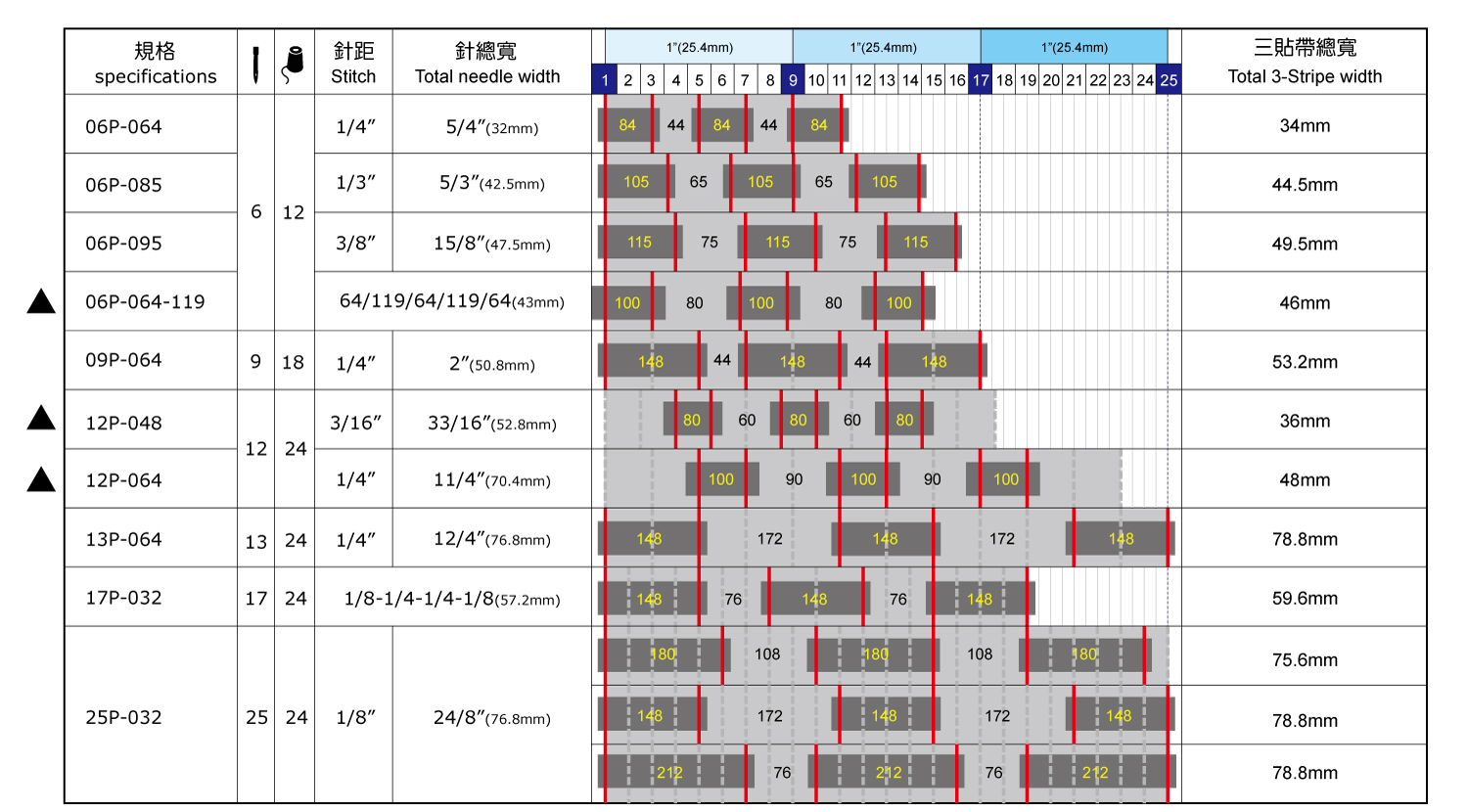

3-Stripe : The Possibility of Common Gauges

▲3-Stripe / Gauge sets of common presser foots

Optional Device

TCB41
