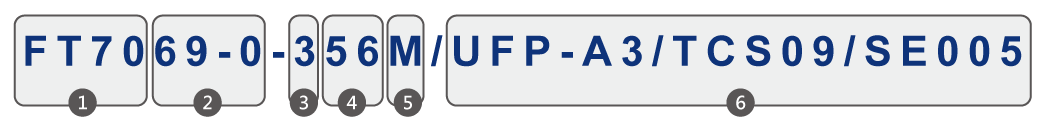

Model Numbering

1

2

3

4

5

6

• Machine Type :

Model	Flat Bed	Direct Drive	Top Feed	Extra Heavy
FT70	●
FT72	●			●
FTD70	●	●
FTD72	●	●		●
FTU70	●	●	●
FTU72	●	●	●	●

• Application Code :

	00 General	02 Double Looper	03 Tape Binding	08 Single Needle	10 Pocket Lining	11 Hemming	13 Covering	15 Pin Tuck	60 4-Nneedle Lapseam	69 Right Trimmer
FT70	●	●	●	●	●	●	●	●	●	●
FT72	●
FTD70	●	●	●	●	●	●	●	●	●	●
FTD72	●
FTU70			●			●			●
FTU72	●

• No of Needle :

1 : 1Needle
2 : 2Needle
3 : 3Needle
4 : 4Needle

• Needle Distance :

32 : 32m.m.
40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

• Fabric Thickness / Needle Plate Tongue :

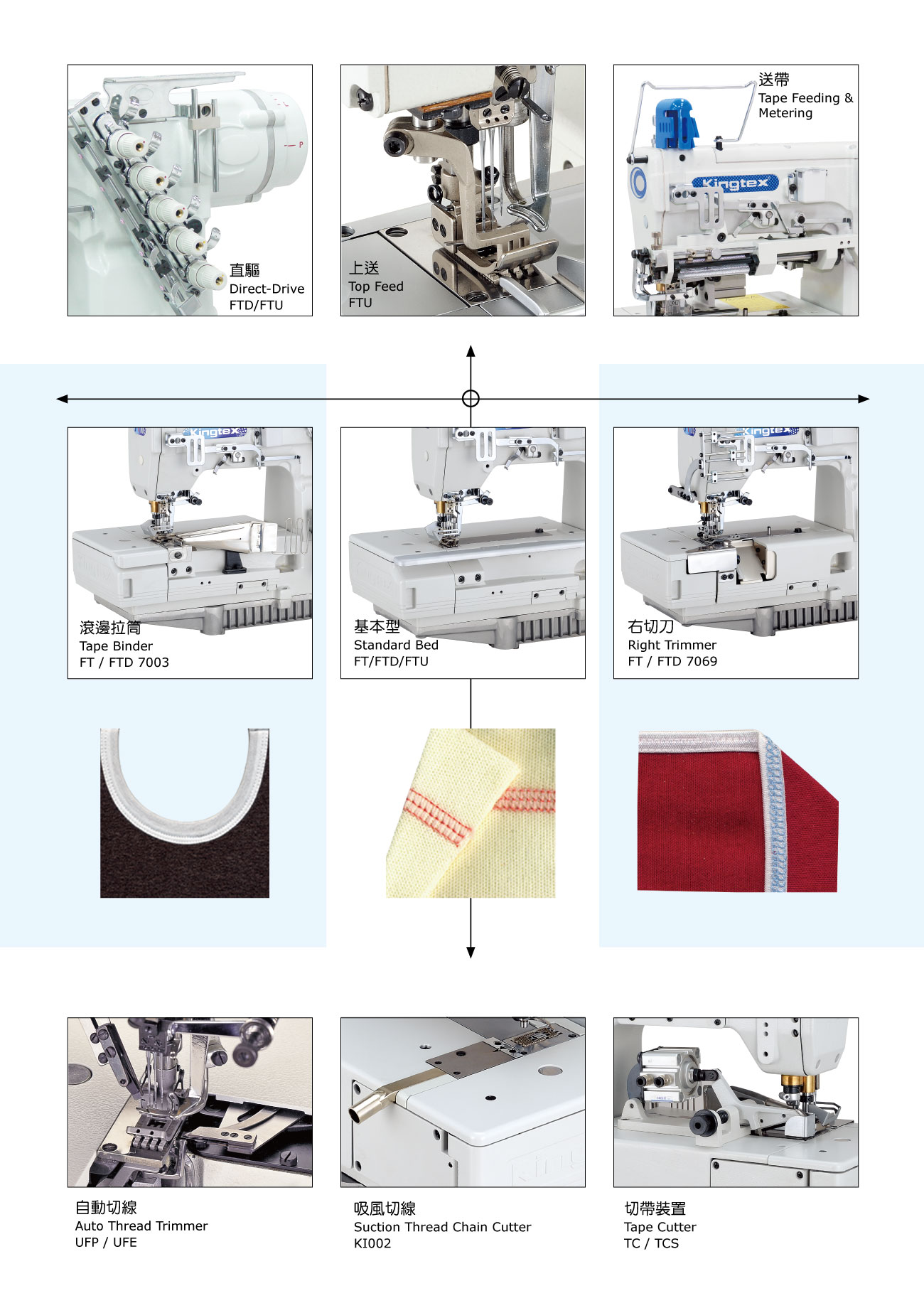

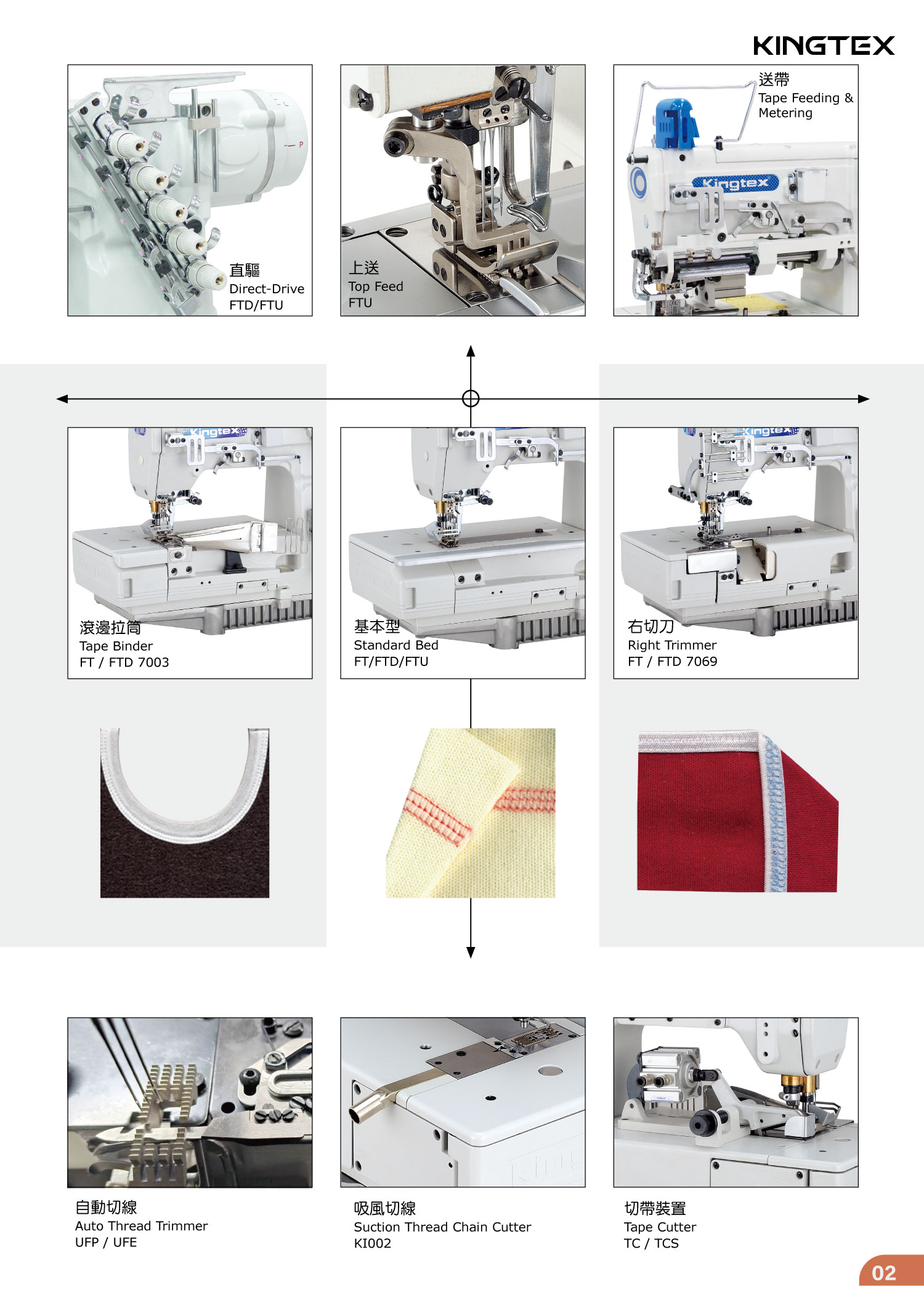

• Optional Device :

AP014	Pneumatic Presser Foot Pressure Regulator
KI002	Under-bed Suction Chain Cutter
SE□	Reflective type Sensor for Fabric Edge
TB□	Tape Binder
TS□	Tape Stand
TF□	Tape Feeder
R	External Direct-drive Servo Motor

	Thread Trimmer	Tape Cutter	Rear Puller
FT70	UFP-C UFE-C	TC	RP
FT72	UFP-C UFE-C	TC	RP
FTD70	UFP-D UFE-D	TCS	RP
FTD72	UFP-D UFE-D	TCS	RP
FTU70	UFP-FD UFE-FD
FTU72	UFP-FD UFE-FD
