Application Description :
- Top Feeding, Direct Drive, Hemming, Left Fabric Edge Trimmer.
- Suitable For Hemming Operation On Cuff, Sleeve Opening And Bottom Of T-Shirt Polo Shirt ---etc.
- Light to medium weight material.

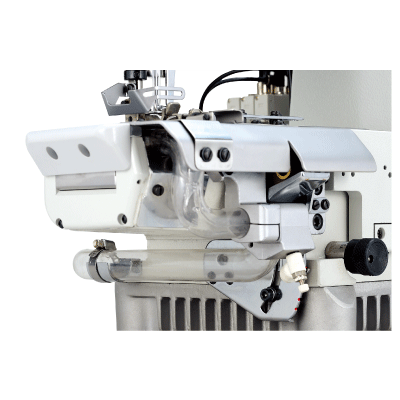

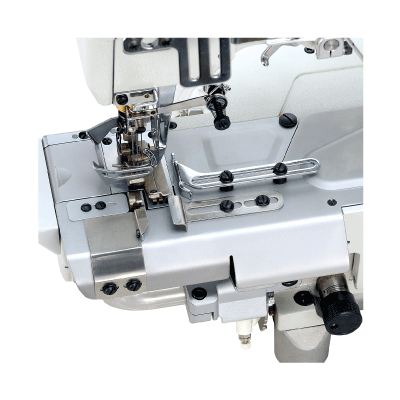

- With hemming folder, left hand side fabric trimmer and fabric chips suction pipe, suitable for hemming operation on tubular fabric, such as cuff or bottom of T-shirt, polo shirt. The tubular fabric can be folded downward smoothly and the sewing operation continues while the folded fabric edge is trimmed by the left hand knife prior to sewing. In the meanwhile, fabric chips and dust can be sucked into the waste collection bag through the pipe.
- Applicable hemming width : 3/4" ~ 1 ½" (finished size).
-
 |
 |
 |
 |
 |
 |
 |
 |
 |
Optional Device | |
|---|---|---|---|---|---|---|---|---|---|---|
| CTU9311-0-240M | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 |
UCP-FB UCE-FB |
| CTU9311-0-248M | 2 | 4 | 4.8 | |||||||
| CTU9311-0-348M | 3 | 5 | 4.8 | |||||||
| CTU9311-0-356M | 3 | 5 | 5.6 | |||||||
| CTU9311-0-364M | 3 | 5 | 6.4 | |||||||
| CTU9311-0-356L | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 | |
| CTU9311-0-240S | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 | |
| CTU9311-0-348S | 3 | 5 | 4.8 | |||||||
| CTU9311-0-356S | 3 | 5 | 5.6 | |||||||
| CTU9311-0-364S | 3 | 5 | 6.4 | |||||||
| CTU9311-0-240S1 | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 | |
| CTU9311-0-348S1 | 3 | 5 | 4.8 | |||||||
| CTU9311-0-356S1 | 3 | 5 | 5.6 | |||||||
| CTU9311-0-364S1 | 3 | 5 | 6.4 | |||||||
| CTU9311-0-356S2 | 3 | 5 | 5.6 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 | |
| CTU9311-0-364S2 | 3 | 5 | 6.4 | |||||||
| CTU9311-0-240H | 2 | 4 | 4.0 | 1.4~3.6 | 1:0.3~1:2.9 | 1~6 | 5 | #11 | 4500 | |
| CTU9311-0-248H | 2 | 4 | 4.8 | |||||||
| CTU9311-0-348H | 3 | 5 | 4.8 | |||||||
| CTU9311-0-356H | 3 | 5 | 5.6 | |||||||
| CTU9311-0-364H | 3 | 5 | 6.4 |
Cloth
CT9311/CTD9311
Cylinder bed design with circumference of 345 m.m.
CTD9811
Small cylinder bed design with circumference of 260 m.m. suitable for small tubular interlock sewing operation, such as chldren’s wear etc.
Machines are equipped with air blowing type anti-curling device (patent pending) when shipment out of factory.
CXM2311
Machines are equipped with air blowing type anti-curling device (patent pending) when shipment out of factory.
Thread Trimming System
