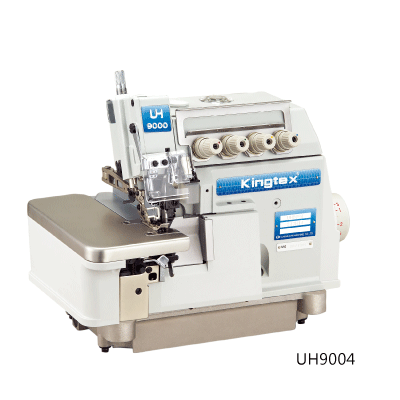

Overlock
UH9000F, UHD9000F series
Flat bed Overlock
UHF9000 series
Top Feed Flat bed Overlock
UHU9000 series
Direct Drive, Top Feed Flat bed Overlock
UH9300, UHD9300 series
Cylinder bed Overlock
UHF9300 series
Cylinder bed Top Feed Overlock
UHU9300 series
Direct Drive, Cylinder bed Top Feed Overlock
Model Numbering
1
Machine Type :
| Model | Flat bed | Extra Heavy | Cylinder bed | Direct Drive | Top Feeding |
|---|---|---|---|---|---|
| UH9000F | ● | ||||
| UH9100F | ● | ● | |||
| UH9300 | ● | ||||
| UHD9000F | ● | ● | |||
| UHD9100F | ● | ● | ● | ||
| UHD9300 | ● | ● | |||
| UHF9000 | ● | ● | |||
| UHF9100 | ● | ● | ● | ||
| UHF9300 | ● | ● | |||
| UHU9000 | ● | ● | ● | ||
| UHU9100 | ● | ● | ● | ● | |
| UHU9300 | ● | ● | ● |
*UH/UHD 9100 specification is for heavy material (e.g., high stroke), which there is no obvious difference in the appearance of the machine, the main difference is the internal parts (e.g., main shaft)
2
Application Code :
0 Basic-Overlock |
1 Blind -Overlock |
2 Basic-Latching |
3 Pocket Double Chain Stitch |
4 Shirring Gathering |
5 Pocket Safety Stitch with Tape |
6 Piping Decoration |
7 Shirring + Piping |
8 Elastic Tape Attaching |
9 Bulky Sweater/ Reinforced Tape Attaching |
A Auto Elastic Tape Attaching |
B Fine Edging/ Turn Down Hemming |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH90□□F | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| UH910□F | ● | |||||||||||
| UH93 | ● | ● | ● | |||||||||
| UHD90□□F | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| UHD910□F | ● | |||||||||||
| UHD93 | ● | ● | ● | |||||||||
| UHF90 | ● | |||||||||||
| UHF91 | ● | |||||||||||
| UHF93 | ● | ● | ||||||||||
| UHU90 | ● | |||||||||||
| UHU91 | ● | |||||||||||
| UHU93 | ● | ● |
3
Number of Thread :
2 : 2 Thread
3 : 3 Thread
4 : 4 Thread
5 : 5 Thread
6 : 6 Thread
3 : 3 Thread
4 : 4 Thread
5 : 5 Thread
6 : 6 Thread
4
Generation :
Generation F modification: the side cover is dependent from the presser foot bar mechanism for easier maintenance. Stitch length adjustment button’s shaft is shorter for better oil proof.(UH90□□F, UH910□F, UHD90□□F, UHD910□F)
5
Gauge :
6
Feed Dog Teeth Rows:
1 : 1 Roe
2 : 2 Roes
3 : 3 Roes
4 : 4 Roes
2 : 2 Roes
3 : 3 Roes
4 : 4 Roes
7
Sub-Class :
A : Wide Knife
B : Angle Knife
C : Narrow Presser Foot
D : 2-in-1, Standard/ Blind Stitch
E : Presser Foot for Tape Attaching
F : Angle Knife Fine Feed Dog
R : Rough Feed Dog
B : Angle Knife
C : Narrow Presser Foot
D : 2-in-1, Standard/ Blind Stitch
E : Presser Foot for Tape Attaching
F : Angle Knife Fine Feed Dog
R : Rough Feed Dog
8
Fabric Thickness :
F：Fine
L：Light
M：Medium
H：Heavy
X：Extra Heavy
L：Light
M：Medium
H：Heavy
X：Extra Heavy
9
Stitch Type :
03 |
503 |
04 |
504 |
12 |
512 |
14 |
514 |
16 |
516 |
41 |
401 |
42 |
542 |
44 |
514+401 |
10
Optional Device :
| TR | Tubular Extending Roller Set |
| SS/ US | Suction Type Thread Chain Trimmer Set |
| CV | Central Venturi Device Set |
| BH | Blind Hemming Guide |
| BL | Thread Tension Releaser |
| BT | Back Latch Device |
| BD | Pocket Tape Binding Device |
| GC | Gathering Device |
| EG | Edge Guide |
| EF | Elastic Feeding Device |
| TB | Tape Guide |
| AG | Angle Knife |
| FS | Fully-Submerged Installation Kit |
| SBL | Simple Type Auto Back Latch |
| TC | Tape Cutter Device |
| TFU | Tape Feeding Device |
| AP017 | Pneumatic Presser Foot Pressure Regulator |
11
Motor :
Direct Drive Servo Motor / Sensor Control Trimmer
UHD 9000F/R / □
UHD9004F-234-M14/R1
UHD 9000F/H / □
UHD9004F-234-M14/H/UTD
| Function Code | 3-Sensor | Cutter | Presser foot lifter | *Venturi Device | Thread Releasing | Control Panel | Needle Plate | Remark |
|---|---|---|---|---|---|---|---|---|
3 H/ UTC |
6 Reflective Type |
1 Pneumatic |
Pneumatic | 5 Touch Screen |
6 Standard |
|||
4 H/ UTD |
6 Reflective Type |
1 Electric |
Electric | ✓ | 5 Touch Screen |
6 Standard |
||
| H/ KSC | 6 Reflective Type |
2 Side Suction |
Pneumatic | ✓ | ✓ | 5 Touch Screen |
6 Standard |
Chain cutter and main shaft are synchronous |
| H/ AKS | 6 Reflective Type |
2 Side Suction |
Pneumatic | ✓ | ✓ | 5 Touch Screen |
6 Standard |
Chain cutter is driven by air cylinder |
H/ SBL |
6 Reflective Type |
1 Pneumatic |
Pneumatic | ✓ | ✓ | 5 Touch Screen |
6 Standard |
Back Latch |
3 R/ UTC |
8 Photo-interrupter |
1 Pneumatic |
Pneumatic | ✓ | ✓ | 7 Keypad |
8 Long type |
Full Function |
4 R/ UTD |
8 Photo-interrupter |
1 Electric |
Electric | 7 Keypad |
8 Long type |
Full Function | ||
| R/ KSC | 8 Photo-interrupter |
2 Side Suction |
Pneumatic | ✓ | ✓ | 7 Keypad |
8 Long type |
Full Function |
| R/ SBL | 8 Photo-interrupter |
1 Pneumatic |
Pneumatic | ✓ | ✓ | 7 Keypad |
8 Long type |
Back Latch |
| R1 | Standard |
Positioning Only |
*Venturi Device is controlled by sensors, which can save energy and compressed air.
1
2
3
4
5
6
7
8
UHD5000F series
Mechatronics, Direct Drive, Flat Bed Overlock
Model Numbering
1
Machine Type :
UHD5000F |
Mechatronics, Direct Drive, Flat Bed Overlock |
2
Application Code :
0 |
Basic Model |
3
Number Of Thread :
3 |
3 Thread |
4 |
4 Thread |
5 |
5 Thread |
6 |
6 Thread |
4
Needle Distance :
0 |
0 |
2 |
2.2mm |
3 |
3.2mm |
5 |
4.8mm |
5
Seam Width :
3 |
3.0m.m. |
4 |
4.0m.m. |
5 |
5.0m.m. |
6
Rows Of Feed-Dogs :
2 |
2 Rows |
3 |
3 Rows |
7
Fabrics Thickness :
M |
Medium to Heavy |
8
Stitching Code :
04 |
#504 |
14 |
#514 |
16 |
#516 |
44 |
#544 |
9
Optional Device :
UTC |
Pneumatic Type Flat Suction chain cutter |
UTD |
Electric Type Flat Suction chain cutter |
KSC |
Pneumatic Type Side Suction chain cutter |
