CT/ CX /FT /FTD /FTU /FTD5000 /VX Model Numbering Kingtex - Sewing Machine

CT90, CTD90, CT93, CTD93 series

Cylinder Bed Coverstitch Interlock Machine

CT97, CTD97,CTD98, CXM27, CXM28 series

Small Cylinder Bed Coverstitch Interlock Machine

CTU90, CTU93 series

Direct Drive, Top Feed, Cylinder Bed Coverstitch Interlock Machines

CTU91 series

Direct Drive, Top Feed, Extra Small Cylinder Bed Coverstitch Interlock Machine

CTU97, CTU98 series

Direct Drive, Top Feed, Small Cylinder Bed Coverstitch Interlock Machine

CXM20, CXM23 series

Mechatronics Type, Direct Drive, Cylinder Bed Coverstitch Interlock Machine

CXN20, CXN23 series

Mechatronics Type, Direct Drive,Top Feed Cylinder Bed Coverstitch Interlock Machine

Model Numbering

1

Machine Type :

Model	Direct Drive	Top Feed	Cylinder	Small Cylinder	Extra Small Cylinder	Left Edge Trimmer	Extra Heavy
CT90			●
CT92			●				●
CT93			●			●
CT97				●
CT98				●		●
CTD90	●		●
CTD92	●		●				●
CTD93	●		●			●
CTD97	●			●
CTD98	●			●		●
CTU90	●	●	●
CTU91	●	●			●
CTU92	●	●	●				●
CTU93	●	●	●			●
CTU97	●	●		●
CTU98	●	●		●		●
CTN91	M	●			●
CTM97	M			●
CXM20	M		●
CXM22	M		●				●
CXM23	M		●			●
CXD27	●			●
CXN20	M	●	●
CXN22	M	●	●				●
CXN23	M	●	●			●

2

Application Code :

	00 General	03 Tape Binding	11 Hemming	13 Covering	42 Tubular Band	60 4-Nneedle Lapseam	85 Right Trimme	A3 3 in 1
CT90	●	●	●	●	●	●	●
CT92	●
CT93			●
CT97			●	●		●
CT98			●
CTD90	●	●	●	●	●	●	●
CTD92	●
CTD93			●
CTD97			●	●		●
CTD98			●
CTU90			●	●		●
CTU91			●			●
CTU92	●
CTU93			●
CTU97			●			●
CTU98			●
CTN91			●	●
CTM97			●	●
CXM20	●				●	●	●	●
CXM22	●
CXM23			●
CXD27			●	●		●
CXN20	●		●	●	●	●		●
CXN22	●
CXN23			●

3

No of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

4

Needle Distance :

40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

5

Fabric Thickness / Needle Plate Tongue :

L : Light	M : Medium	H : Heavy

S : Special	S1 : Special	W : Light Woven

6

Optional Device :

	Thread Trimmer	Condensed Stitch	Rear Puller
CT90	UCP-A UCE-A	CS002 CS01P(9085)	RP003
CT92	UCP-A UCE-A	CS002 CS01P(9085)	RP003
CT93	UCP-A UCE-A	CS003 CS01P(9085)	RP003
CT97	UCP-C UCE-C	CS004 CS04P(RP004)	RP004
CT98	UCP-C UCE-C	CS004
CTD90	UCP-B UCE-B	CS002 CS01P(9085)	RP003
CTD92	UCP-B UCE-B	CS002	RP003
CTD93	UCP-B UCE-B	CS002	RP003
CTD97	UCP-D UCE-D	CS004 CS04P(RP004)	RP004 CS04P
CTD98	UCP-D UCE-D	CS004
CTU90	UCP-FB UCE-FB	CS002
CTU91	UCP-FS UCE-FS
CTU92	UCP-FB UCE-FB
CTU93	UCP-FB UCE-FB
CTU97	UCP-FD UCE-FD	CS004
CTU98	UCP-FD UCE-FD
CTN91	UCP-FS UCE-FS
CTM97	UCP-D UCE-D	CS004 CS04P(RP004)	RP004 CS04P
CXM20	UCP-X UCE-X	CS005 CS05P(RPC08)	RP008 RPC08
CXM22	UCP-X UCE-X	CS005	RP008 RPC08
CXM23	UCP-X UCE-X	CS005	RP008 RPC08
CXD27	UCP-D UCE-D	CS004 CS04P(RP004)	RP004 CS04P
CXN20	UCP-FX UCE-FX		RP008 RPC08
CXN22	UCP-FX UCE-FX		RP008 RPC08
CXN23	UCP-FX UCE-FX		RP008 RPC08

FT7000, FTD7000 series

Flat Bed Interlock

FTU7011 series

Top Feed, Flat Bed Interlock

Model Numbering

1

Machine Type :

Model	Flat Bed	Direct Drive	Top Feed	Extra Heavy
FT70	●
FT72	●			●
FTD70	●	●
FTD72	●	●		●
FTU70	●	●	●
FTU72	●	●	●	●

2

Application Code :

	00 General	02 Double Looper	03 Tape Binding	08 Single Needle	10 Pocket Lining	11 Hemming	13 Covering	15 Pin Tuck	60 4-Nneedle Lapseam	69 Right Trimmer
FT70	●	●	●	●	●	●	●	●	●	●
FT72	●
FTD70	●	●	●	●	●	●	●	●	●	●
FTD72	●
FTU70			●			●			●
FTU72	●

3

No of Needle :

1 : 1 Needle
2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

4

Needle Distance :

32 : 32m.m.
40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

5

Fabric Thickness / Needle Plate Tongue :

L : Light	M : Medium	H : Heavy

S : Special	S1 : Special	W : Light Woven

6

Optional Device :

	Thread Trimmer	Tape Cutter	Rear Puller
FT70	UFP-A UFE-A	TC	RP
FT72	UFP-A UFE-A	TC	RP
FTD70	UFP-B UFE-B	TCS	RP
FTD72	UFP-B UFE-B	TCS	RP
FTU70	UFP-FB UFE-FB
FTU72	UFP-FB UFE-FB

FTD5000 series

Flat Bed Interlock Sewing Machine

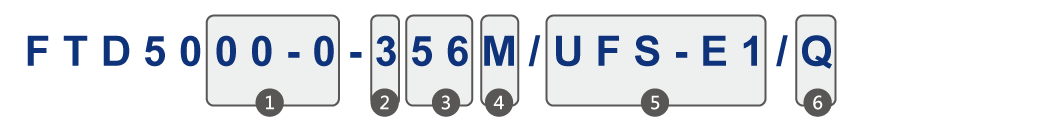

Model Numbering

1

Application Code :

00-0 :	General
03-0 :	Tape Binding
13-0 :	Seam Covering Stitch
A3-0 :	3-in-1 (General, Tape Binding, Seam Covering Stitch)

2

Needle Number

3 : 3Needle

3

Gauge :

56 :	56m.m.
64 :	64m.m.

4

Needle Plate Tongue :

L :	Light
M :	Medium
H :	Heavy

5

UFS Thread Trimmer :

E1 :	Top/ Bottom Trimmer
E2 :	Top Wiper/ Bottom Trimmer
E3 :	Top/ Bottom Trimmer, Wiper is included.

6

Motor :

Q : Qixing

VXD, VLD series

Feed-Up-The-Arm Interlock Machine

Model Numbering

1

Machine Type :

VX15	High Speed Feed-Up-The-Arm Interlock Machine
VXD15	High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machine
VL15	High Speed Long Arm Feed-Up-The-Arm Interlock Machine
VLD15	High Speed Long Arm Feed-Up-The-Arm Direct Drive Type Interlock Machine

2

Application Code:

00-0	3 in one type : folding over type and flattening out type for seam covering application and bottom hemming type.
02-0	Double Chainstitch Tape Attaching
60-0	4-Needle, 6-Thread Cylinder Bed Coverstitch Interlock Machine

3

Number Of Needle :

2	2 Needle
3	3 Needle
4	4 Needle

4

Needle Distance :

48 :	48m.m.
56 :	56m.m.
60 :	60m.m.
64 :	64m.m.

5

Shape Of Needle Plate Tongue :

M	For Medium Weight Materials.

6

Optional Device :

UVP-X1 :	Pneumatic Type Under Bed Thread Trimming System (For High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machine)
UVE-X1 :	Electric Type Under Bed Thread Trimming System (For High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machine)
UVP-L1 :	Pneumatic Type Under Bed Thread Trimming System (For High Speed Long Arm Feed-Up-The-Arm Interlock Machine)
