4-Needle 6-Thread Feed-of-the-Arm Flatseamer
NTD67 series
4-Needle 6-Thread Feed-of-the-Arm Flatseamer

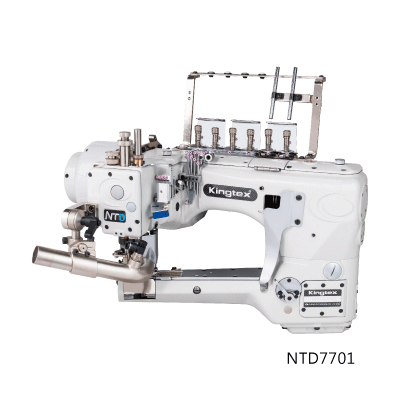

NTD77 series
4-Needle 6-Thread Feed-of-the-Arm Flatseamer
Model Numbering
1
Machine Type :
| NTD67 | Direct-drive General Type |
| NTD69 | Direct-drive Small Arm-bed Type |
| NTD77 | Direct-drive Fully Sealed Type |
2
Sewing Application :
| 01 | 1-side Trimming |
| 03 | Tape Attaching |
| 04□ | Long Presser Foot/ Straight Forward |
| 12 | 2-side Trimming |
| 30 | Presser Foot with Roller |
3
Sewing Material :
| M | Light to Medium |
| H | Heavy to Extra Heavy |
| S | Slippery/ Curly |
4
Needle Distance :
| 5 | 5.2mm |
| 6 | 5.6mm |
| 356 | 3 Needle 5.6 mm |
| 448 | 4 Needle 4.8mm |
5
Optional Device :
| TC | Tape Cutter |
| CV | Air Suction Waste Collector |
| TTS | D/D Servo Motor Base |
FTK2500 series
4-Needle 6-Thread Flat-bed Flatseamer
Model Numbering
1
Sewing Application :
| 01 | 1-side Trimming |
| 03 | Tape Attaching/ 1-side Trimming |
| 03A | Tape Attaching/ 2-side Trimming |
| 12 | 2-side Trimming |
Applicable to the sewing of multi-piece lap seaming style Athletic performance wear or Yoga wear.
2
Needle Number :
| 3 | 3 Needle |
| 4 | 4 Needle |
3
Needle Distance :
| 52 | 5.2mm |
| 56 | 5.6mm |
| 60 | 6.0mm |
4
Sewing Material :
| M | Light to Medium |
| H | Heavy to Extra Heavy |
| S | Slippery/ Curly |
5
Optional Device :
| KI006 | Suction Type Thread Trimmer |
| AL16F | Pneumatic Presser Foot Lifter |
| TCS34 | Pneumatic Tape Cutter |
