Application Description :

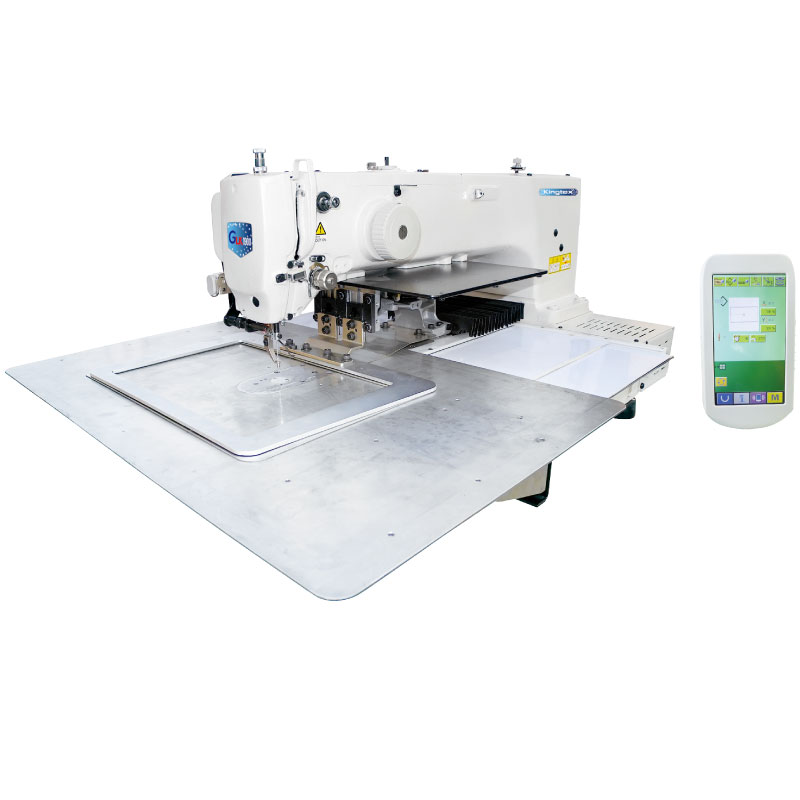

- Computer-controlled Pattern Sewing Machine with input function
- For general legs of trousers, jeans.
- LCD Panel.
- Presser foot : Auto up and down.。
- Installing an encoder to stepping motor will boost the reaction of speed and avoid incorrect positioning for the stepping motor.
- Maximum sewing speed : 2700 rpm.
 |
 |
 |
 |
 |
 |
 |
 |

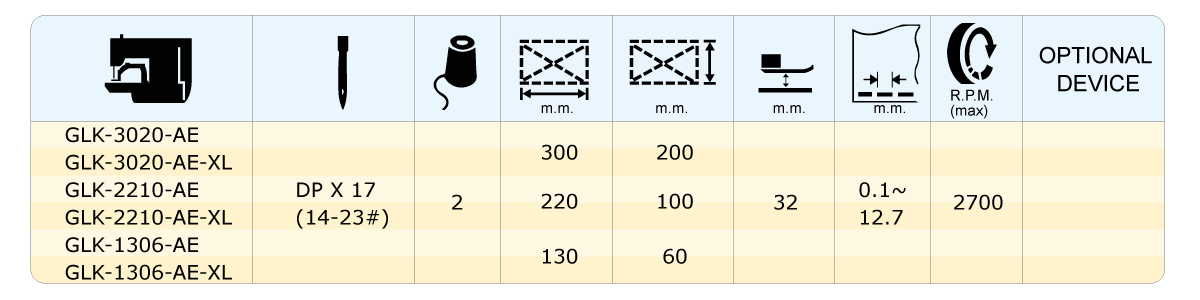

Optional Device |
|---|---|---|---|---|---|---|---|---|
| GLK-3020-AE | DP x 17(14-23#) | 2 | 300 | 200 | 32 | 0.1~12.7 | 2700 | - |
| GLK-3020-AE-XL | DP x 17(14-23#) | 2 | 300 | 200 | 32 | 0.1~12.7 | 2700 | - |
| GLK-2210-AE | DP x 17(14-23#) | 2 | 220 | 100 | 32 | 0.1~12.7 | 2700 | - |
| GLK-2210-AE-XL | DP x 17(14-23#) | 2 | 220 | 100 | 32 | 0.1~12.7 | 2700 | - |
| GLK-1360-AE | DP x 17(14-23#) | 2 | 130 | 60 | 32 | 0.1~12.7 | 2700 | - |
| GLK-1360-AE-XL | DP x 17(14-23#) | 2 | 130 | 60 | 32 | 0.1~12.7 | 2700 | - |
