Application Description :
- Two - Stepping Motor Type Needle Feeding。

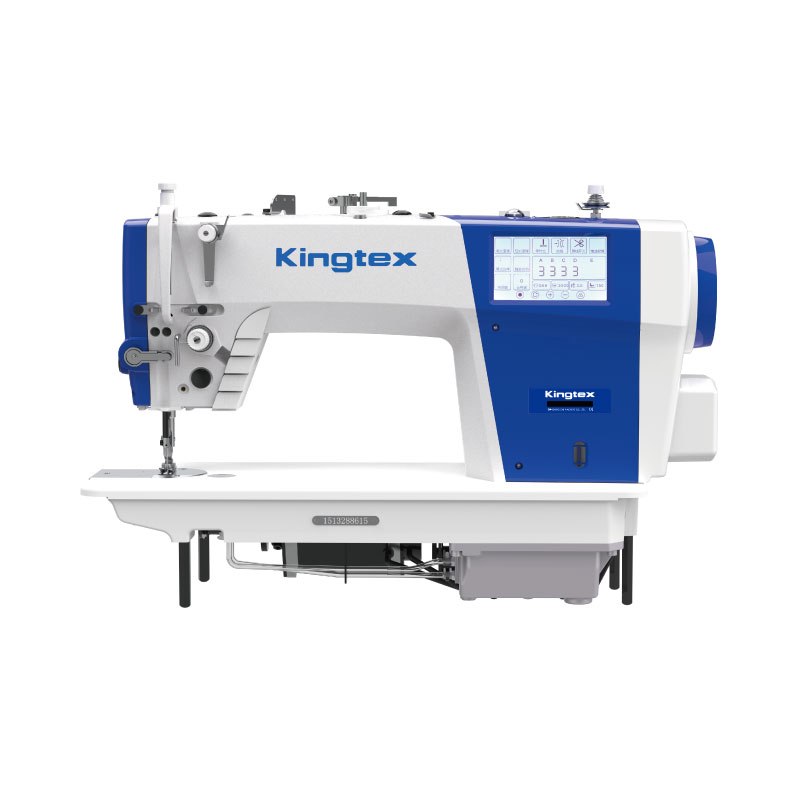

- Touch Screen, Electronic knee control。
- The machine adopt connecting rod control feeding system, the needle feeding method make the feeding system more stable, during multi-sewing the fabric not easy to moving.
- The main shaft is directly used as the motor shaft, no needto use a coupling to connect, the main shaft has good rigidity, light torque, and the motor runs lightly
- Simple, stable and easy maintenance stepping motor control trimming and presser foot lifting mechanism.
-
Special Stitch Pattern
Since controlled by stepping motor system, machine can design 8 diferent types of stitch patterns (see left side pictures1-8). - Stepping motor controls presser foot lifting and thread trimming (patented technology): convenient for presser footheight adjustment, presser foot lifting and lowering noiseless, no noise for thread trimming
- Stepping motor controls the stitch length and reverse stitching: precise stitch length, no noise in reverse stitching;The front and back dense sewing function effectively shortens the length of the thread left on the sewing material and prevents the thread from loosening.
 |
 |
Stepping Motor |  |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| KLD-1000NF-M R | 0~5 | Double | M | H : 6 K : 12 |
- | ● | Double | 3mm | #7 ~ #16 | 4500 |
| KLD-1000NF-H R | 0~5 | Double | H | H : 6 K : 12 |
- | ● | Double | 3mm | #7 ~ #16 | 4500 |
Appearance Differences

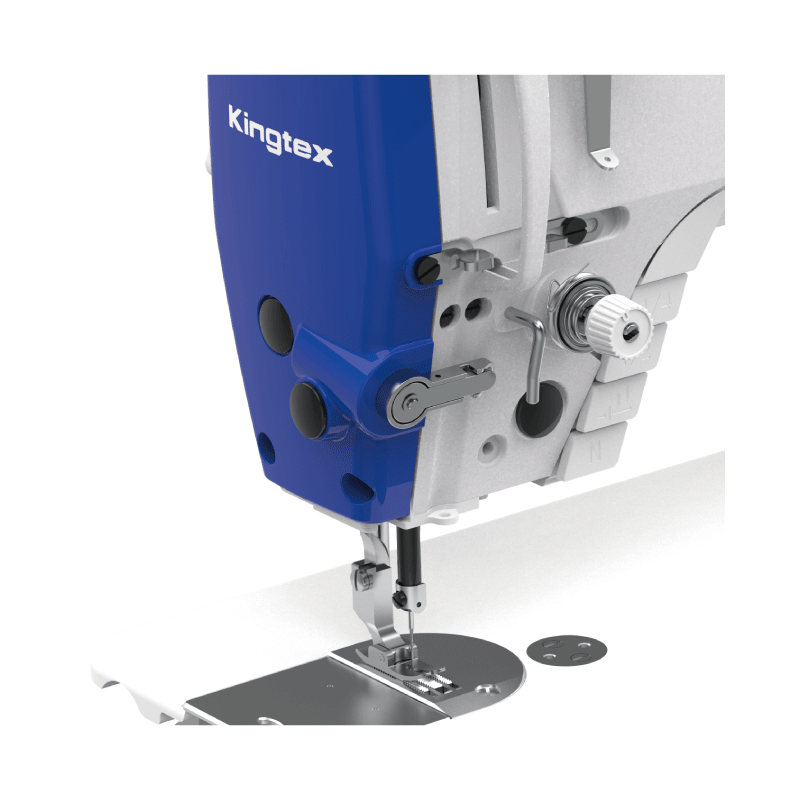

KLD-1000NF

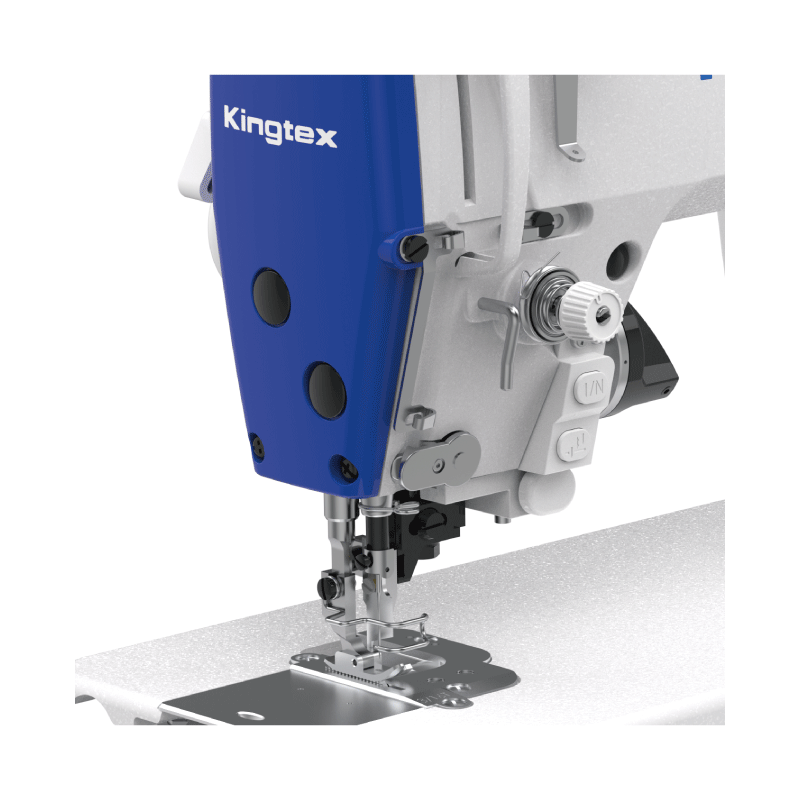

KLD-1010

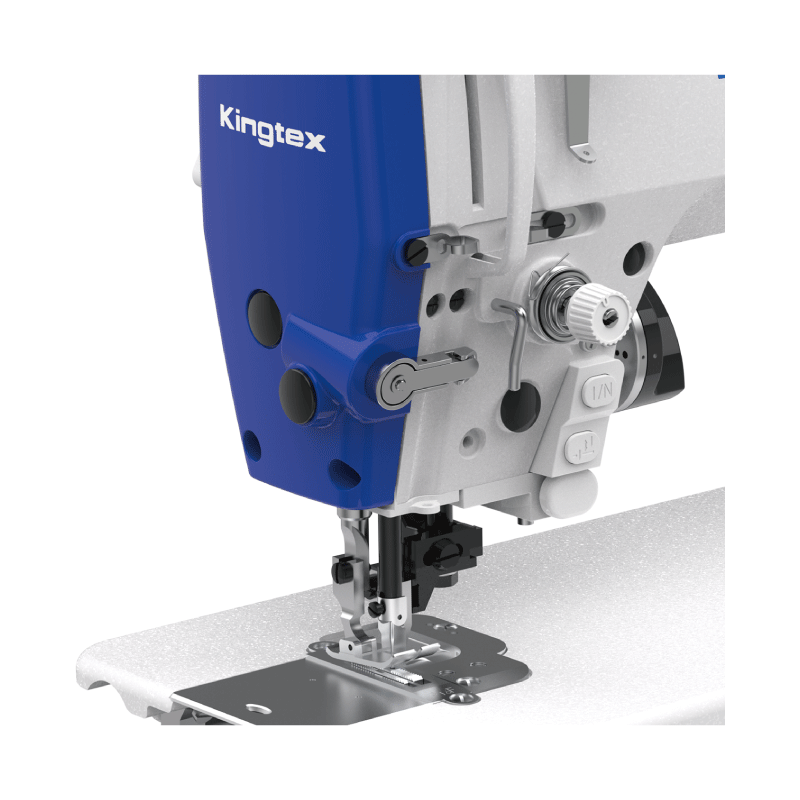

KLD-1010 NF
