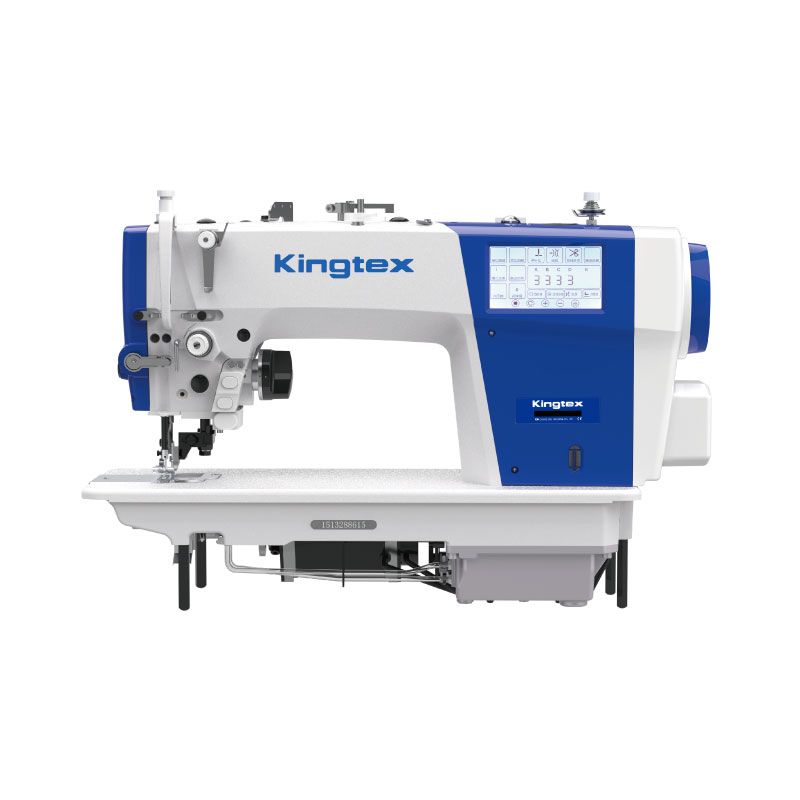

KLD1010NF Kingtex - Sewing Machine

Application Description :

Two - Stepping Motor Type Needle Feeding with Right Edge Trimmer.
Touch Screen，Electronic knee control.
The machine adopt connecting rod control feeding system, the needle feeding method make the feeding system more stable, during multi-sewing the fabric not easy to moving.
The main shaft is directly used as the motor shaft, no needto use a coupling to connect, the main shaft has good rigidity, light torque, and the motor runs lightly.
Stepping motor controls presser foot lifting and thread trimming (patented technology): convenient for presser footheight adjustment, presser foot lifting and lowering noiseless, no noise for thread trimming
It can realize the function of changing stitch length to make up the needle.
Clutchable knife switch：
Realize the switching of cutting and non-cutting sewing functions.
Special Stitch Pattern
Since controlled by stepping motor system, machine can design 8 diferent types of stitch patterns (see left side pictures1-8).
Stepping motor controls the stitch length and reverse stitching: precise stitch length, no noise in reverse stitching;The front and back dense sewing function effectively shortens the length of the thread left on the sewing material and prevents the thread from loosening.
