Application Description :
- KZD-2290A-SR Double
- KZD-2290A-SS Single
- Direct-drive Computer Control Zigzag Lockstitch Machine.
| Model | Stepping Motor | Standard Pattern | ROM Pattern |  |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KZD-2290A-SR | 2 | 8 types/14 patterns | 300 | - | - | - | MAX. 10mm | ±2.5mm | #10~#14 | 5.5/10 | MAX.5000 |
| KZD-2290A-SR-7/P | 2 | 300 | ● | ● | ● | MAX. 10mm | ±2.5mm | #10~#14 | 5.5/10 | MAX.5000 | |
| KZD-2290A-SS | 1 | 50 | - | - | - | MAX. 10mm | 2.5mm | #10~#14 | 5.5/10 | MAX.5000 | |
| KZD-2290A-SS-7/P | 1 | 50 | ● | ● | ● | MAX. 10mm | 2.5mm | #10~#14 | 5.5/10 | MAX.5000 |

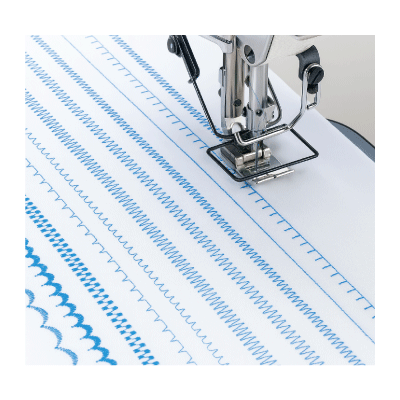

Standard Pattern
| Name of pattern | Straight stitch | Standard zigzag | 2-step zigzag | 3-step zigzag | Scallop (left) Standard |
Scallop (left) Crescent |
Scallop (left) Equal-width |
Scallop (left) Equal-width |
Scallop (right) Standard |
Scallop (right) Crescent |
Scallop (right) Equal-width |
Scallop (right) Equal-width |
Blind stitch (left) | Blind stitch (right) | Custom pattern |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stitch Pattern |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Number of stitches | 1 | 2 | 4 | 6 | 24 | 24 | 24 | 12 | 24 | 24 | 24 | 12 | 3~250 | 3~250 | Max.500 |
Stitch Pattern
