Application Description :
- UVP-X1 Pneumatic Type Thread Trimming System (Feed-Up-The-Arm Interlock Machine )
- UVE-X1 Electric Type Thread Trimming System (Feed-Up-The-Arm Interlock Machine )
- UVP-X1 / UVE-X1 Suitable for all VX1500/ VXD1500 series machines, but only supply together with machine head.
- UVP-X1 / UVE-X1 Compressed air is required，(5kg/cm 2 或 70PSI)。
- UVP-L1 Pneumatic Type Thread Trimming System (Long Arm, Feed-Up-The-Arm Interlock Machine)
- UVP-L1 Suitable for all Vl1500/ VlD1500 series machines, but only supply together with machine head.
- UVP-L1 Compressed air is required，(5kg/cm 2 或 70PSI)。
UVP-X1
1
2
3
4
1

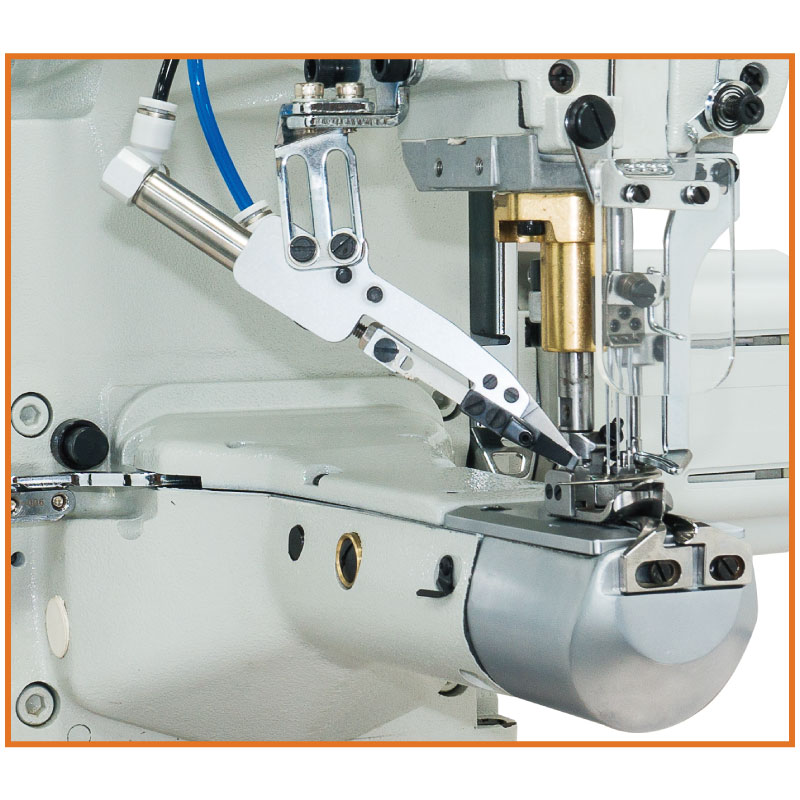

Under bed thread trimmer device
2
Model V : Feed-Up-The-Arm Direct Drive Type Interlock Machine
3
Power P:Pneumatic Type E:Electric Type
4
Combination of devices
Elastic Type Thread Trimmer
| UVE-□□ | Under Bed Thread Trimmer | Top Cover Thread Trimmer | Wiper | Presser Foot Lifter | Application | Part List |
|---|---|---|---|---|---|---|
| X1 | UTCVX1 | STCVX1 | - | PFEV1 | VX |
|
| X2 | UTCVX1 | - | WPGVX1 | PFEV1 | VX |
Pneumatic Type Thread Trimmer
| UVP-□□ | Under Bed Thread Trimmer | Top Cover Thread Trimmer | Wiper | Presser Foot Lifter | Application | Part List |
|---|---|---|---|---|---|---|
| X1 | UTBVX1 | STBVX1 | - | ALVX1 | VX |
|
| X2 | UTBVX1 | - | WPCVX1 | ALVX1 | VX | |
| L1 | UTBVL1 | STBVL1 | - | ALVL1 | VL |
|
| L2 | UTBVL1 | - | WPCVL1 | ALVL1 | VL |
UVP-□□
