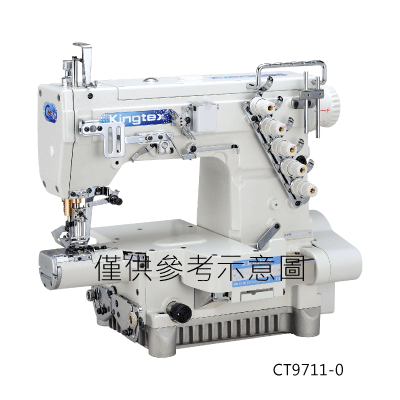

CTU9711Bottom Hemming

Parts List+

Catalog+

Categories： CT/CX series, Interlock, CTU97, CTU98 series

Application Description :

Top Feed, Small Cylinder Bed / Bottom Hemming
For Thin, Light Weight Material And Medium Weight Material
Men’s & women’s underwears, sports wears — etc.
Light to medium weight material.
Cylinder bed design with circumference of 180 m.m.
With simple adjustment design, it is very easy to adjust the machine.

11										Optional
CTU9711-0-240M CTU9711-1-240M	2	4	4.0	1.4~3.6	1:0.3~1:2.9	1-6	5	#11	4500	UCP-FD / UCE-FD
CTU9711-0-348M CTU9711-1-348M	3	5	4.8	1.4~3.6	1:0.3~1:2.9	1-6	5	#11	4500	UCP-FD / UCE-FD
CTU9711-0-356M CTU9711-1-356M	3	5	5.6	1.4~3.6	1:0.3~1:2.9	1-6	5	#11	4500	UCP-FD / UCE-FD
CTU9711-0-364M CTU9711-1-364M	3	5	6.4	1.4~3.6	1:0.3~1:2.9	1-6	5	#11	4500	UCP-FD / UCE-FD
CTU9711-0-348L	3	5	4.8	1.4~3.6	1:0.3~1:2.9	1-6	5	#9	4500	UCP-FD / UCE-FD
CTU9711-0-356L	3	5	5.6	1.4~3.6	1:0.3~1:2.9	1-6	5	#9	4500	UCP-FD / UCE-FD
CTU9711-0-364L	3	5	6.4	1.4~3.6	1:0.3~1:2.9	1-6	5	#9	4500	UCP-FD / UCE-FD
CTU9711-0-348X	3	5	4.8	1.4~3.6	1:0.3~1:2.9	1-6	5	#14	4500	UCP-FD / UCE-FD
CTU9711-0-356X	3	5	5.6	1.4~3.6	1:0.3~1:2.9	1-6	5	#14	4500	UCP-FD / UCE-FD
CTU9711-0-364X	3	5	6.4	1.4~3.6	1:0.3~1:2.9	1-6	5	#14	4500	UCP-FD / UCE-FD
CTU9711-0-0100	1	2	0.0	1.4~3.6	1:0.3~1:2.9	1-6	5	#20	4000	UCP-FD / UCE-FD

Cloth

Top Feeding

Thread Trimming System
