Flat bed interlock/ Auto Thread Trimmer SetUFP-□, UFE-□

FT7000 使用说明书
Features
Related
Product Menu

Application Description :

  • UFP-A & UFE-A, UFP-C & UFE-C Suitable for all FT7000 series machines, but only supply together with machine head.
  • UFP-B & UFE-B, UFP-D & UFE-D Suitable for all FTD7000 series machines, but only supply together with machine head.
  • UFP-FB & UFE-FB, UFP-FD & UFE-FD Suitable for all FTU7011 series machines, but only supply together with machine head.
  • Should be used together with AC servo motor or E.C.motor.(UFP-A, UFE-A, UFP-C, UFE-C )
  • Pneumatic Type : Compressed air is required，(5kg/cm2 或 70PSI)
Features
U
F
E
-
C 1

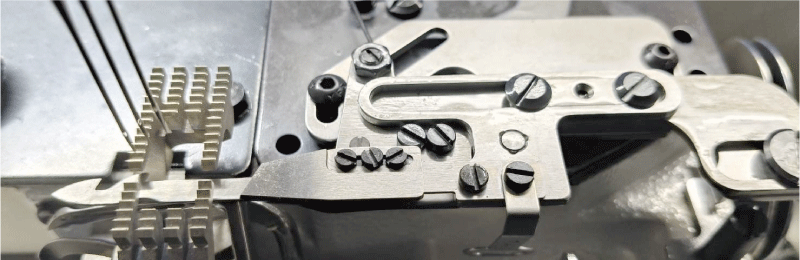

  • Under bed thread trimmer device
  • Model C:Cylinder bed interlock F:Flat bed interlock
  • Power P:Pneumatic Type E:Electric Type
  • Combination of devices

UFP-□□

WPC/ WPC02
STD/ STD03
UTD□□
STB04
WPC03
Under Trimmer (straight blade)
Under Trimmer (curved blade)

Pneumatic Type Thread Trimmer

UFP-□□Under TrimmerTop TrimmerWiperPresser Foot LifterValveApplicationParts List
A1UTD02 (curved blade)STD-✓2FT7000


UTD02/UTE02
A2UTD02 (curved blade)-✓✓2FT7000
A3UTD02 (curved blade)STD✓*✓2FT7000
A4UTD02 (curved blade)--✓2FT7000
AAUTD04 (curved blade)--✓2FT7060
B1UTD07F (curved blade)STB04-✓2FTD7000


UTD07 / UTE07
B2UTD07 (curved blade)-✓✓2FTD7000
B3UTD07 (curved blade)STD03✓*✓2FTD7000
B4UTD07 (curved blade)--✓2FTD7000
BAUTD07B (curved blade)STD03-✓2FTD7060
FB1UTD07F (curved blade)STB04-✓2FTU7011


UTD07F / UTE07F
FB2UTD07F (curved blade)-WPC03✓2FTU7011
FB3UTD07F (curved blade)STB04*WPC03✓2FTU7011
FB4UTD07F (curved blade)--✓2FTU7011
FBAUTD07BF (curved blade)STB04-✓2FTU7060
C1UTD06 (straight blade)STD-✓2FT7000


UTD06/UTE06
C2UTD06 (straight blade)-✓✓2FT7000
C3UTD06 (straight blade)STD✓*✓2FT7000
C4UTD06 (straight blade)--✓2FT7000
CAUTD06B (straight blade)--✓2FT7060
D1UTD08 (straight blade)STD03-✓2FTD7000


UTD08 / UTE08
D2UTD08 (straight blade)-✓✓2FTD7000
D3UTD08 (straight blade)STD03✓*✓2FTD7000
D4UTD08 (straight blade)--✓2FTD7000
DAUTD08B (straight blade)STD03-✓2FTD7060
FD1UTD08F (straight blade)STB04-✓2FTU7011


UTD08F / UTE08F
FD2UTD08F (straight blade)-WPC03✓2FTU7011
FD3UTD08F (straight blade)STB04*WPC03✓2FTU7011
FD4UTD08F (straight blade)--✓2FTU7011
FDAUTD08BF (straight blade)STB04-✓2FTU7060
* Packed in the accessories box
**氣動UT組尾碼, 無: SMC, C:氣立

UFE-□□

WPH□□
STE02/ STE03
UTE□□
STE02/ STE03
Under Trimmer (straight blade)
Under Trimmer (curved blade)

Elastic Type Thread Trimmer

UFE-□□Under TrimmerTop TrimmerWiperPresser Foot LifterApplicationParts List
A1UTE02 (curved blade)STE-✓FT7000


UTD02/UTE02
A2UTE02 (curved blade)-✓✓FT7000
A3UTE02 (curved blade)STE✓*✓FT7000
A4UTE02 (curved blade)--✓FT7000
B1UTE07 (curved blade)STE03-✓FTD7000


UTD07 / UTE07
B2UTE07 (curved blade)-✓✓FTD7000
B3UTE07 (curved blade)STE03✓*✓FTD7000
B4UTE07 (curved blade)--✓FTD7000
FB1UTE07F (curved blade)STC04-✓FTU7011


UTD07F / UTE07F
FB4UTE07F (curved blade)--✓FTU7011
C1UTE06 (straight blade)STE-✓FT7000


UTD06/UTE06
C2UTE06 (straight blade)-✓✓FT7000
C3UTE06 (straight blade)STE✓*✓FT7000
C4UTE06 (straight blade)--✓FT7000
D1UTE08 (straight blade)STE03-✓FTD7000


UTD08 / UTE08
D2UTE08 (straight blade)-✓✓FTD7000
D3UTE08 (straight blade)STE03✓*✓FTD7000
D4UTE08 (straight blade)--✓FTD7000
FD1UTE08F (straight blade)STC04-✓FTU7011


UTD08F / UTE08F
FD4UTE08F (straight blade)--✓FTU7011
* Packed in the accessories box

Compressed Air

Compressed AirAir Pressure

(kgf/cm2)		onsumption *

(liter/ min)
UFP

(Thread Trimming Only		4~510
UFP + Device

(FTD 7069/CV, FTD7000/KI)		5~640
*  Empirical value for reference
