Right Edge Trimming/ Elastic Tape Attaching/ Fine Tape Binding

Application Description :
  • Right Edge Trimming/ Elastic Tape Attaching/ Fine Tape Binding
  • The machine is equipped with right edge trimmer, which can trim the fabric edge to align the tape. Two sewing types: Tape attaching / Fine tape binding.

FTD7069-6
69 Optional Device
FT 7069-0-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

KI002

SE005

TC009
TCS09
FT 7069-0-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-0-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-1-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-1-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-2-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-2-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-3-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

TC019
TCS19 SE005
FT 7069-3A-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 -
FT 7069-4-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FT 7069-4-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-4-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FT 7069-5-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-A
UFE-A

SE005
FTD7069-4-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-4-240M 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-248M 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-356M 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-364M 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-232L 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-240L 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-356L 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-4-364L 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-5-232M 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-6-232M
FTD7069-6A-232M		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FTD7069-6-240M
FTD7069-6A-240M		 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-248M
FTD7069-6A-248M		 2 4 4.8 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-356M
FTD7069-6A-356M		 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-364M
FTD7069-6A-364M		 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-232L
FTD7069-6A-232L		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-240L
FTD7069-6A-240L		 2 4 4.0 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-356L
FTD7069-6A-356L		 3 5 5.6 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-6-364L
FTD7069-6A-364L		 3 5 6.4 1.4~4.0 0.7~2.0 5 #11 4500
FTD7069-7-232M
FTD7069-7A-232M		 2 4 3.2 1.4~4.0 0.7~2.0 5 #11 4500 UFP-B
UFE-B

SE005
FT7069-0 Parts List +
FT7069-1 Parts List +
FT7069-2 Parts List +
FT7069-3 Parts List +
FT7069-3A Parts List +
FT7069-5 Parts List +
FTD7069-2 Parts List +
FTD7069-4 Parts List +
FTD7069-6 Parts List +
FTD7069-7 Parts List +
User's Manuals
Catalog
Feature 1
Feature 2
Thread Trimming System
Optional Device
Feature 1
Model picturew picturew picturew Right Edge Trimmer Small Tape Binder Tape Metering Feeding
FT7069-0 ● Rod type
FT7069-1 Rod type
FT7069-2 ● User’s configuration
FT7069-3 ● ● Rod type
FT7069-3A ● ● User’s configuration
FT7069-4
FTD7069-4		 ● Gearbox
FT7069-5
FTD7069-5		 ● ● Gearbox
FTD7069-6   ● Electrical type
FTD7069-6A   ● Electrical type + Panel
FTD7069-7   ● ● Electrical type
FTD7069-7A   ● ● Electrical type + Panel

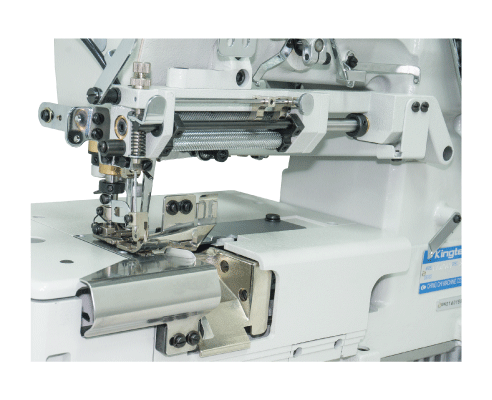

Feature 2
FT7069-0
FT7069-2
FT7069-4
FTD7069-4
FTD7069-6		 Top feeding tape/
Elastic tape Attachin
Max. Tape Width
Lace tape : 80mm
Elastic tape: 25m
FT7069-3
FT7069-3A
FT7069-5
FTD7069-5
FTD7069-7		 Top feeding tape/
Fine tape binding
Tape width:
16mm, 15mm, 18mm
Thread Trimming System
Optional Device
SE005
TC009/ TCS09
