Application Description :
- 2-Side Trimming Flatseaming
- When overlapping the 2 trimmed fabric ply, due to the fabric conditions (thickness, elasticity…, etc.), corresponding presser foot grooves, shoes, tongues, blades, lap former…, etc. are required to make the sewing smooth.

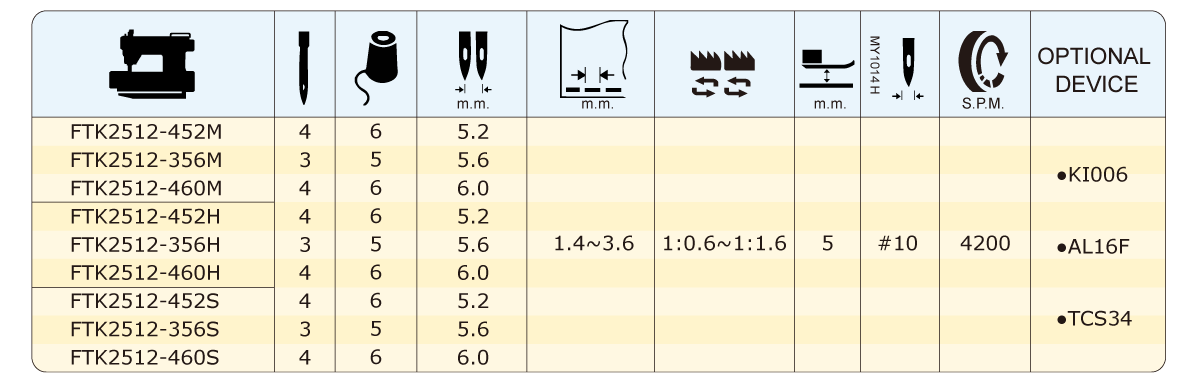

| 12 |  |
 |
 |
 |
 |
 |
 |
Fabric Thickness |  |
Optional Device |
|---|---|---|---|---|---|---|---|---|---|---|
| FTK2512-0-452M | 4 | 52 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | M | 4200 | KI006 TCS34 |
| FTK2512-0-460M | 4 | 60 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | M | 4200 | |
| FTK2512-0-356M | 3 | 56 | 5 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | M | 4200 | |
| FTK2512-0-452H | 4 | 52 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | H | 4200 | KI006 TCS34 |
| FTK2512-0-460H | 4 | 60 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | H | 4200 | |
| FTK2512-0-356H | 3 | 56 | 5 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | H | 4200 | |
| FTK2512-0-452S | 4 | 52 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | S | 4200 | KI006 TCS34 |
| FTK2512-0-460S | 4 | 60 | 6 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | S | 4200 | |
| FTK2512-0-356S | 3 | 56 | 5 | 1.4~3.6 | 0.6~1.6 | 5 | 31 | S | 4200 |
Seam Diagram
| Classification | Trimming | Seam Diagram |
|---|---|---|
| 12 |  |
 |
Optional Device
AL16F
KI006
TCS34
