Application Description :

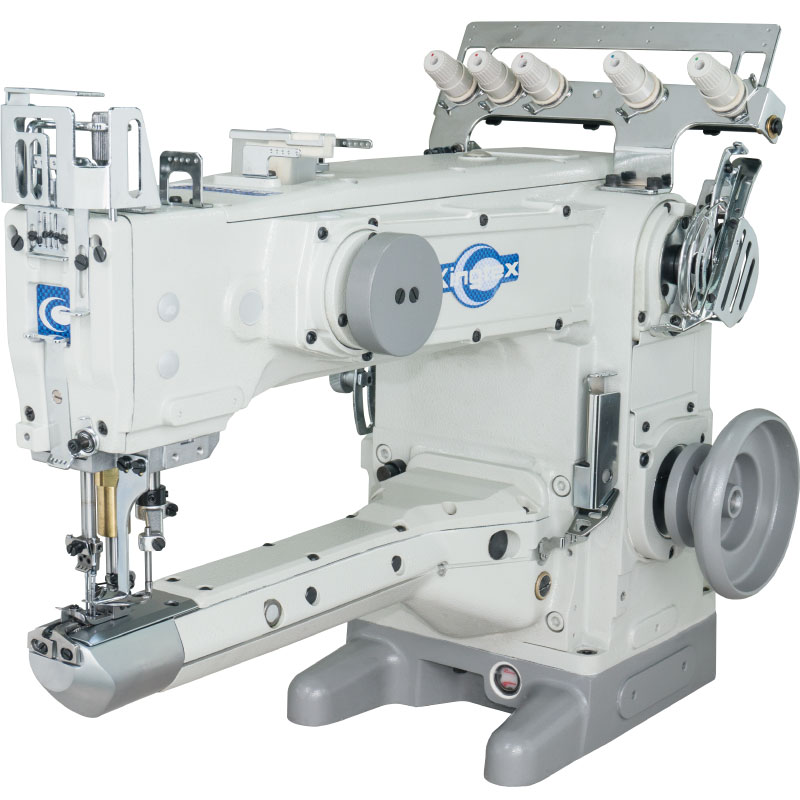

- Feed-Up-The-Arm Interlock Machine(Long Arm)
- Applicable to stitch covering and hemming work on all kinds of small tubular kintwear, sports wear, T-shirts, underwear, etc.
- 3 in one type : folding over type and flattening out type for seam covering application and bottom hemming type.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Optional Device |
|---|---|---|---|---|---|---|---|---|---|

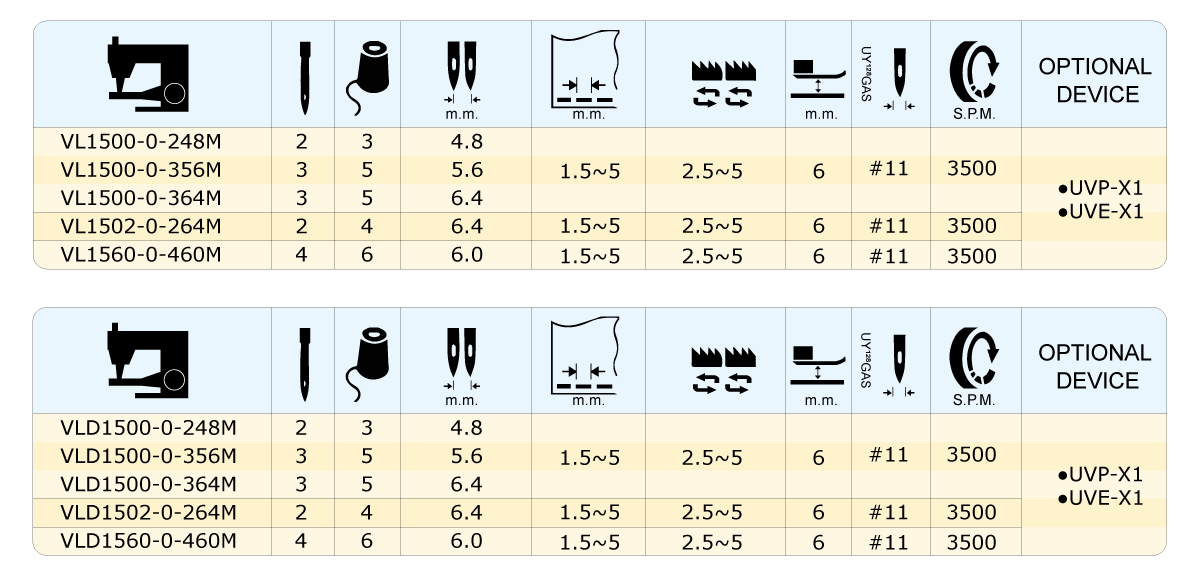

| VL1500-0-248M | 2 | 3 | 4.8 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
| VL1500-0-356M | 3 | 5 | 5.6 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
| VL1500-0-364M | 3 | 5 | 6.4 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
| VLD1500-0-248M | 2 | 3 | 4.8 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
| VLD1500-0-356M | 3 | 5 | 5.6 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
| VLD1500-0-364M | 3 | 5 | 6.4 | 1.5 ~ 5 | 2.5 ~ 5 | 6 | #11 | 3500 | UVP-L1 UVE-L1 |
3-in-1
Flattening Out
VX1513-1
VX1513-1
Folding Over,
VX1513-2
VX1513-2
bottom hemming type
Thread Trimming System
