• Condensed Stitch Device

CS

CS□	picture	cloth	Application	Parts List	video
CS001		CT9085, CTD9085	-		-
CS01P			✓		-
CS002		CT90, CTD90	-		-
CS003		CT9311, CTD9311	-		-
CS004, CS04A		CT97, CTD97, CXM27, CTD9811(CS04A) CXM2811(CS04A)	-		CS004
CS04P			✓		-
CS005		CXM20□□ CXM2200 CXM2311	-		-
CS05P			✓		-

Compressed air is required, (5kg/cm² or 70PSI)

• *RP rear puller is synchronized to CS device, and the upper puller’s lifting is setting via control box.

• Tubular Extending Roller Se

TR

TR□	picture	Standard	Optional	Parts List	video
TR001	・[picture]	・[Standard]CT□□42	・[Optional]-	・[Parts List]	・-
TR02A	・[picture]	・[Standard]MT4004, MT4504, MTD4504, MT4604, MTD4604	・[Optional]CT□□42, CT□□11, CT9085, CXM2085	・[Parts List]	・-
TR03A	・[picture]	・[Standard]CT9085, CXM2085	・[Optional]-	・[Parts List]	・-
TR05A	・[picture]	・[Standard]-	・[Optional]CT□□42, CT9085, CTD9085 CXM2085	・[Parts List]	・
TR007	・[picture]	・[Standard]-	・[Optional]Pneumatic, Knee switch	・[Parts List]	・-

• Rear Puller Set

RP

RP□	Picture	Application	A Upper/Lower Rollers (Teeth)	E Upper/Lower Rollers (Teeth)	F Upper/Lower Rollers (Teeth)	Parts List
RPC03□ RP003□	・[picture]	・[Application]CT90, CTD90	・[A Upper/Lower Rollers (Teeth)]Upper 30, Lower 15	・[E Upper/Lower Rollers (Teeth)]Upper 50, Lower 25	・[F Upper/Lower Rollers (Teeth)]Upper/ Lower Flat Rubber	・[Parts List] RPC03 RP003
RPC04□ RP004□	・[picture]	・[Application]CT97, CTD97, CT98, CTD98, CXM27, CXM28	・[A Upper/Lower Rollers (Teeth)]Upper 30, Lower 15	・[E Upper/Lower Rollers (Teeth)]Upper 50, Lower 25	・[F Upper/Lower Rollers (Teeth)]Upper/ Lower Flat Rubber	・[Parts List] RPC04 RP004
RPC08□ RP008□	・[picture]	・[Application]CXM20, CXM25, CXM40	・[A Upper/Lower Rollers (Teeth)]Upper 30, Lower 15	・[E Upper/Lower Rollers (Teeth)]Upper 50, Lower 25	・[F Upper/Lower Rollers (Teeth)]Upper/ Lower Flat Rubber	・[Parts List] RPC08 RP008

• Double Covering Stitch

DC

DC	Picture	cloth	Application	Parts List
DC001, DC002	・[picture]	・[cloth]	・[Application]DC001 : CTD9000 Standard Dedicated, DC002 : CT9000 Standard Dedicated	・[Parts List]

Do not use when cutting (UT series)

• Pneumatic Presser Foot Pressure Regulator

AP015, AP15A

AP	picture	Directions	Application	Parts List
AP015	・[picture]	・[Directions] With the air pressure valve, the pressure value is done by digital setting. When sewing across the material thickness changing, the pressure keeps constant.	・[Application]CTD9000, CTD9711, CXM2711, CXM2000	・[Parts List]
AP15A	・[picture]	・[Directions] With the air pressure valve, the pressure value is done by digital setting. When sewing across the material thickness changing, the pressure keeps constant.	・[Application]CTD9000, CTD9711, CXM2711, CXM2000	・[Parts List]

• Pneumatic Hemming Edge Guide

EG

EG	Picture	Application	Parts List	video
EG009, EG010	・[picture]	・[Application]EG009 : CT9011 CTD9011, CTU9011 EG010 : CT9311, CTD9311, CTU9311	・[Parts List]EG009 EG010	・EG010

Euqipped With optical sensor for accurate sewing.

• Tape Cutter Devic

TCS

TCS	Picture	Directions	Application	Parts List
TCS31, TCS32	・[picture]	・[Directions]Max. cutting width 18 mm. The gap between knife and presser foot is 28 mm.	・[Application]TCS31 : CTD9700 TCS32 : CXM2000	・[Parts List]TCS31 TCS32

• Air-Blowing Type Anti-Curling Device

UN

	Picture	Standard	Application	Parts List
UN002	・[picture]	・[Standard]CTD9811, CXM2311	・[Application]CT9311, CTD9311, CTU9311	・[Parts List]

• Air-Blowing Type Anti-Curling Presser Foot (Patent)UN002

AF01□

	picture	□ Gauge	Standard	Application	Parts List
AF01□	・[picture]	・[□ Gauge]A : 240 B : 248 C : 356 D : 364	・[Standard]CXM2085	・[Application]CT9085, CTD9085, CXM2085	・[Parts List]

• Tape Binder

TB

TB	picture	Directions	Application	Parts List
TB002	・[picture]	・[Directions]Using Pre-Cut Strip Tapes, Fast Continuous Seaming Can Be Achieved Easily. Using Convenient Adjustable Bracket, Suitable or Different Kinds Of Sewing Requirement.	・[Application] CT, FT	・[Parts List]

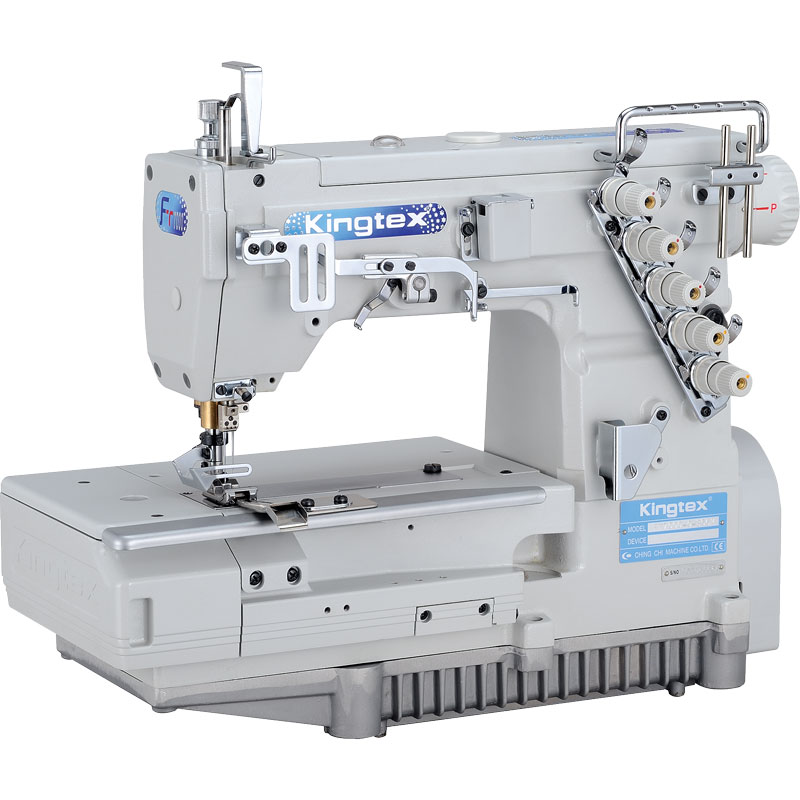

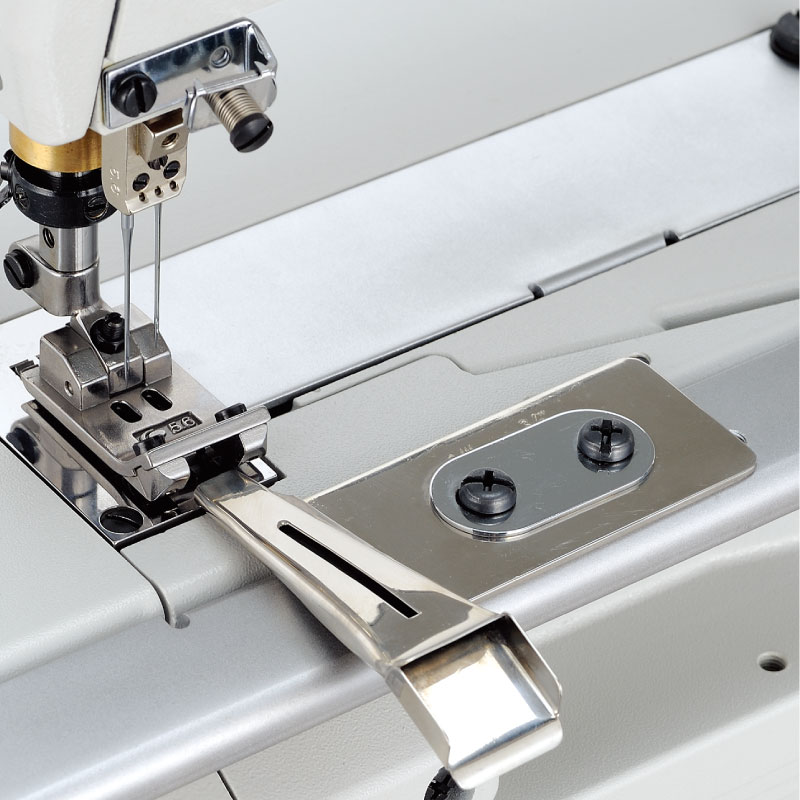

TB003	・[picture]	・[Directions]Can Sew Pre-Cut Tapes Fast And Easily Into Belt Loop.	・[Application] CT, FT	・[Parts List]

Walking Foot

WF

	Picture	Directions	Application	Parts List
WF	・[picture]	・[Directions]Corresponding to the stroke of feed dog, the presser foot slides back and forth to provide the minimum pressure, which is applicable to light material or fabrics that are prone to creasing.	・[Application] CT9000, CTD9011	・[Parts List]

• Tape Stand

TS

TS	Directions	Application	Parts List
TS003	・[Directions]Top feeding	・[Application] FTD7002, FTD7069, CT9003	・[Parts List]
TS005	・[Directions]Side feeding	・[Application] FTD7003	・[Parts List]
TS008	・[Directions]Side feeding (with guide post)	・[Application] FTD7003, CTD9003, CXM20A3	・[Parts List]
TS010	・[Directions]Bottom feeding with tape folder	・[Application] FTD7003	・[Parts List]

• Tape Feeding Device

TF□​

TF□	Picture	Description	width(Max)	Application
TFU	・[Picture]top-feeding type	・[Description]Ensure that the tap (elastic or knitted fabric) is tension-free before it enters the tension control device.	・[width(Max)]70mm	・[Application] UH9004-243E, UH9083, UH9084, UH9094, FT7069, FT7002
TFS	・[圖]side-feeding type	・[Description]Ensure that the tap (elastic or knitted fabric) is tension-free before it enters the tension control device.	・[width(Max)]70mm	・[Application] UH9055, UH9075, FT7003, CT9003
