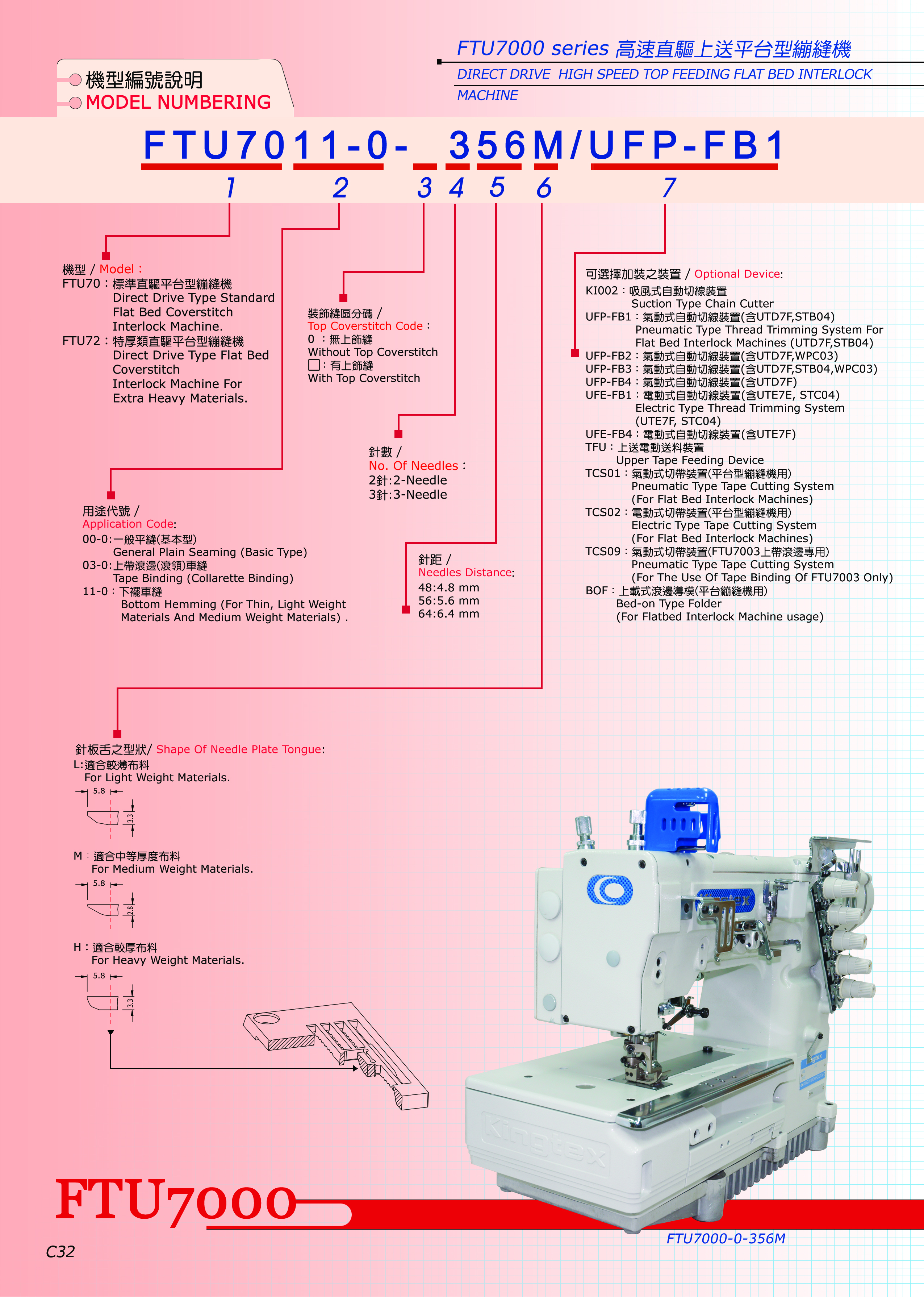

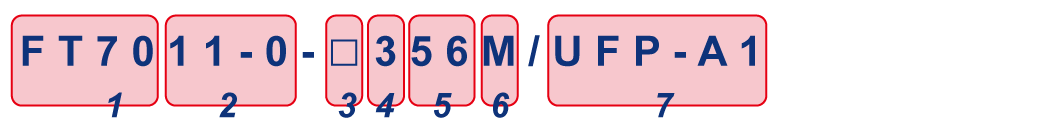

1   Machine Type :

FTU7000 : Direct Drive Type Top Feeding Standard Flat Bed Coverstitch Interlock Machine
FTD7200 : Direct Drive Type Top Feeding Flat Bed Coverstitch Interlock Machine For Heavy Materials.

2   Application Code :

00-0 ：General Plain Seaming (Basic Type)
03-0 : Tape Binding (Collarette Binding)
11-0 ：Bottom Hemming (For Thin, Light Weight Materials )

3   Top Coverstitch Code :

0 : Without Top Coverstitch
□ : With Top Coverstitch

4   Number Of Needle :

2 : 2 Needle
3 : 3 Needle
4 : 4 Needle

5   Needle Distance :

32 : 3.2 mm
40 : 40m.m.
48 : 48m.m.
52 : 52m.m.
56 : 56m.m.
60 : 60m.m.
64 : 64m.m.

6   Shape Of Needle Plate Tongue :

L : For Light Weight Materials

M ：For Medium Weight Materials

H ：For Heavy Weight Materials

7   Optional Device :

UFP-FB1 ：Pneumatic Type Thread Trimming System For Flat Bed Interlock Machines (UTD7F, STB04)
UFP-FB2：Pneumatic Type Thread Trimming System For Flat Bed Interlock Machines(UTD7F, WPC03) UFP-FB3：Pneumatic Type Thread Trimming System For Flat Bed Interlock Machines(UTD7F, STB04, WPC03) UFP-FB4：Pneumatic Type Thread Trimming System For Flat Bed Interlock Machines(UTD7F) UFE-FB1 ：Electric Under Bed Thread Trimming System(UTE7F, STC04)
UFE-FB4 ：Electric Under Bed Thread Trimming System(含UTE7F)
BOF ：Bed-on Type Folder (For Flatbed Interlock Machine usage)
EG030 : Pneumatic Type Bottom Hemming Device
TCS01 ：Pneumatic Type Tape Cutter(For Flat Bed Interlock Machines)
TCS02 ：Electric Type Tape Cutter(For Flat Bed Interlock Machines)
TCS09 ：Pneumatic Type Tape Cutting System (For The Use Of Tape Binding Of FTD7003 Only)
TFU ：Upper Tape Feeding Device
