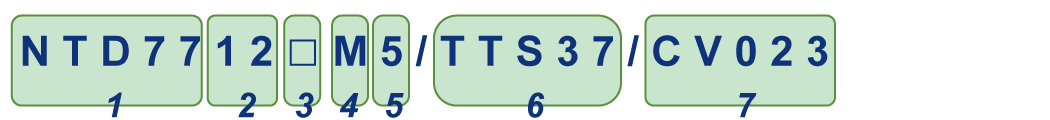

1   4-needle 6-tgread flat seaming :

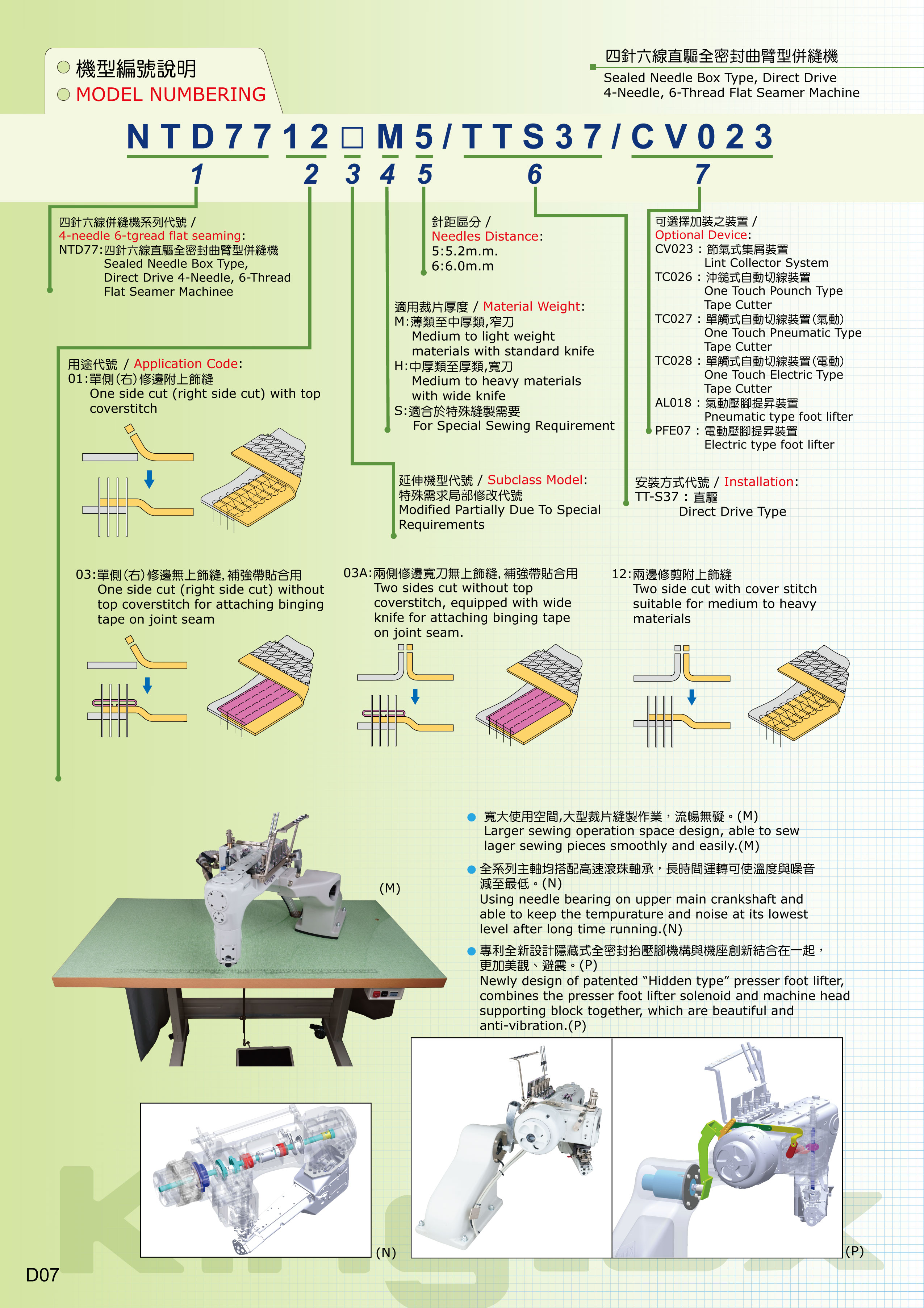

NTD77 : Sealed Needle Box Type, Direct Drive 4-Needle, 6-Thread Flat Seamer Machinee

2   Application Code :

01 : One side cut (right side cut) with top coverstitch

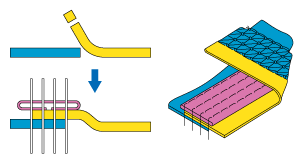

03 : One side cut (right side cut) without top coverstitch for attaching binging tape on joint seam

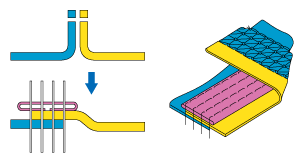

03A : Two sides cut without top coverstitch, equipped with wide knife for attaching binging tape on joint seam


12 : Two side cut with cover stitch suitable for medium to heavy materials

3  Subclass Model :

Modified Partially Due To Special Requirements

4  Material Weight :

M : Medium to light weight materials with standard knife
H : Medium to heavy materials with wide knife.
S : For Special Sewing Requirement.

5  Shape Of Needle Plate Tongue :

52 : 52m.m.
60 : 60m.m.

6   Installation :

TT-S37 : Direct Drive Type

7   Optional Device :

CV023 : Lint Collector System
TC026 : One Touch Pounch Type Tape Cutter
TC027 : One Touch Pneumatic Type Tape Cutter
TC028 : One Touch Electric Type Tape Cutter
AL018 : Pneumatic type foot lifter
PFE07 : Electric type foot lifter
