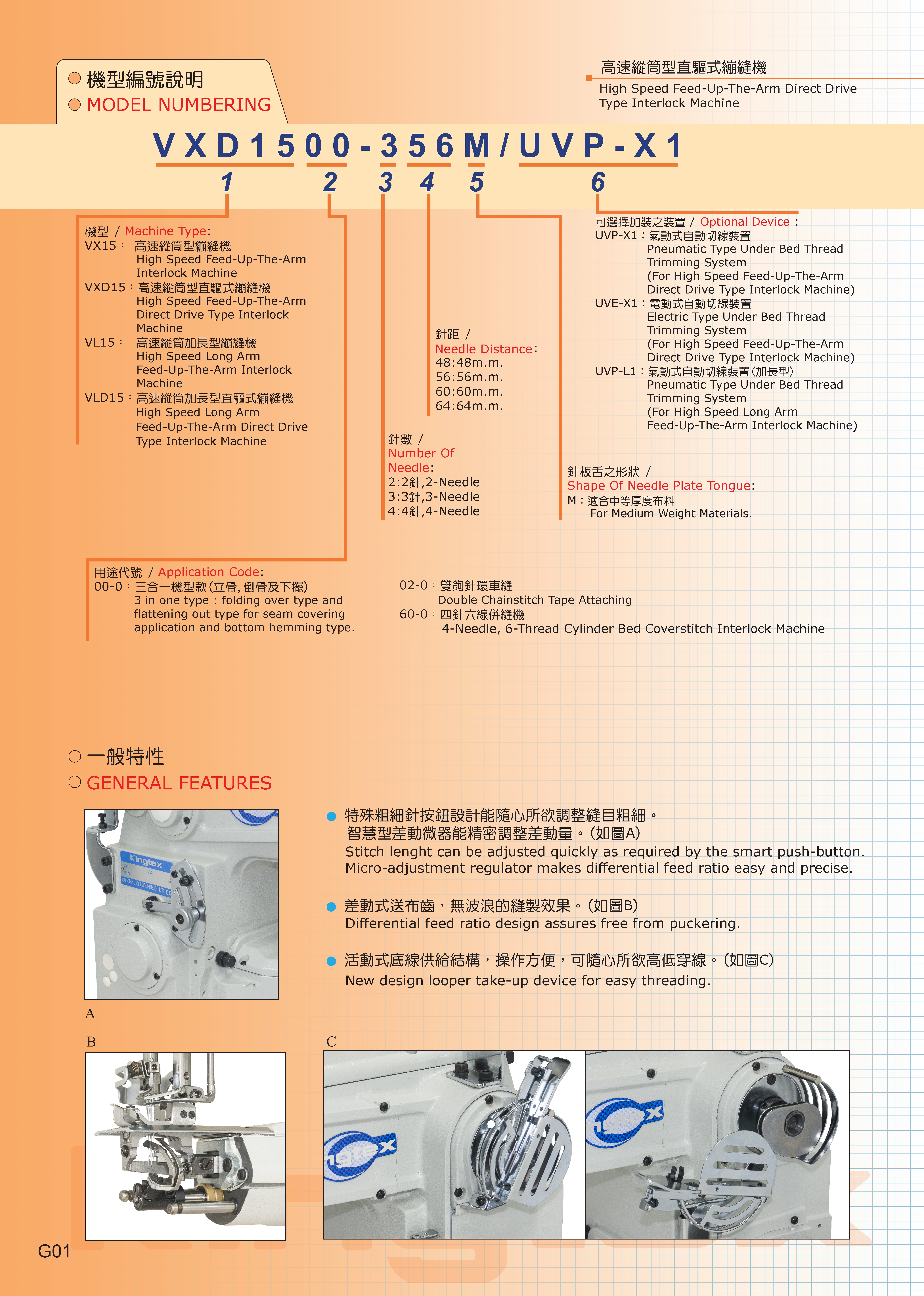

1   Machine Type :

VX15 : High Speed Feed-Up-The-Arm Interlock Machine
VXD15 : High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machinee
VL15 : High Speed Long Arm Feed-Up-The-Arm Interlock Machine
VLD15 : High Speed Long Arm Feed-Up-The-Arm Direct Drive Type Interlock Machine

2   Application Code :

00-0 ：3 in one type : folding over type and flattening out type for seam covering application and bottom hemming type.
02-0 ：Double Chainstitch Tape Attaching
60-0 ：4-Needle, 6-Thread Cylinder Bed Coverstitch Interlock Machine

3  Number Of Needle :

2 : 2-Needle
3 : 3-Needle
4 : 4-Needle

4   Needle Distance :

48:48m.m.
56:56m.m.
60:60m.m.
64:64m.m.

5  Shape Of Needle Plate Tongue :

M ：For Medium Weight Materials.

6   Optional Device :

UVP-X1 ：Pneumatic Type Under Bed Thread Trimming System (For High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machine)
UVE-X1 ：Electric Type Under Bed Thread Trimming System (For High Speed Feed-Up-The-Arm Direct Drive Type Interlock Machine)
UVP-L1 ：Pneumatic Type Under Bed Thread Trimming System (For High Speed Long Arm Feed-Up-The-Arm Interlock Machine)
