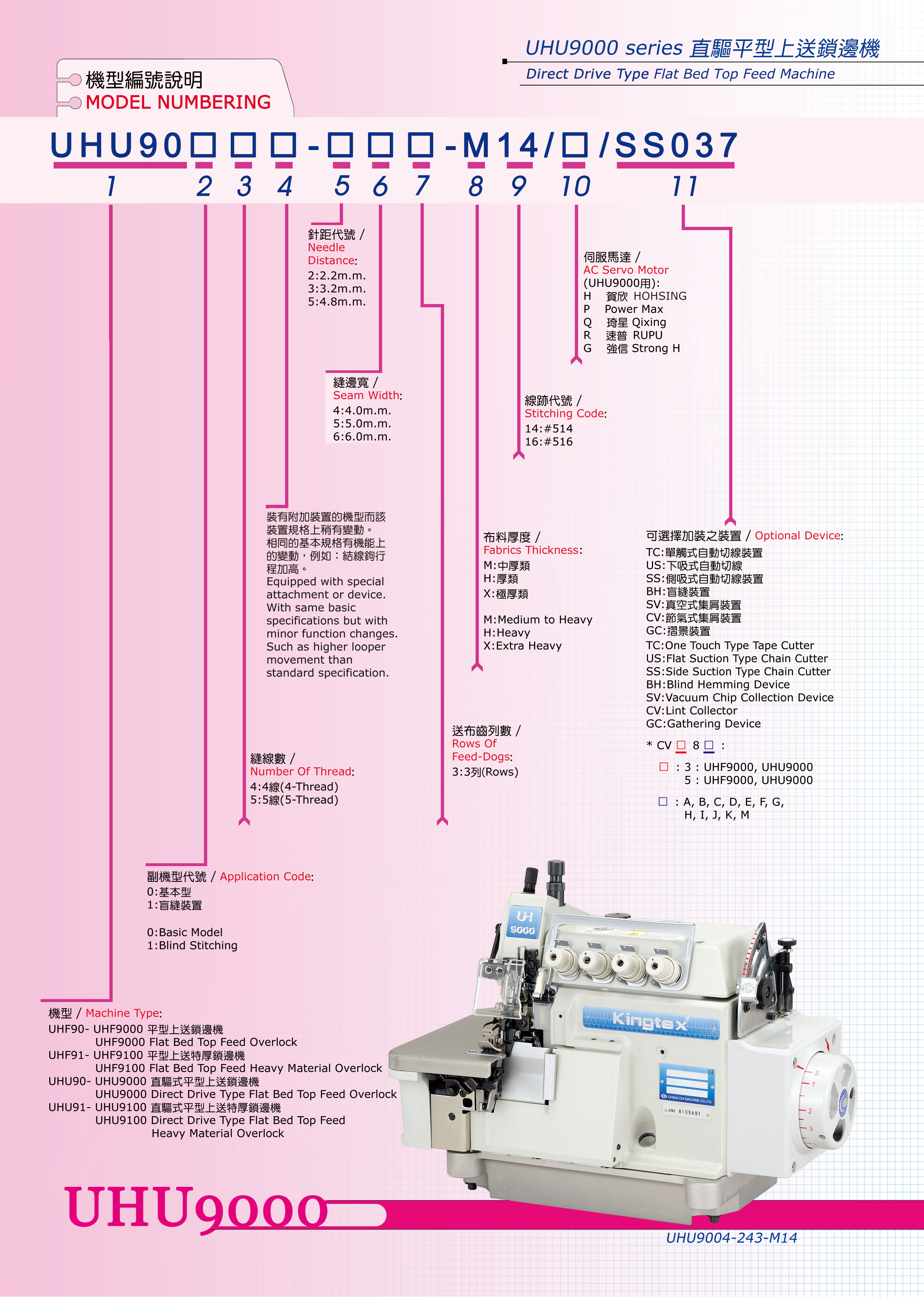

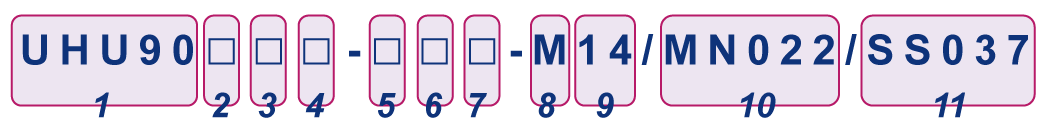

1 Machine Type :
UHU90 : UHU9000 Direct Drive Type Flat Bed Top Feed Overlock
UHU91 : UHU9100 Direct Drive Type Flat Bed Top Feed Heavy Material Overlock

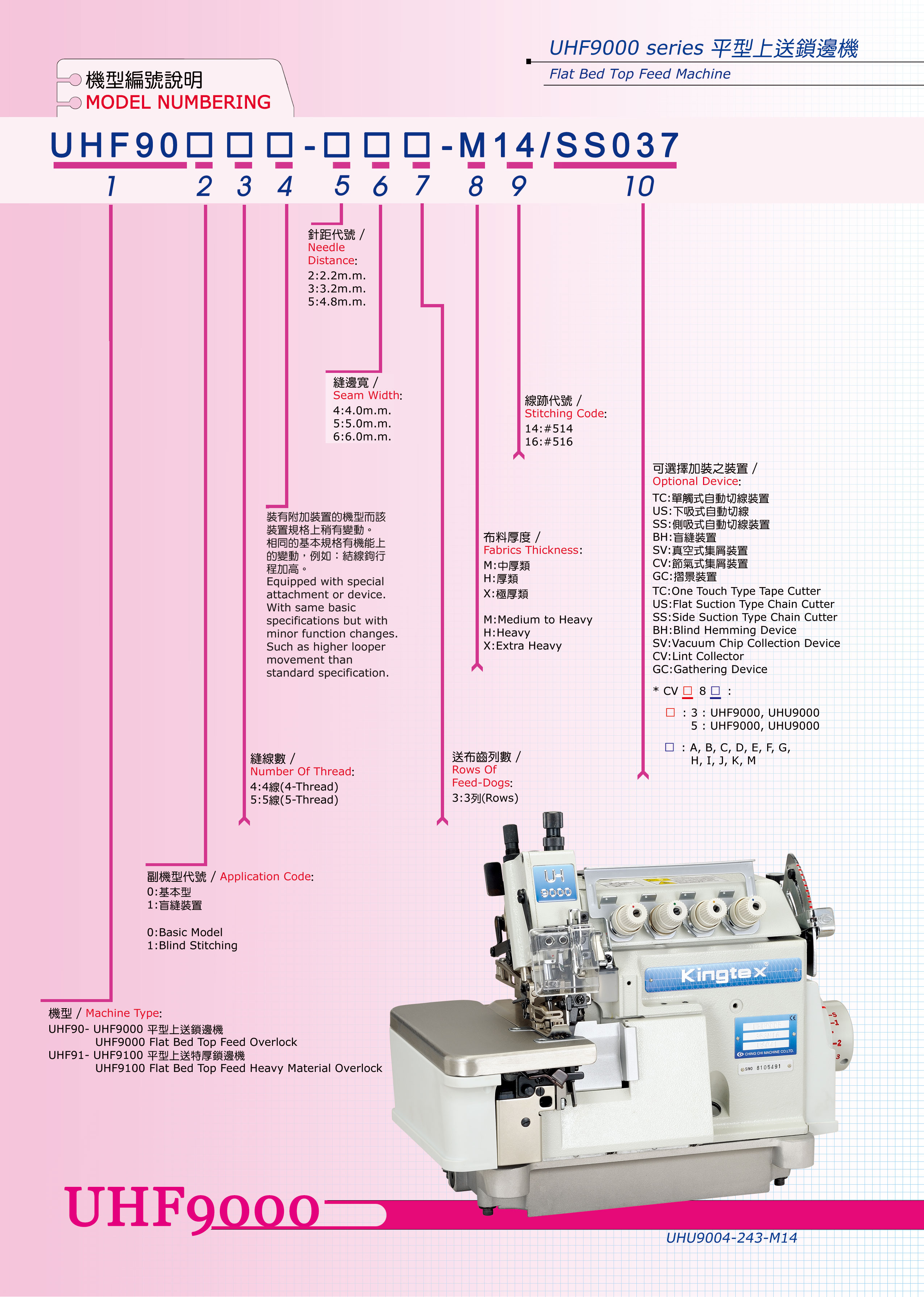

UHF90 : UHF9000 Flat Bed Top Feed Overlock
UHF91 : UHF9100 Flat Bed Top Feed Heavy Material Overlock
UHU91 : UHU9100 Direct Drive Type Flat Bed Top Feed Heavy Material Overlock
UHF90 : UHF9000 Flat Bed Top Feed Overlock
UHF91 : UHF9100 Flat Bed Top Feed Heavy Material Overlock
2 Application Code :
0 : Basic Model
1 : Blind Stitching
1 : Blind Stitching
3 Number Of Thread :
3 : (3-Thread)
4 : (4-Thread)
5 : (5-Thread)
4 : (4-Thread)
5 : (5-Thread)
4 Equipped with special attachment or device.
With same basic specifications but with minor function changes.
Such as higher looper movement than standard specification.
5 Needle Distance :
0 : 0.
2 : 2.2m.m.
3 : 3.2m.m.
5 : 4.8m.m.
2 : 2.2m.m.
3 : 3.2m.m.
5 : 4.8m.m.
6 Seam Width :
3 : 3.0m.m.
4 : 4.0m.m.
5 : 5.0m.m.
6 : 6.0m.m.
4 : 4.0m.m.
5 : 5.0m.m.
6 : 6.0m.m.
7 Rows Of Feed-Dogs :
2 : 2 Row
3 : 3 Row
3 : 3 Row
8 Fabrics Thickness :
M : Medium to Heavy
X : Extra Heavy
L : Light
H : Heavy
X : Extra Heavy
L : Light
H : Heavy
9 Stitching Code :
04 : #504
05 : #505
14 : #514
16 : #516
05 : #505
14 : #514
16 : #516
10 AC Servo Motor ( for UHU9000 series):
H HOHSING
P Power Max
Q Qixing
R RUPU
G Strong H
P Power Max
Q Qixing
R RUPU
G Strong H
11 Optional Device :
TC : One Touch Type Tape Cutter
US : Flat Suction Type Chain Cutter (UHF9000, UHU9000)
SS : Side Suction Type Chain Cutter
BH : Blind Hemming Device
SV : Vacuum Chip Collection Device
CV : Lint Collector
* CV 0 8 □ :
3 : UH9000, UHD9000
5 : UH9000, UHD9000
□ : A, B, C, D, E, F, G, H, I, J, K, M
GC : Gathering Device (UHF9000, UHU9000)
US : Flat Suction Type Chain Cutter (UHF9000, UHU9000)
SS : Side Suction Type Chain Cutter
BH : Blind Hemming Device
SV : Vacuum Chip Collection Device
CV : Lint Collector
* CV 0 8 □ :
3 : UH9000, UHD9000
5 : UH9000, UHD9000
□ : A, B, C, D, E, F, G, H, I, J, K, M
GC : Gathering Device (UHF9000, UHU9000)
