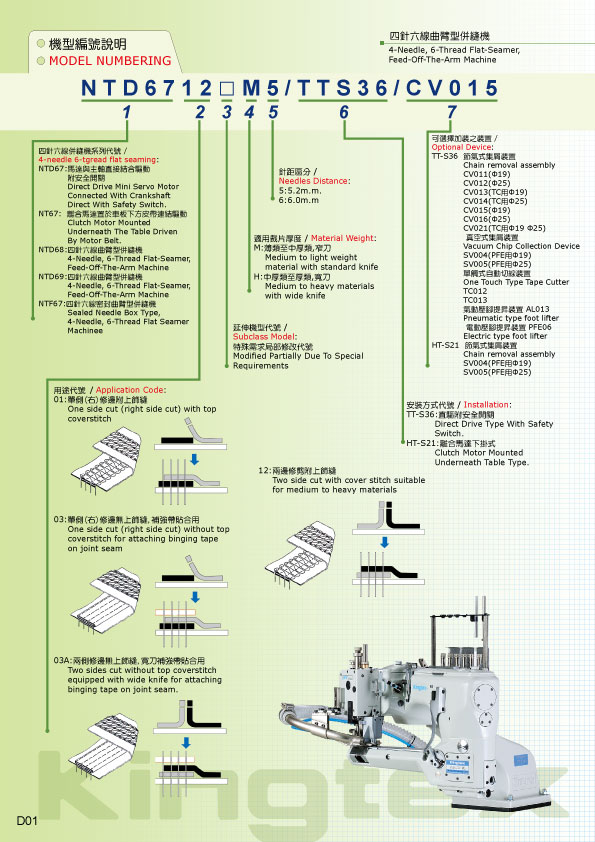

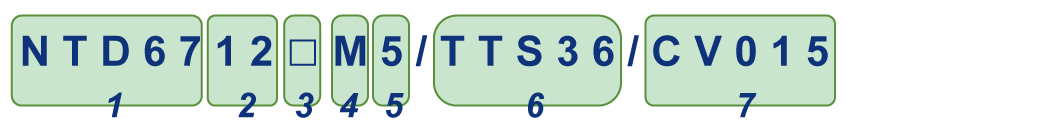

1   4-needle 6-tgread flat seaming :

NTD67 : Direct Drive Mini Servo Motor Connected With Crankshaft Direct With Safety Switch
NT67 : Clutch Motor Mounted Underneath The Table Driven By Motor Belt
NTD68 : 4-Needle, 6-Thread Flat-Seamer, Feed-Off-The-Arm Machine
NTD69 : 4-Needle, 6-Thread Flat-Seamer, Feed-Off-The-Arm Machine
NTF67 : Sealed Needle Box Type, 4-Needle, 6-Thread Flat Seamer Machinee

2   Application Code :

01 : One side cut (right side cut) with top coverstitch


03 : One side cut (right side cut) without top coverstitch for attaching binging tape on joint seam


03A : Two sides cut without top coverstitch, equipped with wide knife for attaching binging tape on joint seam


12 : Two side cut with cover stitch suitable for medium to heavy materials

3  Subclass Model :

Modified Partially Due To Special Requirements

4  Material Weight :

M : Medium to light weight materials with standard knife
H : Medium to heavy materials with wide knife.

5  Shape Of Needle Plate Tongue :

52 : 52m.m.
60 : 60m.m.

6   Installation :

TT-S36 : Direct Drive Type With Safety Switch
HT-S21 : Clutch Motor Mounted Underneath Table Type

7   Optional Device :

TT-S36 Chain removal assembly
CV011(Φ19)
CV012(Φ25)
CV013(TC for Φ19)
CV014(TC for Φ25)
CV015(Φ19)
CV016(Φ25)
CV021(TC for Φ19 Φ25)
Vacuum Chip Collection Device
SV004(PFE for Φ19)
SV005(PFE for Φ25)
One Touch Type Tape Cutter
TC012
TC013
AL013 Pneumatic type foot lifter
PFE06 Electric type foot lifter
HT-S21 Chain removal assembly
SV004(PFE for Φ19)
SV005(PFE for Φ25)
