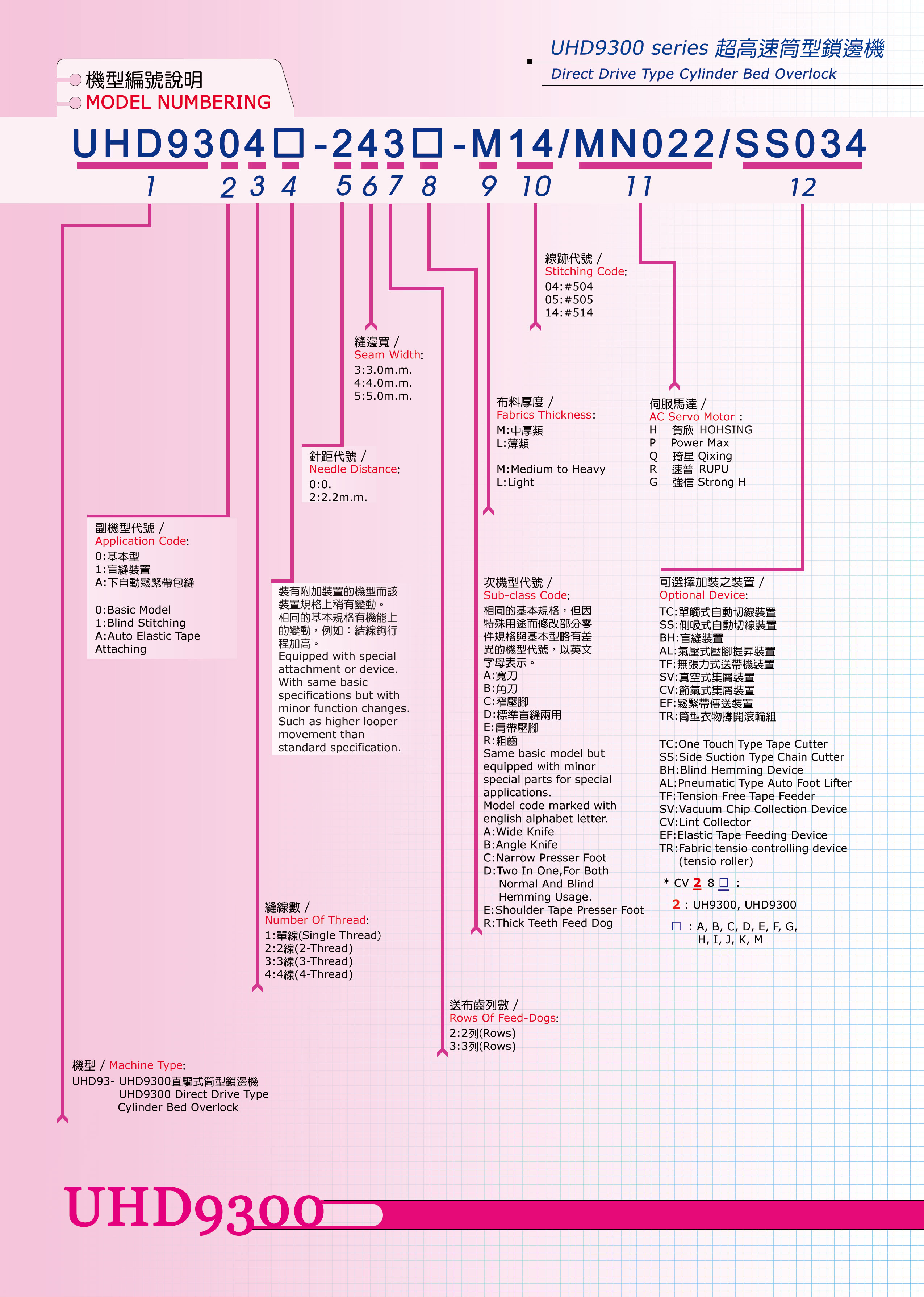

1 Machine Type :
UHD93 : UHD9300 Direct Drive Type Cylinfer Bed Overlock
2 Application Code :
0 : Basic Model
1 : Blind Stitching
A : Auto Elastic Tape Attaching
1 : Blind Stitching
A : Auto Elastic Tape Attaching
3 Number Of Thread :
1 : (Single Thread)
2 : (2-Thread)
3 : (3-Thread)
4 : (4-Thread)
2 : (2-Thread)
3 : (3-Thread)
4 : (4-Thread)
4 Equipped with special attachment or device.
With same basic specifications but with minor function changes.
Such as higher looper movement than standard specification.
5 Needle Distance :
0 : 0.
2 : 2.2m.m.
2 : 2.2m.m.
6 Seam Width :
3 : 3.0m.m.
4 : 4.0m.m.
5 : 5.0m.m.
4 : 4.0m.m.
5 : 5.0m.m.
7 Rows Of Feed-Dogs :
2 : 2 Row
3 : 3 Row
3 : 3 Row
8 Sub-class Code :
Same basic model but equipped with minor special parts for special applications.
Model code marked with english alphabet letter.
A : Wide Knife.
C : Narrow Presser Foot
E : Shoulder Tape Presser Foot
Model code marked with english alphabet letter.
A : Wide Knife.
C : Narrow Presser Foot
E : Shoulder Tape Presser Foot
9 Fabrics Thickness :
M : Medium to Heavy
L : Light
L : Light
10 Stitching Code :
04 : #504
05 : #505
14 : #514
05 : #505
14 : #514
11 AC Servo Motor :
H HOHSING
P Power Max
Q Qixing
R RUPU
G Strong H
P Power Max
Q Qixing
R RUPU
G Strong H
12 Optional Device :
TC : One Touch Type Tape Cutter
SS : Side Suction Type Chain Cutter
BH : Blind Hemming Device
AL : Pneumatic Type Presser FootComponents
TF : Tension Free Tape Feeder
SV : Vacuum Chip Collection Device
CV : Lint Collector
* CV 2 8 □ :
2 : UH9300, UHD9300
□ : A, B, C, D, E, F, G, H, I, J, K, M
EF : Elastic Tape Attaching
TR : Fabric tensio controlling device (tensio roller)
SS : Side Suction Type Chain Cutter
BH : Blind Hemming Device
AL : Pneumatic Type Presser FootComponents
TF : Tension Free Tape Feeder
SV : Vacuum Chip Collection Device
CV : Lint Collector
* CV 2 8 □ :
2 : UH9300, UHD9300
□ : A, B, C, D, E, F, G, H, I, J, K, M
EF : Elastic Tape Attaching
TR : Fabric tensio controlling device (tensio roller)
